Panasonic MHMD082G1V MINAS A5 High Inertia Servo Motor 800W 200V for Industrial Automation

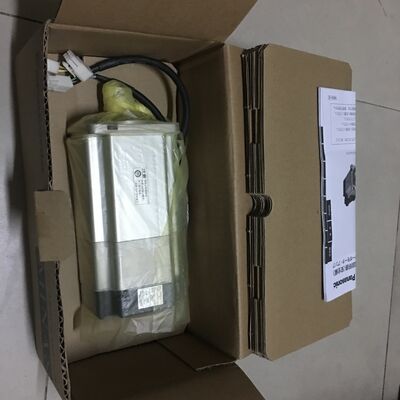

Large Image : Panasonic MHMD082G1V MINAS A5 High Inertia Servo Motor 800W 200V for Industrial Automation

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMD082G1V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MHMD082G1V MINAS A5 High Inertia Servo Motor 800W 200V for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 750W AC servo motor , Panasonic AC servo motor driver , 750W servo motor with warranty

Panasonic MHMD082G1V MINAS A5 High Inertia Servo Motor, 800W, 200V

The Panasonic MHMD082G1V is a robust, middle-capacity AC brushless servo motor from the renowned MINAS A5 series. Delivering a versatile 800W (0.8kW) of power, this motor is specifically engineered with a High Inertia rotor to provide superior control and stability in applications with high load-to-rotor inertia ratios. Equipped with a high-resolution 20-bit encoder and a rugged IP65 enclosure, the MHMD082G1V is a reliable solution for heavy-duty industrial automation requiring smooth motion and high torque density.

Key Performance Advantages

High Inertia for Stability: Specifically balanced to handle larger mechanical loads without vibration, significantly reducing tuning complexity and mechanical resonance.
20-bit High-Resolution Feedback: Features a 20-bit incremental/absolute encoder (1,048,576 pulses/rev) for precision positioning and exceptionally smooth low-speed performance.
Rapid Response Technology: With a 2.0 kHz frequency response bandwidth, the MINAS A5 series ensures fast command tracking and minimal settling times.
Industrial Grade Durability: Rated IP65 (excluding the shaft) to ensure reliable operation in harsh factory environments involving dust, vibration, and light moisture.
Consistent Torque Delivery: Provides a rated torque of 2.39 N*m, with peak stall torque reaching up to 7.16 N*m for demanding acceleration and deceleration cycles.

Technical Specifications

Key Parameter	Specification
Manufacturer	Panasonic
Model Number	MHMD082G1V
Series	MINAS A5 (Middle Capacity)
Rated Output	800 W (0.8 kW)
Rated Torque	2.39 N*m
Peak Stall Torque	7.16 N*m
Rated Speed	3000 rpm
Maximum Speed	4500 rpm
Input Voltage	200 VAC
Inertia Type	High Inertia
Encoder Type	20-bit Incremental/Absolute

MHMD082G1V Part Number Breakdown

Correct identification is vital for exact replacements:

MHMD: High Inertia Type (Middle Capacity A5 Series)
08: 800W (0.8kW) Rated Power Output
2: 200V AC Input Voltage
G: 20-bit Incremental/Absolute Encoder
1: Standard Design Sequence
V: Specific technical suffix indicating the shaft end configuration and lead wire variant

Targeted Industrial Applications

The high-inertia design of the MHMD082G1V makes it ideal for:

Metal Processing: Accurate feeding for press machinery and metal bending
CNC Machine Tools: Reliable feed axes for milling and lathes with heavy tables
Automated Palletizing: High-speed material handling for heavy payloads
Packaging Machinery: Vertical form-fill-seal (VFFS) and conveyor synchronization
