Panasonic MHME102GCGM MINAS A5 High Inertia Servo Motor 1kW 200V

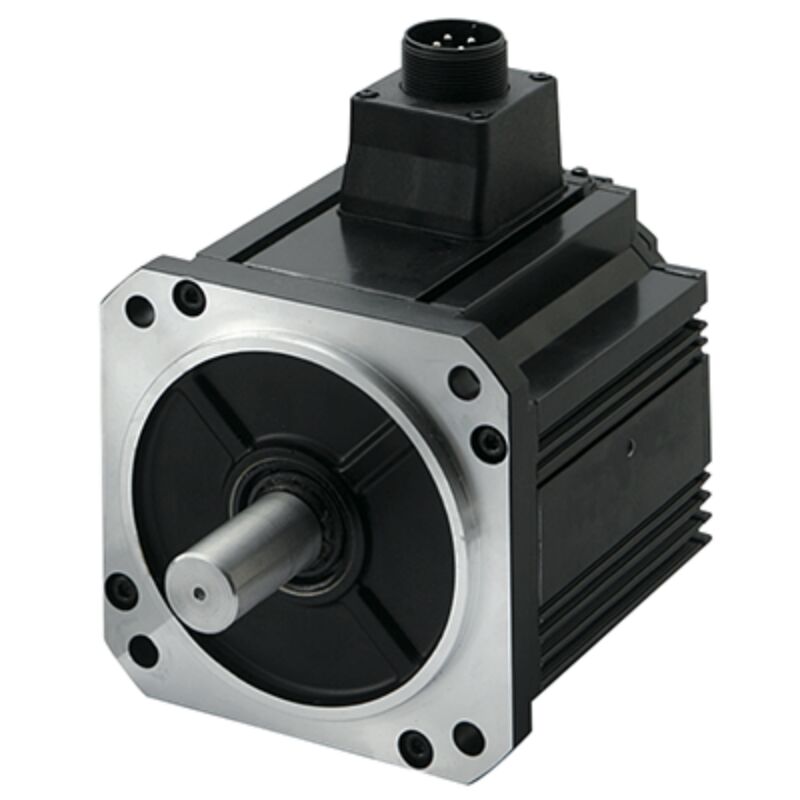

Large Image : Panasonic MHME102GCGM MINAS A5 High Inertia Servo Motor 1kW 200V

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL
Model Number:	MHME102GCGM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

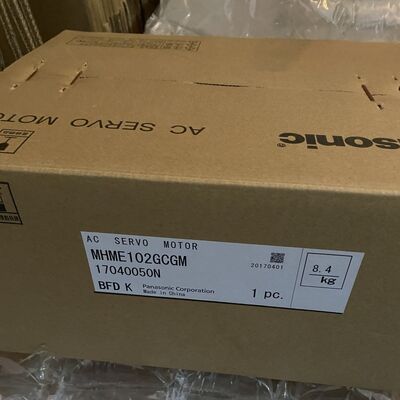

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MHME102GCGM MINAS A5 High Inertia Servo Motor 1kW 200V

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx	Application:	Application
Certificate:	CE UL
Highlight:	Panasonic 1KW AC servo motor , Panasonic servo motor with driver , 1KW AC servo motor driver

Panasonic MHME102GCGM MINAS A5 High Inertia Servo Motor 1kW 200V

Panasonic MHME102GCGM MINAS A5 High Inertia Servo Motor | 1.0kW, 200V

The Panasonic MHME102GCGM is a high-performance, middle-capacity AC brushless servo motor from the legendary MINAS A5 series. Delivering a consistent 1000W (1.0kW) of power, this motor is specifically engineered with a High Inertia rotor to provide maximum stability when driving heavy mechanical loads. Equipped with a high-resolution 20-bit encoder and a rugged IP65-rated enclosure, the MHME102GCGM is a reliable workhorse for precision industrial automation and heavy-duty machinery.

Key Performance Advantages

High Inertia for Load Stability: Specifically designed for applications with high load-to-rotor inertia ratios, preventing mechanical resonance and ensuring smooth motion in large-scale systems.
20-bit High-Resolution Feedback: Features a 20-bit incremental/absolute encoder (1,048,576 pulses/rev), providing the precision needed for complex positioning and low-speed smoothness.
Fast Response Technology: With a 2.0 kHz frequency response bandwidth, the MINAS A5 series ensures rapid command tracking and minimal settling times.
Industrial Durability: Rated IP65 (excluding the shaft) to withstand vibration, dust, and light moisture in harsh factory environments.
High Torque Density: Delivers a rated torque of 4.77 N*m, with peak stall torque reaching up to 14.3 N*m for demanding acceleration and deceleration cycles.

Technical Specifications (Quick Reference)

Key Parameter	Specification
Manufacturer	Panasonic
Model Number	MHME102GCGM
Series	MINAS A5 (Middle Capacity)
Rated Output	1000 W (1.0 kW)
Rated Torque	4.77 N*m
Peak Stall Torque	14.3 N*m
Rated Speed	2000 rpm
Maximum Speed	3000 rpm
Input Voltage	200 VAC
Encoder Type	20-bit Incremental/Absolute
Shaft Design	Straight Shaft with Keyway (G-type)

MHME102GCGM Part Number Breakdown

Ensuring an exact match is critical for A5 series replacements:

MHME: High Inertia Type (Middle Capacity A5 Series).
10: 1.0 kW (1000W) Rated Power Output.
2: 200V AC Input Voltage.
G: 20-bit Incremental/Absolute Encoder.
C: Design Revision Sequence.
G: Straight Shaft with Keyway and Center Tap.
M: Specific Hardware/Lead Wire Variant.

Targeted Industrial Applications

The high-inertia design and 1kW power of the MHME102GCGM make it ideal for:

CNC Milling & Lathes: Precise control for heavy-duty feed axes.
Automated Palletizers: High-speed material handling for heavy payloads.
Metal Processing: Accurate feeding for press and bending machinery.
Textile & Printing: Large-scale commercial rollers requiring stable tension control.
