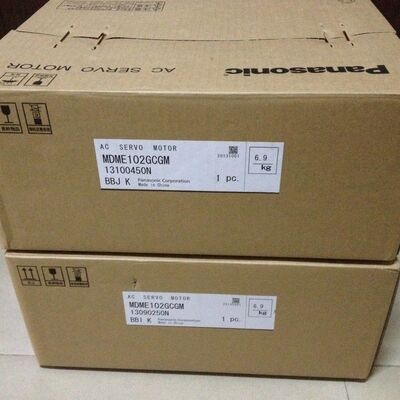

Panasonic MDME102GCGM MINAS A5 Servo Motor | 1kW, 200V, High Inertia

Panasonic MDME102GCGM MINAS A5 Servo Motor | 1kW, 200V, High Inertia

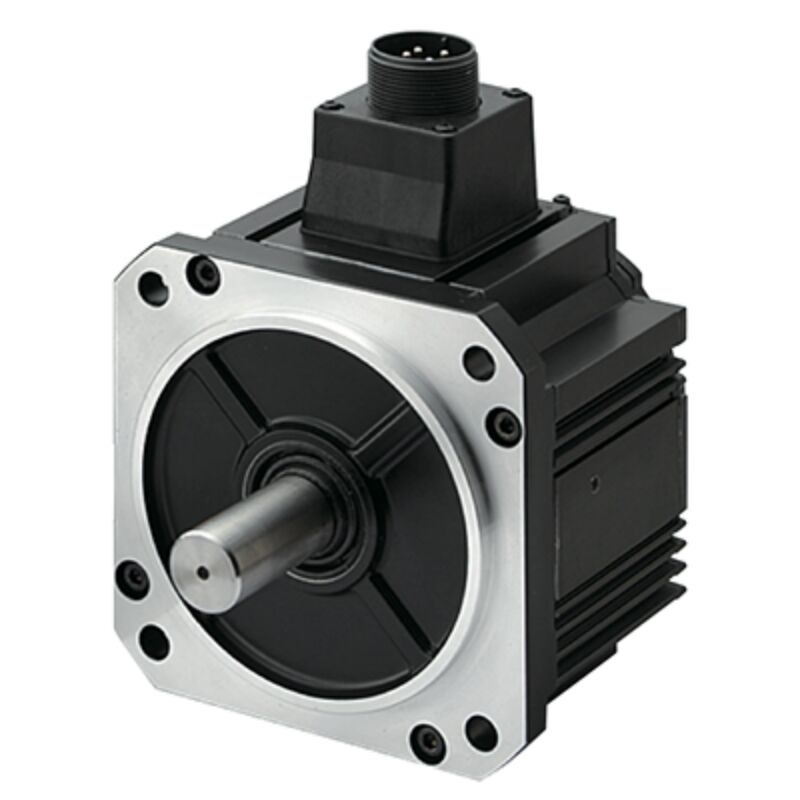

The Panasonic MDME102GCGM is a high-capacity, high-inertia AC brushless servo motor from the rugged MINAS A5 series. Engineered for maximum stability under heavy loads, this 1000W (1kW) motor is the industry standard for large-scale automation, offering a perfect balance of raw power and sophisticated 20-bit precision. Whether for a new system or an exact replacement, the MDME102GCGM ensures minimal vibration and maximum machine uptime.

Why the MDME102GCGM is the Professional’s Choice:

• High Inertia Performance: Specifically designed to drive high-mass mechanical loads with superior stability and reduced resonance.
• Ultra-High Resolution: Equipped with a 20-bit incremental/absolute encoder (1,048,576 pulses/rev) for buttery-smooth motion and sub-micron positioning.
• Rapid Command Response: 2.0 kHz frequency response bandwidth allows for faster machine cycles and increased productivity.
• IP67 Environmental Protection: Features advanced oil seals and a fully sealed enclosure, making it suitable for harsh environments with oil, dust, or moisture.
• Energy Efficient: Optimized magnetic circuit design reduces heat generation and energy consumption.

Technical Specifications (Quick Reference)

MDME102GCGM Part Number Decoding

Ensure this is the exact match for your machine requirements:

• MDME: High Inertia Type (Middle-Large Capacity).
• 10: 1.0 kW Power Output.
• 2: 200V AC Input.
• G: 20-bit Incremental/Absolute Encoder.
• C: Design Revision.
• G: Straight shaft with keyway and center tap.
• M: Specific series or hardware variant (Check datasheet for exact M-type detail).

Typical Applications

• Heavy-Duty CNC Machining: Large milling machines and lathes.
• Industrial Robotics: Heavy-payload robotic arms and transfer units.
• Metalworking: Press feeders and high-torque bending machines.
• Printing & Converting: Large-scale commercial printing presses and unwinding stations.
