Panasonic MHMJ022G1V MINAS A5 Series 200W AC Servo Motor with High Inertia and IP65 Rating

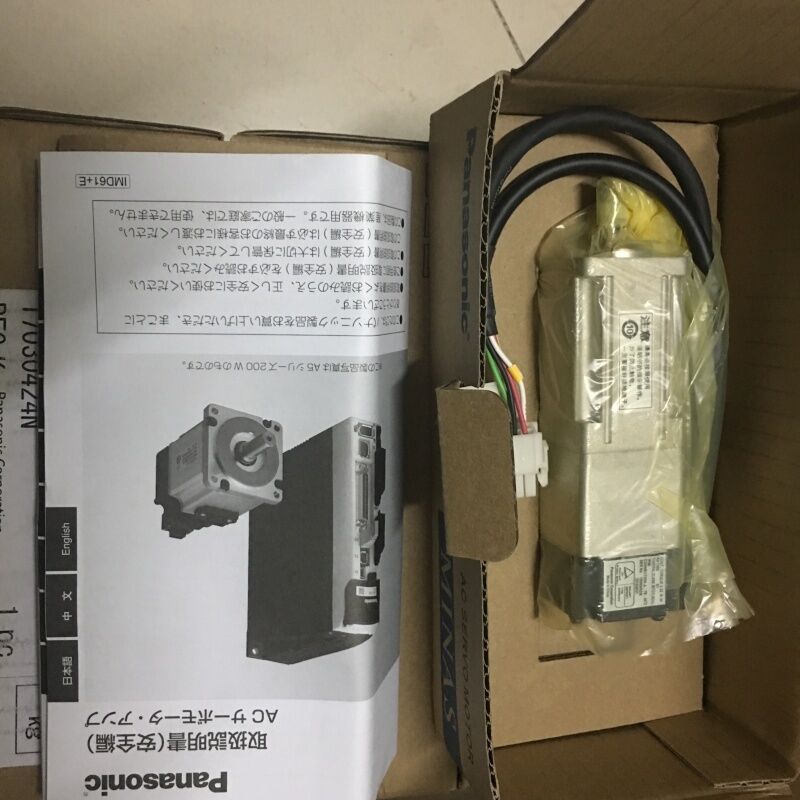

Large Image : Panasonic MHMJ022G1V MINAS A5 Series 200W AC Servo Motor with High Inertia and IP65 Rating

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMJ022G1V

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MHMJ022G1V MINAS A5 Series 200W AC Servo Motor with High Inertia and IP65 Rating

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 200W servo motor , AC servo motor with brake , MHMJ022G1V servo motor

Panasonic MHMJ022G1V MINAS A5 Series AC Servo Motor

Panasonic MHMJ022G1V MINAS A5 200W AC servo motor. 200V, 3000 RPM, 0.64 N*m torque, high inertia, IP65, with brake.

Special Order Product Notice: This is designated as a "Special Order Product." Please avoid distributing the motor or equipment containing the motor to Japan or other regions through Japan.

Product Overview

The Panasonic MHMJ022G1V is a high-performance AC servo motor from Panasonic's MINAS A5 Family. This 200W (0.2kW) model features a high inertia rotor design and is equipped with a holding brake and oil seal, making it particularly suitable for vertical axis applications requiring position holding when power is removed.

Key Technical Specifications

Parameter	Value
Manufacturer	Panasonic
Series	MINAS A5 Family / MHMJ Series
Part Status	Discontinued (End of Life) - July 31, 2022
Product Type	AC Servo Motor
Inertia Type	High Inertia
Flange Size	60 mm square
Motor Lead-out Configuration	Lead wire type
Special Order Product	Yes - do not distribute to Japan
RoHS	Compliant (EU RoHS Directive 2011/65/EU & 2015/863/EU)

Power & Torque

Parameter	Value
Rated Power	200 W (0.2 kW)
Rated Torque	0.64 N*m
Momentary Max. Peak Torque	1.91 N*m (approx. 300% overload)
Rated Speed	3000 r/min (RPM)
Maximum Speed	5000 r/min (RPM)
Power Supply Capacity	0.5 kVA

Electrical Specifications

Parameter	Value
Voltage Rating	200 VAC
Rated Current	1.6 A (rms)
Max. Current	6.9 A (o-p)
Encoder Type	20-bit Incremental system
Encoder Resolution	1,048,576 pulses/rev

Mechanical Specifications

Parameter	Value
Rotor Inertia	0.45 × 10⁻⁴ kg*m²
Recommended Inertia Ratio	30 times or less
Holding Brake	With (24V DC)
Oil Seal	With
Shaft Type	Key-way, center tap
Mass (Weight)	1.4 kg
Protection Class	IP65 (excluding rotating portion of output shaft and leadwire end)

Core Features & Benefits

High Inertia Design

The MHMJ022G1V features a high inertia rotor (0.45 × 10⁻⁴ kg*m²), specifically optimized for applications requiring stable control with high load inertia ratios. The recommended load inertia ratio is up to 30 times the rotor inertia.

Built-in Holding Brake

Equipped with a 24V DC holding brake (static friction torque: 1.27 N*m or more), this motor is ideal for vertical axis applications where the load must be held in position when the servo is disabled. The brake releases when energized.

300% Overload Capacity

With a peak torque of 1.91 N*m (300% of rated torque), this motor handles demanding acceleration requirements and sudden load fluctuations without stalling.

High-Resolution Feedback

The 20-bit incremental encoder provides 1,048,576 pulses per revolution resolution, enabling precise position and speed control for demanding automation applications.

IP65 Environmental Protection

Rated IP65 (excluding rotating portion of output shaft and leadwire end), the motor is protected against dust ingress and low-pressure water jets, ensuring reliable operation in demanding industrial environments.

Oil Seal Included

The oil seal prevents lubricant ingress, making the motor suitable for gearbox or pulley-coupled applications.

Wide Speed Range

Capable of operation from standstill up to 5000 RPM maximum speed, making it suitable for both high-speed machining and low-speed positioning applications.

Applications

The Panasonic MHMJ022G1V is engineered for demanding industrial automation applications requiring high inertia performance and holding brake functionality:

Vertical Axis Applications: Lifting/lowering mechanisms, elevators, and Z-axis stages where position holding is critical
Robotics: Small robotic arms and articulated joints requiring precise positioning
Pick-and-Place Machines: High-speed component placement with vertical holding requirements
CNC Machines: Small CNC routers, engraving machines, and tool changers
Packaging Machinery: Wrapping, filling, and labeling equipment requiring precise torque control
Textile Machinery: Spinning, winding, and yarn tension control systems
Medical Equipment: Diagnostic and laboratory automation equipment
Semiconductor Manufacturing: Wafer handling and inspection equipment
General Automation: Assembly line indexers and positioning stages

Frequently Asked Questions (FAQ)

Q: Is the Panasonic MHMJ022G1V still in production?

A: No, this model is discontinued (End of Life) as of July 31, 2022.

Q: What driver is compatible with MHMJ022G1V?

A: Compatible drivers include MADHT1507, MADKT1507, and their variants (A5 series, A5E series, A5Ⅱ series, A5ⅡE series, A5ⅡN series). All are also discontinued.

Q: What is the inertia type of this motor?

A: The MHMJ022G1V is a high inertia type motor, designed for applications with high load inertia ratios (recommended up to 30:1).

Q: Does this motor have a holding brake?

A: Yes, this model includes a holding brake (24V DC). The "V" suffix in the model number indicates with brake.

Q: Is the motor IP65 rated?

A: Yes, IP65 protection rating (excluding rotating portion of output shaft and leadwire end).
