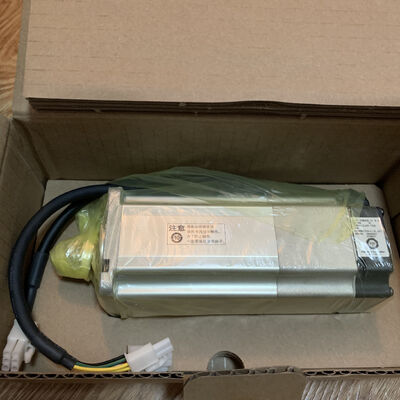

Panasonic MHMJ082G1U MINAS A5 Servo Motor | 750W, 3000 rpm, 20-bit Encoder, IP65, High Inertia

Panasonic MHMJ082G1U MINAS A6 High Inertia Servo Motor | 800W, 200V

The Panasonic MHMJ082G1U is a cutting-edge AC brushless servo motor from the flagship MINAS A6 series. Specifically engineered for high-inertia applications, this 800W motor provides exceptional stability and control when driving heavy mechanical loads. With a 23-bit absolute encoder and a compact, lightweight design, the MHMJ082G1U is the professional choice for reducing machine cycle times while maintaining sub-micron accuracy.

Why Choose the MINAS A6 MHMJ082G1U?

• High Inertia Compatibility: Optimized for systems with high load-to-rotor inertia ratios, ensuring smooth motion without mechanical resonance.
• Ultra-High 23-bit Resolution: Equipped with a 23-bit absolute encoder (8,388,608 pulses/rev) for incredibly smooth rotation and precise positioning.
• Industry-Leading Response: Features a 3.2 kHz frequency response bandwidth, allowing for rapid acceleration and minimal settling time.
• Compact & Powerful: 30% smaller and 20% lighter than previous generations while delivering 2.39 N·m of rated torque.
• Advanced Environmental Protection: Rated IP67 (excluding shaft) with a high-durability oil seal, making it ideal for harsh industrial environments.

Technical Specifications (Quick Reference)

MHMJ082G1U Part Number Breakdown

Ensure this configuration matches your specific machinery:

1. MHMJ: High Inertia Type (MINAS A6 Series).
2. 08: 800W (0.8kW) Rated Power.
3. 2: 200V AC Input Voltage.
4. G: 23-bit Absolute/Incremental Encoder.
5. 1: Standard Design Sequence.
6. U: Specific Shaft End Detail (Refer to datasheet for exact U-type mechanical specs).

Targeted Industrial Applications

The high stability of the MHMJ082G1U makes it a top-tier choice for:

• Industrial Robotics: Heavy-duty pick-and-place and articulated arm joints.
• Material Handling: Automated guided vehicles (AGVs) and high-speed conveyors.
• Packaging Systems: Vertical form-fill-seal and high-torque capping machines.
• Textile Manufacturing: Precision tension control and winding.
