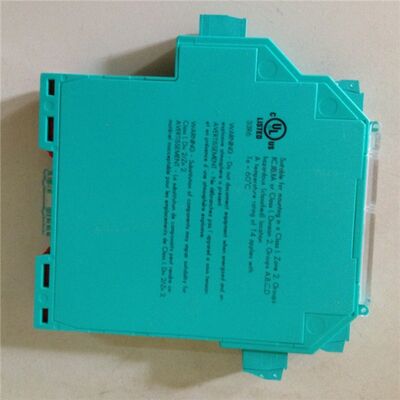

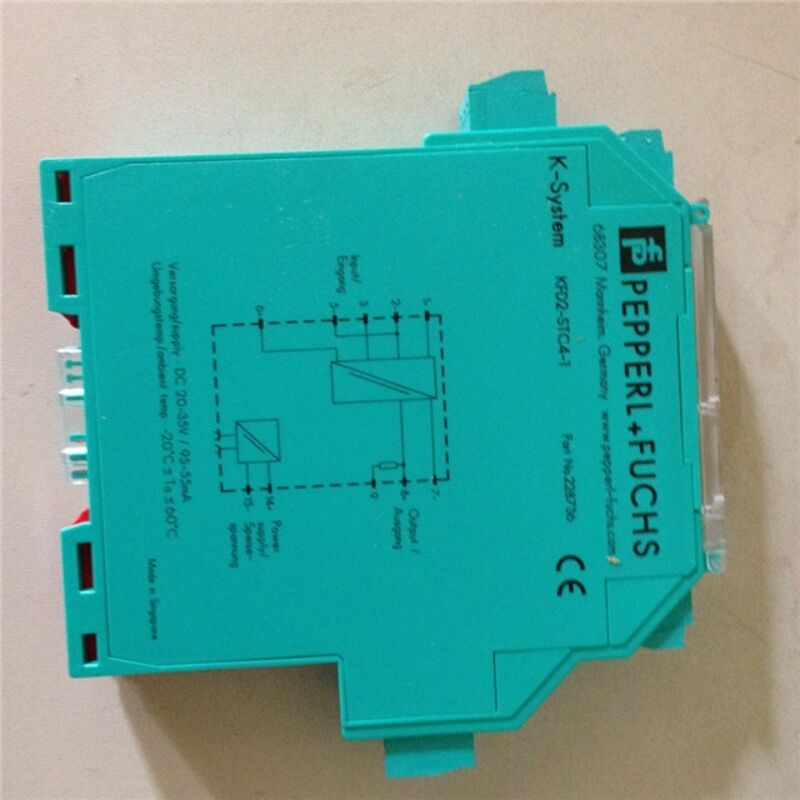

PEPPERL+FUCHS Safety Barrier SMART Transmitter Power Supply KCD2-STC-Ex1

Large Image : PEPPERL+FUCHS Safety Barrier SMART Transmitter Power Supply KCD2-STC-Ex1

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KCD2-STC-Ex1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

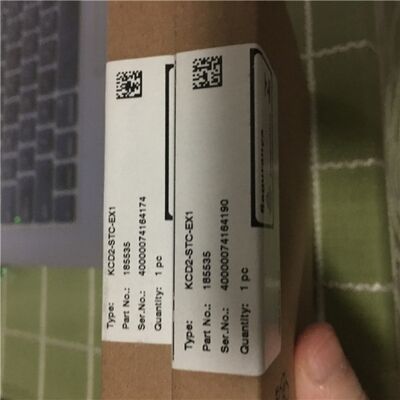

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Safety Barrier SMART Transmitter Power Supply KCD2-STC-Ex1

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	PEPPERL+FUCHS safety barrier transmitter , intrinsic safety barrier power supply , KCD2-STC-Ex1 SMART transmitter

PEPPERL+FUCHS Safety Barrier SMART Transmitter Power Supply KCD2-STC-Ex1

Type: 1-channel isolated barrier

Power Supply: 24 V DC (Power Rail)

Input: 2-wire SMART transmitters and current sources

Output: 4 mA ... 20 mA or 1 V ... 5 V

Housing Width: 12.5 mm

Safety Rating: Up to SIL 2 (SC 3) acc. to IEC/EN 61508

Function

This isolated barrier is designed for intrinsic safety applications in hazardous areas. The device supplies 2-wire SMART transmitters and can also be used with 2-wire SMART current sources. It transfers the analog input signal to the safe area as an isolated current value.

Digital signals may be superimposed on the input signal in either hazardous or safe areas and are transferred bi-directionally. Selectable output modes including current source, sink mode, or voltage output are available via DIP switches.

When HART communication resistance in the loop is insufficient, the internal 250 Ω resistance between terminals 6 and 8 can be utilized. Test sockets for connecting HART communicators are integrated into the device terminals for convenient testing and configuration.

Application

This safety barrier supports the following SMART protocols:

HART
BRAIN
