PEPPERL+FUCHS Safety Barrier KFD0-SD2-Ex1.1045

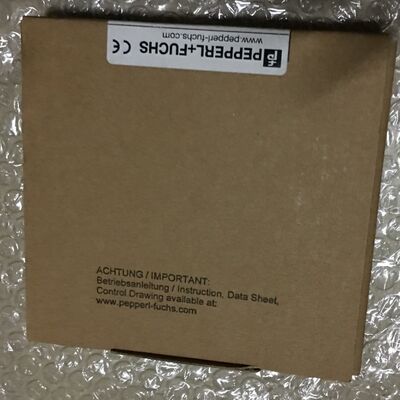

Large Image : PEPPERL+FUCHS Safety Barrier KFD0-SD2-Ex1.1045

Product Details:

Place of Origin:	PEPPERL+FUCHS
Brand Name:	PEPPERL+FUCHS
Model Number:	KFD0-SD2-Ex1.1045

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original brand new
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Safety Barrier KFD0-SD2-Ex1.1045

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	PEPPERL+FUCHS intrinsic safety barrier , KFD0-SD2-Ex1.1045 safety barrier , explosion-proof intrinsic safety barrier

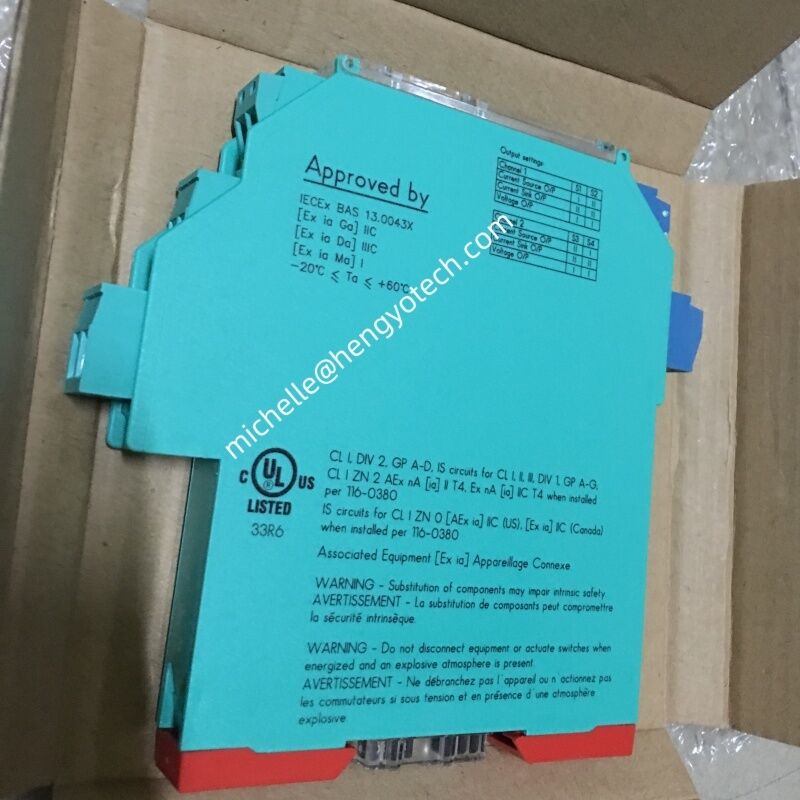

PEPPERL+FUCHS Safety Barrier KFD0-SD2-Ex1.1045

Product Overview

The PEPPERL+FUCHS Solenoid Driver KFD0-SD2-Ex1.1045 is a 1-channel isolated barrier designed for intrinsic safety applications in hazardous areas. This loop-powered device provides reliable power to solenoids, LEDs, and audible alarms while ensuring safety compliance up to SIL 3 according to IEC/EN 61508 standards.

Key Specifications

Type	1-channel isolated barrier
Power Supply	24 V DC (loop powered)
Current Limit	45 mA at 10 V DC
Safety Rating	Up to SIL 3 according to IEC/EN 61508

Functional Description

This isolated barrier is specifically engineered for intrinsic safety applications in hazardous environments. The device supplies power to field devices such as solenoids, LEDs, and audible alarms located in classified areas. Operating on a loop-powered principle, the available energy at the output is derived directly from the input signal. The output features a resistive characteristic, meaning both output voltage and current are dependent on the connected load and input voltage. At maximum load capacity, the device delivers 10 V at 45 mA to support hazardous area applications.

Product Documentation
