2904618 Phoenix Contact Power Supply UPS QUINT4-PS/1AC/24DC/40/+ Power Supply 100 VAC- 240 VAC

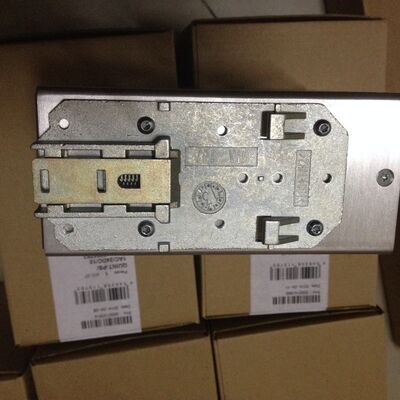

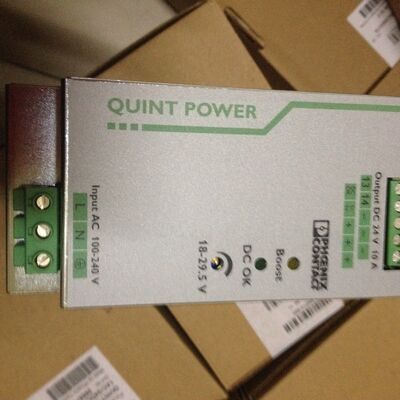

Large Image : 2904618 Phoenix Contact Power Supply UPS QUINT4-PS/1AC/24DC/40/+ Power Supply 100 VAC- 240 VAC

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT4-PS/1AC/24DC/40/+

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

2904618 Phoenix Contact Power Supply UPS QUINT4-PS/1AC/24DC/40/+ Power Supply 100 VAC- 240 VAC

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	QUINT4-PS/1AC/24DC/40/+ , 2904618 Phoenix Contact Power Supply , Phoenix Contact Power Supply 100 VAC

Phoenix Contact QUINT4-PS/1AC/24DC/40/+ - Power supply 2904618

Primary-switched QUINT POWER supply for DIN rail mounting, with selectable output characteristic curve and SFB (Selective Fuse Breaking) Technology, protective coating and integrated decoupling MOSFET, input: 1-phase, output: 24 V DC / 40 A

The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface.
The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.

Control input (configurable) Rem	Output power ON/OFF (SLEEP MODE)
Default	Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd)
AC operation
Network type	Star network
Input voltage	min. 77 V DC
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Derating	< 100 V AC (1 %/V)
Electric strength, max.	300 V AC 60 s
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	typ. 12 A (at 25 °C)
Inrush current integral (I²t)	< 0.3 A²s
Inrush current limitation	12 A (after 1 ms)
AC frequency range	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (f_N)	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (f_N)	16.7 Hz (acc. to EN 50163)
Mains buffering time	typ. 27 ms (120 V AC)
Mains buffering time	typ. 27 ms (230 V AC)
Current consumption	13.6 A (100 V AC)
	9.9 A (120 V AC)
	5.4 A (230 V AC)
	5.4 A (240 V AC)
Nominal power consumption	1072 VA
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Switch-on time	< 1 s
Typical response time	300 ms (from SLEEP MODE)
Input fuse	16 A (slow-blow, internal)
Recommended breaker for input protection	16 A ... 20 A (Characteristic B, C, D, K or comparable)
Discharge current to PE	< 3.5 mA
Discharge current to PE	1.7 mA (264 V AC, 60 Hz)
DC operation
Nominal input voltage range	110 V DC ... 250 V DC
Input voltage range	110 V DC ... 250 V DC -18 % ... +40 %
Derating	< 110 V DC (1 %/V)
Voltage type of supply voltage	DC
Current consumption	12 A (110 V DC)
Current consumption	5 A (250 V DC)
