Phoenix Contact QUINT4-PS/1AC/24DC/20 2904602 Power Supply

Phoenix Contact QUINT4-PS/1AC/24DC/20 2904602 Power Supply
Phoenix Contact QUINT4-PS/1AC/24DC/20 2904602 Power Supply Phoenix Contact QUINT4-PS/1AC/24DC/20 2904602 Power Supply

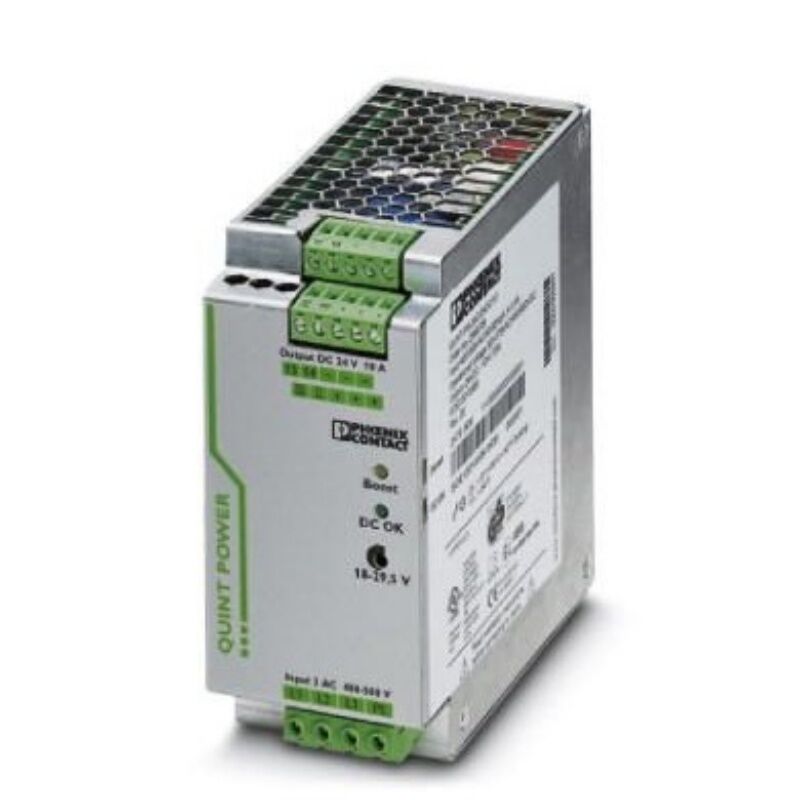

Large Image :  Phoenix Contact QUINT4-PS/1AC/24DC/20 2904602 Power Supply

Product Details:
Place of Origin: Thailand
Brand Name: Phoenix Contact
Model Number: QUINT4-PS/1AC/24DC/20
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

Phoenix Contact QUINT4-PS/1AC/24DC/20 2904602 Power Supply

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

Phoenix Contact QUINT4-PS/1AC/24DC/20

,

Phoenix QUINT4-PS/1AC/24DC/20

,

QUINT4-PS/1AC/24DC/20 2904602

Phoenix Contact QUINT4-PS/1AC/24DC/20 Power supply 2904602
Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/20 A
The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface.
The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.
Control input (configurable) Rem Output power ON/OFF (SLEEP MODE)
Default Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd)
AC operation
Network type Star network
Nominal input voltage range 100 V AC ... 240 V AC
Input voltage range 100 V AC ... 240 V AC -15 % ... +10 %
Derating < 100 V AC (1 %/V)
Electric strength, max. 300 V AC 60 s
Typical national grid voltage 120 V AC
230 V AC
Voltage type of supply voltage AC
Inrush current typ. 11 A (at 25 °C)
Inrush current integral (I2t) < 0.4 A2s
Inrush current limitation 11 A (after 1 ms)
AC frequency range 50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (fN) 50 Hz ... 60 Hz -10 % ... +10 %
16.7 Hz (acc. to EN 50163)
Mains buffering time typ. 28 ms (120 V AC)
typ. 29 ms (230 V AC)
Current consumption 6.8 A (100 V AC)
5.5 A (120 V AC)
2.8 A (230 V AC)
2.7 A (240 V AC)
Nominal power consumption 520 VA
Protective circuit Transient surge protection; Varistor, gas-filled surge arrester
Power factor (cos phi) 0.98
Switch-on time < 1 s
Typical response time 300 ms (from SLEEP MODE)
Input fuse 12 A (slow-blow, internal)
Recommended breaker for input protection 10 A ... 16 A (Characteristic B, C, D, K or comparable)
Discharge current to PE < 3.5 mA
1.7 mA (264 V AC, 60 Hz)
DC operation
Nominal input voltage range 110 V DC ... 250 V DC
Input voltage range 110 V DC ... 250 V DC -18 % ... +40 %
Derating < 110 V DC (1 %/V)
Voltage type of supply voltage DC
Current consumption 6 A (110 V DC)
2.5 A (250 V DC)

Efficiency typ. 92.4 % (120 V AC)
typ. 94 % (230 V AC)
Output characteristic U/I Advanced
Smart HICCUP
FUSE MODE
Nominal output voltage 24 V DC
Setting range of the output voltage (USet) 24 V DC ... 29.5 V DC (constant capacity)
Nominal output current (IN) 20 A
Static Boost (IStat.Boost) 25 A
Dynamic Boost (IDyn.Boost) 30 A (5 s)
Selective Fuse Breaking (ISFB) 120 A (15 ms)
Magnetic circuit breaker tripping A1...A16 / B2...B13 / C1...C6 / Z1...Z16
Derating > 60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance ≤ 35 V DC
Protection against overvoltage at the output (OVP) ≤ 32 V DC
Control deviation < 0.5 % (Static load change 10 % ... 90 %)
< 4 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %)
Residual ripple < 50 mVPP (with nominal values)
Short-circuit-proof yes
No-load proof yes
Output power 480 W
600 W
720 W
Apparent power 660 VA (120 V, UOUT = 24 V, IOUT = stat. Boost)
644 VA (230 V, UOUT = 24 V, IOUT = stat. Boost)
Maximum no-load power dissipation < 5 W (120 V AC)
< 5 W (230 V AC)
Power loss nominal load max. < 40 W (120 V AC)
< 32 W (230 V AC)
Power dissipation SLEEP MODE < 5 W (120 V AC)
< 5 W (230 V AC)
Crest factor typ. 1.55 (120 V AC)
typ. 1.65 (230 V AC)
Rise time < 1 s (UOut = 10 % ... 90 %)
Connection in parallel yes, for redundancy and increased capacity
Connection in series yes
Fuse protection (secondary side) electronic
thermal-magnetic
thermal
Signal
Signal ground SGnd Reference potential for Out1, Out2, and Rem
Signal Out 1 (configurable)
Digital 24 V DC 20 mA
Default 24 V DC 20 mA 24 V DC for UOut > 0.9 x USet
Signal Out 2 (configurable)
Digital 24 V DC 20 mA
Analog 4 mA ... 20 mA ±5 % (Load ≤400 Ω)
Default 24 V DC 20 mA 24 V DC for POut < PN
Signal relay 13/14 (configurable)
Default closed (Uout > 0.9 USet)
Digital 24 V DC 1 A
30 V AC/DC 0.5 A

Input
Connection method Screw connection
Conductor cross-section, rigid min. 0.2 mm²
Conductor cross-section, rigid max. 6 mm²
Conductor cross-section flexible min. 0.2 mm²
Conductor cross-section flexible max. 4 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. 0.25 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max. 4 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. 0.25 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max. 4 mm²
Conductor cross-section AWG min. 24
Conductor cross-section AWG max. 10
Stripping length 8 mm
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm
Output
Connection method Screw connection
Conductor cross-section, rigid min. 0.2 mm²
Conductor cross-section, rigid max. 6 mm²
Conductor cross-section flexible min. 0.2 mm²
Conductor cross-section flexible max. 4 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. 0.25 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max. 4 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. 0.25 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max. 4 mm²
Conductor cross-section AWG min. 24
Conductor cross-section AWG max. 10
Stripping length 8 mm
Tightening torque, min 0.5 Nm
Tightening torque max 0.6 Nm
Signal
Connection method Push-in connection
Conductor cross-section, rigid min. 0.2 mm²
Conductor cross-section, rigid max. 1 mm²
Conductor cross-section flexible min. 0.2 mm²
Conductor cross-section flexible max. 1.5 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. 0.2 mm²
Single conductor/flexible terminal point with ferrule with plastic sleeve, max. 0.75 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. 0.2 mm²
Single conductor/flexible terminal point with ferrule without plastic sleeve, max. 1.5 mm²
Conductor cross-section AWG min. 24
Conductor cross-section AWG max. 16
Stripping length 8 mm

Types of signaling LED
Floating signal contact
Active signal output Out1 (digital, configurable)
Active signal output Out2 (analog, configurable)
Remote contact
Signal ground SGnd
Signal output
POut > 100 % (LED lights up yellow, output power > 480 W)
> 75 % (LED lights up green, output power > 360 W)
> 50 % (LED lights up green, output power > 240 W)
UOut > 0.9 x USet (LED lights up green)
< 0.9 x USet (LED flashes green)

Number of phases 1
Insulation voltage input/output 4 kV AC (type test)
2 kV AC (routine test)
Insulation voltage output / PE 0.5 kV DC (type test)
0.5 kV DC (routine test)
Insulation voltage input / PE 2.5 kV AC (type test)
2.4 kV AC (routine test)
Switching frequency 90.00 kHz ... 110.00 kHz (Auxiliary converter stage)
70.00 kHz ... 330.00 kHz (Main converter stage)
50.00 kHz ... 70.00 kHz (PFC stage)

Product family QUINT POWER
MTBF (IEC 61709, SN 29500) > 1112000 h (25 °C)
> 673000 h (40 °C)
> 309000 h (60 °C)
Environmental protection directive RoHS Directive 2011/65/EU
WEEE
Reach
Insulation characteristics
Protection class I
Degree of pollution 2
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 375000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 10 A
Temperature 40 °C
Time 436000 h
Additional text 230 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 267000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 25 °C
Time 364000 h
Additional text 230 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 94000 h
Additional text 120 V AC
Life expectancy (electrolytic capacitors)
Current 20 A
Temperature 40 °C
Time 128000 h
Additional text 230 V AC
