Tamagawa Rotary Incremental Encoders TS5212N556 Hollow Shaft Resolver

Large Image : Tamagawa Rotary Incremental Encoders TS5212N556 Hollow Shaft Resolver

Product Details:

Place of Origin:	Japan
Brand Name:	Tamagawa
Model Number:	TS5212N556

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Tamagawa Rotary Incremental Encoders TS5212N556 Hollow Shaft Resolver

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Tamagawa Incremental Encoders , Incremental Hollow Shaft Resolver , TS5212N556 Hollow Shaft Resolver

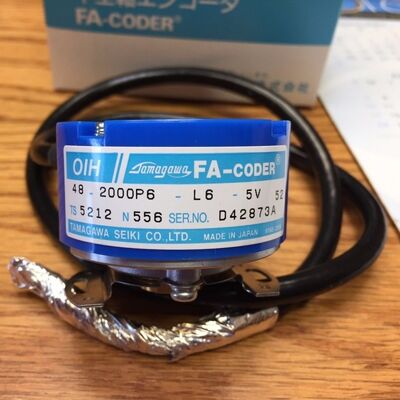

Incremental Encoders TS5212N556

A type that outputs a pulse train according to the rotational displacement of the shaft.

Hollow shaft Type

Model No.		TS52□□N3□□	TS52□□N5□□	TS52□□N4□□
Appearance
Series		OIH35	OIH48	OIH60
Outside Diameter		Φ35 mm	Φ48 mm	Φ60 mm
Moter Shaft Diameter		Φ6 mm	Φ8 mm	Φ20 mm
Resolution		500 to 6,000 C/T	1,000 to 12,000 C/T	1,000 to 8,192 C/T
Output Phase		A,B,Z,U,V,W Phase
Supply Voltage		DC +5 V
Consumption Current (NOTE1)		200 mA Max
Output Form		Line Driver
Maximum Response Frequency		200 kHz
Starting Torque		5.9×10^-3N⋅m (60 gf⋅cm Max)		9.8×10^-3N⋅m (100 gf⋅cm Max)
Moment of Inertia		1.0×10^-6kg･m² Max (10 g･cm²Max)		6.5×10^-6kg･m² Max (65 g･cm²Max)
Maximun Allowable Rotation		6,000 min^-1(rpm)
Allowable Shaft Load (NOTE2)	Radial	Mounting Tolerance 　Radial　0.05 mm TIR Max 　Axial　0.2 mm Max Shaft Inclination　0.1°Max
Allowable Shaft Load (NOTE2)	Axial
Mass (Excluding Cable)		0.2 kg Max	0.3 kg Max	0.5 kg Max
Protective Structure (NOTE3)		IP40 (Electronic Circuits Disclosed)	IP40
Operating Temp. Range		-20 to +85 °C
Vibration　(NOTE4)		49 m/s² (5G)
Shock　(NOTE5)		490 m/s² (50 G)	980 m/s² (100 G)

NOTE 1) Consumption Current: Specified value for an output circuit with no load.
NOTE 2) Specified value for the Allowable Shaft Load. Usage to within 20% of the specified value is recommended on actual use.
NOTE 3) Regarding special specifications for the Protective Structure, please consult us.
NOTE 4) Vibration: Value which satisfies the conditions of 2 hours each for axes X, Y and Z, for a total of 6 hours.
NOTE 5) Shock: Value which satisfies the conditions of 3 times each for axes X, Y and Z, for a total of 18 times.
