IP54 MTL Surge Protection Device SDRTD Frequency 50 MHz Zone 2

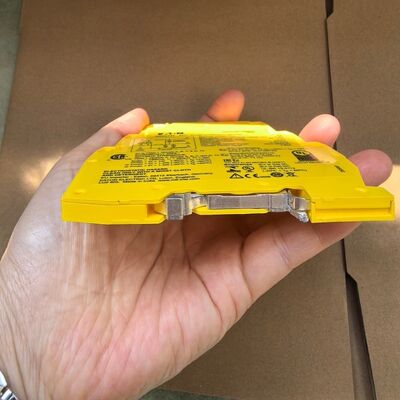

Large Image : IP54 MTL Surge Protection Device SDRTD Frequency 50 MHz Zone 2

Product Details:

Place of Origin:	India
Brand Name:	EATON
Model Number:	SDRTD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

IP54 MTL Surge Protection Device SDRTD Frequency 50 MHz Zone 2

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	Surge Protection Device SDRTD , IP54 Surge Protection Device , Eaton Surge Arrester 50 MHz

Eaton Crouse-Hinds series MTL SD surge protector, 0.75 Vac, 1 Vdc, 5kA surge current, 10<mA, T-section DIN rail, <12V voltage protection level, 12 AWG, 10 to 1500Ω resistance range, 3-wire RTD

Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Catalog Number	SDRTD
Product Length/Depth	99 mm
Product Height	101.3 mm
Product Width	7 mm
Product Weight	70 g
Global Catalog	SDRTD
Product Type	Surge protector

Area classification	Hazardous/Classified Locations
Standards type	NEC/CEC IEC IECEx/ATEX
IECEx/ATEX hazardous rating	Zone 2
Ingress protection (IP) ratings	IP54
Mounting Method	T-section DIN rail
Special features	10 to 1500Ω resistance range, 3-wire RTD
Frequency	50 MHz
Response Time	<1ns
Category Tested Acc. IEC 61643-21	A2, B2, C1, C2, C3, D1
Conductor Cross-section AWG	12 AWG
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	80 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% RH (non-condensing)
Modes of Protection	For protecting electronic equipment and systems against surges on signal and I/O cabling
Nominal Voltage AC	0.75V
Nominal Voltage DC	1V
Nominal Discharge Surge Current (8/20)	5 kA
Lightning Impulse Current (10/350 µs)	2.8 kA
Nominal Load Current	10
Voltage Protection Level at In	38V
Voltage Protection Level at 1kV/µS	<12V
Series Resistance (Ω/Line)	2.7Ω
Max. Leakage Current	0.3µA
Max. Continuous Voltage AC	5V
IEC	IEC/EN 61643-21
