P+F Isolated Barrier KCD2-SR-Ex1.LB Zener Barrier Safety Barrier

Large Image : P+F Isolated Barrier KCD2-SR-Ex1.LB Zener Barrier Safety Barrier

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KCD2-SR-Ex1.LB

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

P+F Isolated Barrier KCD2-SR-Ex1.LB Zener Barrier Safety Barrier

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	P+F isolated safety barrier , KCD2-SR-Ex1.LB intrinsic safety barrier , isolated barrier with warranty

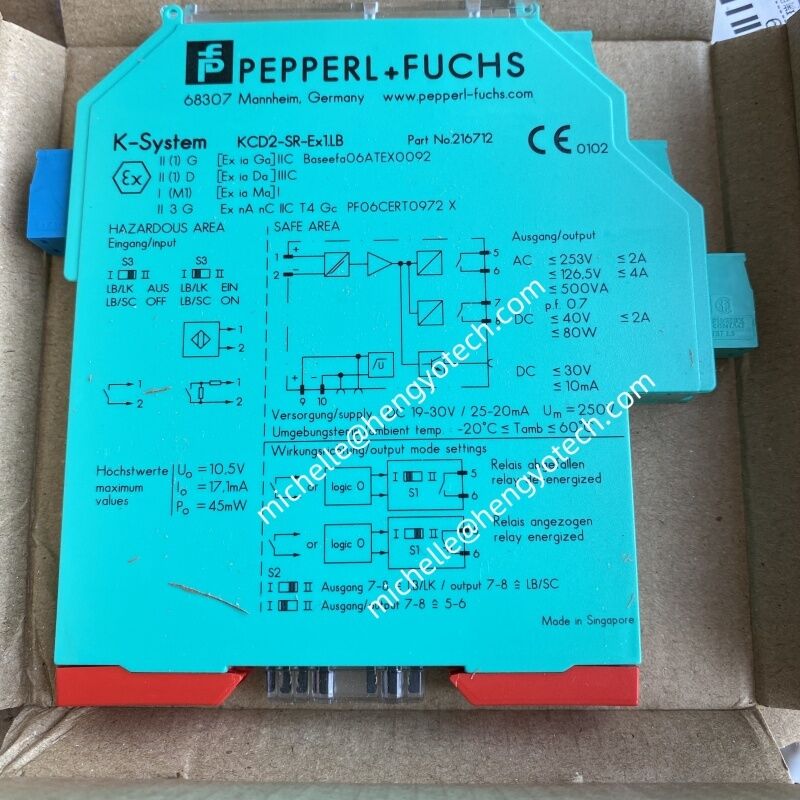

P+F Isolated Barrier KCD2-SR-Ex1.LB

Product Overview

PEPPERL+FUCHS Switch Amplifier KCD2-SR-Ex1.LB

1-channel isolated barrier
24 V DC supply (Power Rail)
Dry contact or NAMUR inputs
Usable as signal splitter (1 input and 2 outputs)
Relay contact output
Fault relay contact output
Line fault detection (LFD)
Housing width 12.5 mm
Up to SIL 2 (SC 3) acc. to IEC/EN 61508

Function & Applications

This isolated barrier is designed for intrinsic safety applications in industrial environments. The device transfers digital signals from NAMUR sensors or dry contacts from hazardous areas to non-hazardous areas. The proximity sensor or mechanical contact controls the control side load for a relay contact output, with the device output changing state when the input signal changes state.

Operation mode can be reversed via switches, and line fault detection can be switched off as needed. During fault conditions, the relay reverts to its de-energized state with LEDs indicating faults according to NAMUR NE 44 standards. When operated via Power Rail, an additional collective error message is available.

The compact housing design and low heat dissipation make this device ideal for detecting positions, end stops, and switching states in space-critical applications.
