Pepperl+Fuchs 2-channel Surge Protection Barrier with 20 kA Surge Current and SIL 3 Compliance

Large Image : Pepperl+Fuchs 2-channel Surge Protection Barrier with 20 kA Surge Current and SIL 3 Compliance

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	K-LB-2.30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl+Fuchs 2-channel Surge Protection Barrier with 20 kA Surge Current and SIL 3 Compliance

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Pepperl+Fuchs surge protection barrier , K-LB-2.30 surge protector , industrial surge protection device

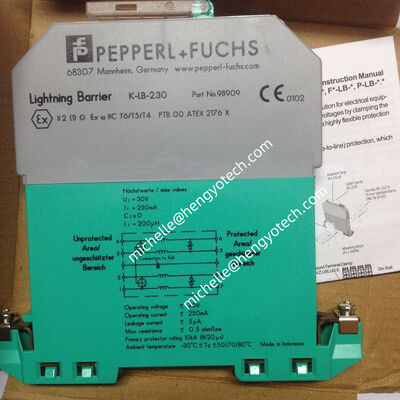

Pepperl+Fuchs Surge Protection Barrier K-LB-2.30

Product Overview

The PEPPERL+FUCHS K-LB-2.30 is a robust 2-channel surge protection barrier designed for industrial applications requiring reliable overvoltage protection.

2-channel surge protection device
Mounts on 35 mm DIN rail according to EN 60715
Suitable for intrinsically safe or non-intrinsically safe 30 V applications
Protects field or control circuit inputs
Maximum surge current (8/20 µs): 20 kA
Uninterruptible operation with auto-reset functionality
Certified for up to SIL 3 according to IEC/EN 61508
HART communication transparent

Function & Operation

This surge protection barrier effectively limits induced transients caused by various sources including lightning strikes and switching operations. The device achieves protection by diverting excess current to ground and limiting the signal loop voltage during overvoltage pulses, ensuring continuous system operation.

Installation Requirements

Important Installation Notes: Always connect the device to high-quality ground connections. The device must maintain the same potential as the equipment it protects. Install the ground system in compliance with all applicable regulations and standards.
