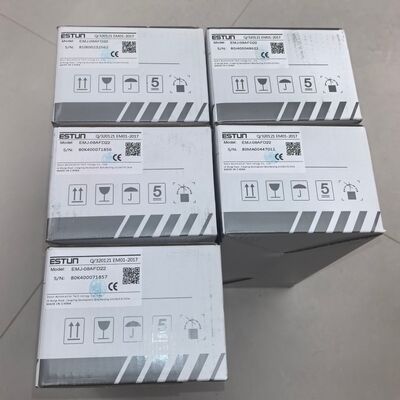

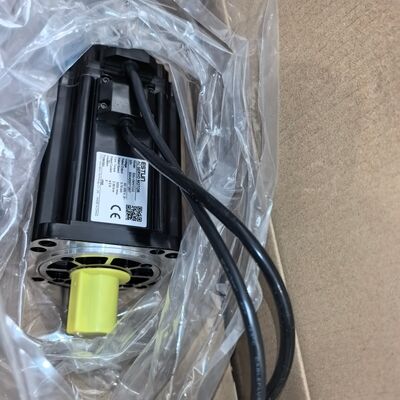

Estun EMJ-08APB22 750W AC Servo Motor with 3000 RPM and IP65 Protection for Industrial Automation

Large Image : Estun EMJ-08APB22 750W AC Servo Motor with 3000 RPM and IP65 Protection for Industrial Automation

Product Details:

Place of Origin:	CHINA
Brand Name:	PEPPERL+FUCHS
Certification:	CE UL ROSH
Model Number:	EMJ-08APB22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Estun EMJ-08APB22 750W AC Servo Motor with 3000 RPM and IP65 Protection for Industrial Automation

Description

Condition:	O	Warranty:	O
Protection Grade:	I	Shipping Way:	D
Application:	A	Certificate:	C
Highlight:	Estun Servo Motor Driver 7000r/Min , Estun Servo Motor Driver 0.75KW , EMJ-08APB22

Estun EMJ-08APB22 EMJ Series AC Servo Motor

750W 200VAC Medium Inertia 3000 RPM 300% Overload Capacity 2500 P/R Incremental Encoder With Holding Brake IP65

Product Overview

The Estun EMJ-08APB22 is a high-performance AC servo motor from Estun's advanced EMJ series. This 750W (0.75kW) model features a medium inertia rotor design and is equipped with a holding brake, making it ideal for vertical axis applications, CNC machinery, and systems requiring position holding when power is removed.

The EMJ series represents Estun's medium-inertia servo motor line, engineered for high-speed driving of mechanical feed axes in demanding industrial environments. With a standard IP65 construction rating and 300% peak torque overload capacity, the EMJ-08APB22 delivers exceptional power density and dynamic response for a wide range of automation applications.

Key Differentiators

Holding brake included - indicated by "B" in the model suffix, essential for vertical axis applications
300% overload capacity - handles demanding acceleration requirements
IP65 protection - suitable for harsh industrial environments
Field-proven reliability - successfully integrated with Centroid Acorn6 CNC controllers
Academic validation - motor parameters documented in Instruments C2000 MCU development resources

Technical Specifications

General Specifications

Parameter	Value
Manufacturer	Estun Automation Co., Ltd.
Series	EMJ Series - Medium Inertia
Product Type	AC Servo Motor (PMSM - Surface Mounted)
Certifications	CE Certified, RoHS Compliant
Protection Class	IP65 (fully enclosed, self-cooled)
Frame Size	80mm square flange
Cooling Method	Natural air cooling (self-cooled)
Insulation Class	Class F

Power & Torque

Parameter	Value
Rated Power	750 W (0.75 kW)
Rated Torque	2.39 N*m
Peak Torque (Momentary Max.)	7.17 N*m (300% overload capacity)
Rated Speed	3000 RPM
Maximum Speed	4500 RPM

Electrical Specifications

Parameter	Value
Voltage Rating	200 VAC
Rated Current	2.9 A (rms)
Stator Resistance (Rs)	2.20 Ω
Stator Inductance (Ls)	8.72 mH
Number of Poles	8 (4 pole pairs)
Rated Flux Linkage	0.3847 Wb
Encoder Type	2500 P/R incremental encoder (wire-saving type)
Optional Encoders	17-bit absolute (131,072 P/R), 20-bit incremental (1,048,576 P/R)

Holding Brake Specifications

Parameter	Value
Brake Type	24V DC holding brake
Brake Function	Brake is released when energized; engaged when power is removed

Application Note: For position holding only - not for dynamic braking

Mechanical Specifications

Parameter	Value
Shaft Configuration	Straight shaft with key and tap (suffix "22")
Oil Seal	Standard (included)
Weight (with brake)	Approx. 3.5-4.0 kg

Environmental Specifications

Parameter	Value
Operating Temperature	0°C to +55°C
Storage Temperature	-25°C to +85°C
Operating/Storage Humidity	5% to 95% RH (with no condensation)
Vibration Resistance	4.9 m/s²
Impact Resistance	19.6 m/s²
Altitude	1000m or less
Electrical System	TN system (grounded neutral)

Core Features & Benefits

Medium Inertia Design for Versatile Applications

The EMJ-08APB22 features a medium inertia rotor, specifically optimized for applications requiring balanced performance between rapid acceleration and stable load handling. This design provides enhanced stability for general automation and CNC applications.

300% Overload Capacity

With a peak torque of 7.17 N*m (300% of rated torque), this motor handles demanding acceleration requirements and sudden load fluctuations without stalling. The high overload capacity ensures reliable operation in applications with intermittent high-torque demands.

Built-in Holding Brake

The "B" in the model suffix indicates this unit includes a 24V DC holding brake, making it ideal for vertical axis applications where the load must be held in position when the servo is disabled.

Prevents load drop in vertical applications (Z-axis, lifting mechanisms)
No external brake mechanism required
Automatic engagement when power is removed
Essential for CNC machine tools and robotics applications

High-Speed Operation

With a maximum speed of 4500 RPM (rated speed 3000 RPM), the EMJ-08APB22 can handle high-speed machining and fast positioning applications, improving machine throughput and cycle times.

IP65 Environmental Protection

Rated IP65 as standard configuration, the motor is protected against dust ingress and low-pressure water jets from any direction. This makes the EMJ-08APB22 suitable for:

Dusty factory environments
Machine tool coolant exposure
Food processing machinery applications
Harsh industrial settings

High-Resolution Feedback

The standard 2500 P/R incremental encoder provides precise position and speed feedback for high-resolution control loops. Optional encoder upgrades include:

17-bit absolute encoder (131,072 pulses/rev) - retains position after power loss
20-bit incremental encoder (1,048,576 pulses/rev) - ultra-fine positioning

Robust Mechanical Construction

Oil seal included as standard - prevents lubricant ingress, suitable for gearbox or pulley-coupled applications
Key-way shaft - positive torque transmission
Fully enclosed construction - reliable operation in demanding environments

Applications

The Estun EMJ-08APB22 is engineered for high-cycle industrial automation applications requiring medium inertia performance and holding brake functionality.

Primary Applications

CNC Machine Tools - Feed axis drives for milling machines, lathes, and routers; successfully integrated with Centroid Acorn6 CNC controllers
Vertical Axis Systems - Lifting/lowering mechanisms, Z-axis stages - the holding brake prevents load drop when power is removed
Robotics - Small to medium robotic arms, articulated joints, and pick-and-place systems
Packaging Machinery - Wrapping, filling, and labeling equipment requiring precise torque control

Additional Applications

Textile Machinery - High-speed winding, spinning, and yarn tension control systems
Semiconductor Equipment - Wafer handling and inspection systems
Material Handling - Conveyor systems, palletizers, and automated storage/retrieval systems
Food Processing Machinery - IP65-rated construction suitable for wash-down environments
Battery Manufacturing Equipment - Precision positioning for cell assembly
General Automation - Assembly line indexers, positioning stages, and factory automation systems

Compatibility & System Integration

Matching Servo Drives

Driver Series	Model	Description
ProNet-E Series	ProNet-E-08A	Pulse train position control, cost-effective - field-proven with Centroid Acorn6
ProNet Series	ProNet-08A, ProNet-08AMA	Analog/pulse control type, advanced tuning features
ETS Series (2-axis)	ETS-10-10A-PC-CAN	Two-axis drive, CANopen communication, saves panel space
ETS Series (3-axis)	ETS-101010AP-C-CAN	Three-axis drive, CANopen communication

Encoder Compatibility

Standard: 2500 P/R wire-saving incremental encoder (Encoder code "P")
Optional: 17-bit absolute encoder (131,072 pulses/rev)
Optional: 20-bit incremental encoder (1,048,576 pulses/rev)

Communication Options (with compatible drives)

CANopen - Standard on ETS series drives
MODBUS RTU (RS485/RS232)
EtherCAT - Available on ProNet Plus series
Pulse train - Position control with line driver or open collector inputs

Wiring & Installation Notes

Do not connect the servomotor directly to the local electrical network - this may result in damage
After power is removed, residual voltage remains in the capacitor. Wait 5 minutes before inspection
Separate high-voltage cables from low-voltage cables to avoid noise interference
Single point grounding required (grounding resistance 100Ω or below)

Holding Brake Configuration

The brake interlock output signal (/BK) controls the brake
Brake timing parameters can be adjusted for servo OFF and alarm conditions
Essential for vertical axis applications
