Estun EMG-15AFB22 1.5kW AC Servo Motor with IP65 Protection and 300% Overload Capacity

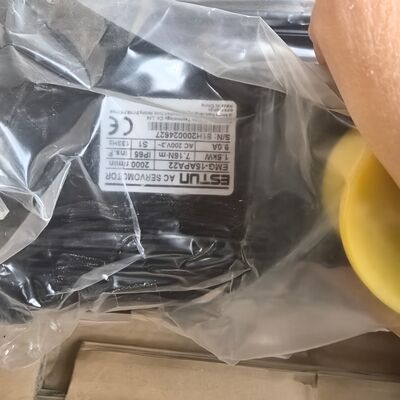

Large Image : Estun EMG-15AFB22 1.5kW AC Servo Motor with IP65 Protection and 300% Overload Capacity

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Certification:	CE UL ROSH
Model Number:	EMG-15AFB22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Estun EMG-15AFB22 1.5kW AC Servo Motor with IP65 Protection and 300% Overload Capacity

Description

Condition:	Original Brand New	Warranty:	One Year
Protection Grade:	IP65/IP67	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	Estun Servo Motor Driver 1.5KW , Estun Servo Motor Driver Large Torque , EMG-15AFB22

Estun EMG-15AFB22 AC Servo Motor

Estun EMG-15AFB22 1.5kW AC servo motor. 200V, 2000 RPM, 7.16 N*m torque, IP65, with holding brake. 300% overload capacity. UL certified. In stock.

Product Overview

The Estun EMG-15AFB22 is a high-performance AC servo motor from Estun's EMG series. This 1.5kW model features a medium inertia rotor design and is equipped with a holding brake, making it ideal for vertical axis applications and systems requiring position holding when power is removed.

Key Differentiators

UL Certified under file number E466402
Holding brake included - indicated by "B" in the model suffix
IP65 protection as standard configuration

Technical Specifications

General Parameters

Parameter	Value
Manufacturer	Estun Automation Co., Ltd.
Series	EMG Series - Medium Inertia
Product Type	AC Servo Motor
Certifications	UL Certified (File E466402)
Protection Class	IP65 (standard configuration)
Flange Size	130mm square

Power & Torque

Parameter	Value
Rated Power	1.5 kW (1500W)
Rated Torque	7.16 N*m
Peak Torque (Momentary Max.)	300% of rated torque (approx. 21.48 N*m)
Rated Speed	2000 r/min (RPM)
Maximum Speed	3000 r/min (RPM)

Electrical & Feedback

Parameter	Value
Voltage Rating	200 VAC
Encoder Type	2500 P/R wire-saving incremental encoder (standard)
Optional Encoders	17-bit / 20-bit incremental or absolute encoder, resolver
Encoder Resolution	2500 pulses/revolution (standard); up to 1,048,576 pulses/rev (20-bit)

Holding Brake Specifications

Parameter	Value
Brake Type	24V DC holding brake
Brake Operation	Brake is released when energized; engaged when power is removed

Application Note: For position holding only - not for dynamic braking

Core Features & Benefits

Medium Inertia Design - Optimized for balanced performance between rapid acceleration and stable load handling
300% Overload Capacity - Handles demanding acceleration requirements and sudden load fluctuations
Built-in Holding Brake - Ideal for vertical axis applications requiring position holding
IP65 Environmental Protection - Protected against dust ingress and low-pressure water jets
High-Speed Operation - Maximum speed of 3000 RPM for high-speed machining
Multiple Feedback Options - Various encoder options to meet different application requirements
UL Certification - Complies with North American safety standards

Applications

Primary Applications

Machine Tools: Feed axis drives for milling machines, lathes, and grinding equipment
Vertical Axis Systems: Lifting/lowering mechanisms, Z-axis stages, press brakes
Material Handling: Conveyor systems, palletizers, and automated storage systems
CNC Machinery: Routers, engraving machines, and plasma cutters

Additional Applications

Packaging Machinery
Food Processing Machinery
Textile Machinery
Robotics
General Automation
Press Brakes

Compatibility & System Integration

Matching Servo Drivers

Driver Series	Model	Description
ProNet Series	ProNet-15AMA	Analog/pulse control type
ProNet-E Series	ProNet-E-15A	Pulse train position control, cost-effective
ProNet Plus Series	ProNet-15A	Enhanced performance with advanced tuning
EDB Series	EDB-15APA / EDB-15AMA	Standard driver for EMG series

Encoder Compatibility

Standard: 2500 P/R wire-saving incremental encoder
Optional: 17-bit absolute encoder (131,072 pulses/rev)
Optional: 20-bit absolute encoder (1,048,576 pulses/rev)
Optional: Resolver for extreme environments

Why Choose Estun EMG-15AFB22?

Cost-Effective Alternative - Performance comparable to premium brands at competitive pricing
Proven Reliability - UL and CE certified with global adoption
Easy Replacement - Standard 130mm flange mounting dimensions
Global Support - Comprehensive technical documentation and support

Frequently Asked Questions

Q: What is the difference between EMG-15APA22 and EMG-15AFB22?
A: The "B" in the suffix indicates this model includes a holding brake (24V DC), while "A" indicates without brake.

Q: What driver is compatible with EMG-15AFB22?
A: Compatible drivers include ProNet-15AMA, ProNet-E-15A, and EDB-15APA/EDB-15AMA.

Q: Is the EMG series UL certified?
A: Yes, UL certified under file number E466402.

Q: What is the maximum speed?
A: Maximum speed is 3000 RPM, with rated speed of 2000 RPM.

Q: What is the peak torque capacity?
A: Peak torque is 300% of rated torque (approximately 21.48 N*m).

Ordering & Shipping Information

Service	Details
Minimum Order Quantity	1 unit
Lead Time	Subject to stock availability (typically 5-15 business days)
Shipping Options	DHL, FedEx, UPS for international shipping
Packaging	Standard manufacturer packaging (box)
Customs Classification	ECCN: EAR99, HTSUS: 8501.52.0000
