Estun EMJ-10APB22 1kW AC Servo Motor with 3000 RPM and IP65 Protection for Industrial Automation

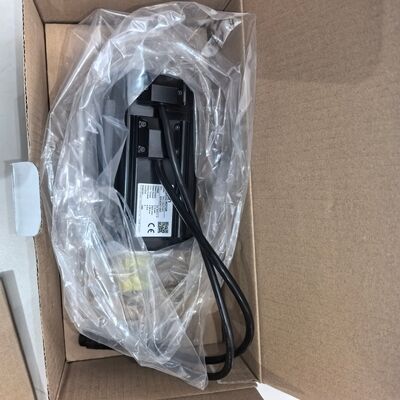

Large Image : Estun EMJ-10APB22 1kW AC Servo Motor with 3000 RPM and IP65 Protection for Industrial Automation

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Model Number:	EMJ-10APB22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Estun EMJ-10APB22 1kW AC Servo Motor with 3000 RPM and IP65 Protection for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Protection Grade:	IP65/IP67	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	AC Servo Motor Driver 1KW , AC Servo Motor Driver IP67 , EMJ-10APB22

Estun EMJ-10APB22 EMJ Series AC Servo Motor

1kW 200VAC Medium Inertia, 3000 RPM, 300% Overload Capacity, 2500 P/R Encoder, With Holding Brake, IP65

Product Overview

The Estun EMJ-10APB22 is a high-performance AC servo motor from Estun's renowned EMJ series. This 1kW (1000W) model features a medium inertia rotor design and is equipped with a holding brake, making it particularly suitable for vertical axis applications and systems requiring position holding when power is removed.

The EMJ series represents Estun's medium-inertia servo motor line, engineered for high-speed driving of mechanical feed axes in demanding industrial environments. With a standard IP65 construction rating and 300% peak torque overload capacity, the EMJ-10APB22 delivers exceptional power density and dynamic response for a wide range of automation applications.

Please Note: The "B" in the model suffix indicates this unit includes a 24V DC holding brake, a critical feature for vertical axis applications where load holding is required when the servo is disabled.

Key Technical Specifications

Parameter	Value
Manufacturer	Estun Automation Co., Ltd.
Series	EMJ Series - Medium Inertia
Product Type	AC Servo Motor
Rated Power	1.0 kW (1000W)
Rated Torque	3.18 N*m
Peak Torque (Momentary Max.)	300% of rated torque (approx. 9.54 N*m)
Rated Speed	3000 r/min (RPM)
Maximum Speed	4500 r/min (RPM)
Voltage Rating	200 VAC

Electrical & Feedback

Parameter	Value
Encoder Type	2500 P/R saving type incremental encoder (standard)
Optional Encoders	17-bit absolute encoder, 20-bit incremental encoder
Encoder Resolution	2500 pulses/revolution (standard)
Protection Class	IP65 (fully enclosed, self-cooled, excluding shaft penetration)
Cooling Method	Natural air cooling (self-cooled)

Holding Brake Specifications

Parameter	Value
Brake Type	24V DC holding brake
Brake Rated Power	1.32 N*m
Brake Operation	Brake is released when energized; engaged when power is removed
Application Note	For position holding only - not for dynamic braking

Core Features & Benefits

Medium Inertia Design: Optimized for applications requiring balanced performance between rapid acceleration and stable load handling
300% Overload Capacity: Handles demanding acceleration requirements and sudden load fluctuations without stalling
Built-in Holding Brake: 24V DC holding brake ideal for vertical axis applications where load must be held in position
High-Speed Operation: Maximum speed of 4500 RPM for high-speed machining and fast positioning applications
IP65 Environmental Protection: Protected against dust ingress and low-pressure water jets for demanding industrial environments
High-Resolution Feedback Options: Standard 2500 P/R encoder with optional 17-bit absolute or 20-bit incremental encoders
Wide Speed Control Range: 1:5000 speed control range enabling stable operation from near-zero speeds
Excellent Speed Regulation: Superior load, voltage, and temperature regulation for precise control

Applications

The Estun EMJ-10APB22 is engineered for high-cycle industrial automation applications requiring medium inertia performance and holding brake functionality:

Primary Applications

Vertical Axis Systems: Lifting/lowering mechanisms, Z-axis stages, elevators
Robotics: Small to medium robotic arms, articulated joints, and automated guided vehicles (AGVs)
Pick-and-Place Machines: High-speed component placement with vertical holding requirements
Semiconductor Equipment: Wafer handling, inspection systems, and manufacturing equipment
Lithium Battery Equipment: Precision positioning for battery cell manufacturing

Additional Applications

CNC Machine Tools
Packaging Machinery
Textile Machinery
Food Processing Machinery
Material Handling
Medical Equipment
General Automation

Compatibility & System Integration

Matching Servo Drivers

Driver Series	Model	Description
ProNet-E Series	ProNet-E-10A	1kW pulse train position control
ProNet Series	ProNet-10AMA	Analog/pulse control type
ETS Series	ETS-10-10A-PC-CAN	Two-axis drive, CANopen communication
ETS Series	ETS-101010APC-CAN	Three-axis drive, CANopen communication

Why Choose Estun EMJ-10APB22?

Cost-Effective Alternative: Estun offers performance comparable to Japanese and European brands at a competitive price point

Proven Reliability: Leading global automation brand with decades of experience in servo motion control

Easy Replacement: Shares standard mounting dimensions with other Asian market servo motors for straightforward mechanical retrofits

Key Features at a Glance

Holding brake included - essential for vertical axis applications
IP65 protection - suitable for harsh environments
Medium inertia design - optimal for general automation applications
300% overload capacity - handles demanding acceleration requirements
4500 RPM max speed - supports high-speed machining
Multiple encoder options - 2500 P/R standard, 17-bit absolute, 20-bit incremental
