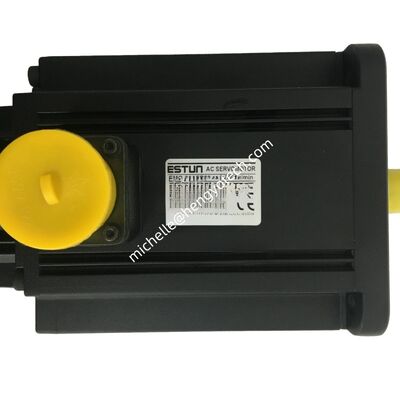

EMG-20AFB22 Estun 2kW Servo Motor 9.55Nm Medium Inertia 20-bit Encoder

• High-Resolution 20-bit Feedback: The "F" type serial encoder provides 1,048,576 pulses per revolution, ensuring ultra-smooth low-speed performance and sub-micron positioning accuracy.
• Medium Inertia Stability: Specifically balanced to handle larger load-to-rotor inertia ratios, preventing mechanical vibration and resonance in heavy-duty axes.
• Powerful Torque Output: Delivers a consistent 9.55 N*m (1,352 oz-in) of rated torque, with peak torque capabilities up to 28.6 N*m for rapid acceleration.
• High Power Density: Utilizes high-grade Neodymium-Iron-Boron (NdFeB) permanent magnets to achieve a compact frame size without sacrificing raw power.
• Industrial Durability: Features a fully enclosed, self-cooled design built to withstand the rigors of 24/7 industrial production environments.

Correct identification is vital for technical compatibility:

1. EMG: Estun Medium Inertia Series.
2. 20: 2.0 kW Rated Power Output.
3. A: 200V AC Voltage Input.
4. F: 20-bit Serial Encoder (High-Resolution upgrade over "P" type).
5. B: Design Sequence / Housing Style.
6. 22: Standard Shaft (No Brake).

The high-resolution and stable torque of the EMG-20AFB22 make it ideal for:

• Precision CNC Machinery: High-torque feed axes for milling, lathes, and grinding machines.
• Industrial Robotics: Heavy-payload articulated arms and gantry systems.
• Metal Processing: Accurate control for press feeders and metal bending machines.
• Packaging & Converting: High-speed labeling and vertical form-fill-seal (VFFS) systems.
