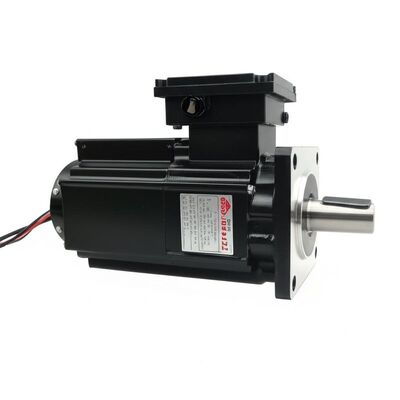

EMG-30DPA22 Estun 3kW Servo Motor 14.3Nm Medium Inertia 2500 PPR

Large Image : EMG-30DPA22 Estun 3kW Servo Motor 14.3Nm Medium Inertia 2500 PPR

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Model Number:	EMG-30DPA22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

EMG-30DPA22 Estun 3kW Servo Motor 14.3Nm Medium Inertia 2500 PPR

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine, Etc.

Highlight:

3KW AC Servo Motor

IP65 Protection AC Servo Motor

Medium Inertia Estun Servo Motor

EMG-30DPA22 Estun 3kW Servo Motor 14.3Nm Medium Inertia 2500 PPR

Estun EMG-30DPA22 AC Servo Motor | 3.0kW, 2000 RPM, 14.3 N*m

The Estun EMG-30DPA22 is a high-capacity industrial AC servo motor engineered for heavy-duty motion control. Delivering a massive 3.0kW (3000W) of continuous power, this motor features a Medium Inertia rotor designed to maintain exceptional stability when driving high-mass mechanical loads. Equipped with a reliable 2500 PPR incremental encoder, the EMG-30DPA22 provides the precise positioning and rugged performance required for large-scale CNC machining, metal processing, and industrial robotics.

Key Performance Advantages

High-Torque Performance: Delivers a consistent 14.3 N*m (2025 oz-in) of rated torque, with peak torque capabilities up to 42.9 N*m for demanding acceleration and heavy-load handling.
Medium Inertia Stability: Specifically balanced to handle high load-to-rotor inertia ratios, effectively eliminating mechanical resonance and vibration in large machinery.
Precision 2500 PPR Feedback: Features a high-reliability incremental encoder (10,000 pulses/rev after 4x evaluation) for accurate closed-loop control and velocity stability.
Industrial Durability: Fully enclosed and self-cooled design built to withstand the rigors of 24/7 factory environments and high-duty cycle production.
High Efficiency Design: Utilizes high-grade permanent magnets to achieve high power density and energy efficiency in a compact industrial frame.

Technical Specifications (Quick Reference)

Feature	Detailed Specification
Manufacturer	Estun Automation
Model Number	EMG-30DPA22
Rated Output	3000 W (3.0 kW)
Rated Torque	14.3 N*m (2,025 oz-in)
Peak Stall Torque	42.9 N*m (6,075 oz-in)
Rated Speed	2000 rpm
Maximum Speed	3000 rpm
Input Voltage	200 VAC (3-Phase)
Inertia Type	Medium Inertia
Encoder Type	2500 PPR Incremental
Brake Option	No (22 = No Brake; 24 = Brake Model)

EMG-30DPA22 Part Number Breakdown

Correct identification is vital for technical compatibility:

EMG: Estun Medium Inertia Series.
30: 3.0 kW (3000W) Rated Power Output.
D: 200V AC Voltage Input (D-Series variant).
P: 2500 PPR Incremental Encoder.
A: Design Sequence / Housing Style.
22: Standard Shaft (No Brake).

Targeted Industrial Applications

The high-torque and stable power of the EMG-30DPA22 make it ideal for:

Heavy-Duty CNC Machinery: Large-format milling, boring, and spindle feed axes.
Metalworking & Fabrication: High-torque press feeders, bending machines, and shearing lines.
Material Handling: Large-scale automated palletizers and heavy-payload gantry systems.
Plastic & Rubber Machinery: Injection molding and extrusion control.
