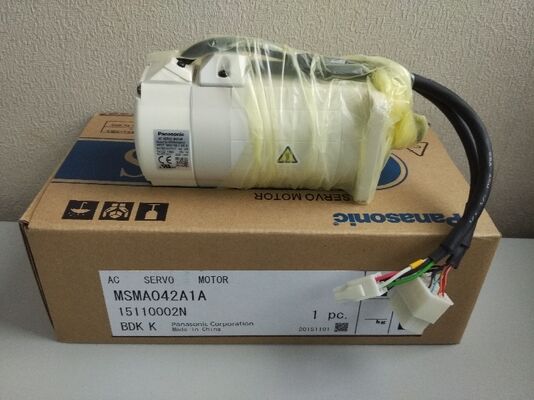

Panasonic MSMA042A1A MINAS A Series AC Servo Motor 400W 3000 rpm 200V AC with 2500 p/r Encoder

Large Image : Panasonic MSMA042A1A MINAS A Series AC Servo Motor 400W 3000 rpm 200V AC with 2500 p/r Encoder

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMA042A1A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately upon payment received
Payment Terms:	T/T,Western Union
Supply Ability:	20pcs/month

Contact Now Chat Now

Panasonic MSMA042A1A MINAS A Series AC Servo Motor 400W 3000 rpm 200V AC with 2500 p/r Encoder

Description

Condition:

Panasonic Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine

Highlight:

Panasonic AC servo motor 400W

Panasonic A series servo motor

400W AC servo motor with warranty

Panasonic MSMA042A1A MINAS A Series Servo Motor 400W 3000 rpm 200V AC 2500 p/r Encoder

Product Overview

The Panasonic MSMA042A1A is a high-performance digital AC servo motor from the acclaimed MINAS A Series. Engineered for precision motion control, this 400W (0.4kW) motor delivers exceptional speed and torque regulation, making it an ideal solution for demanding industrial automation applications requiring accurate positioning and reliable performance.

Key Technical Specifications

Specification	Details
Brand	Panasonic
Series	MINAS A Series
Model	MSMA042A1A
Motor Type	Digital AC Servo Motor, Permanent Magnet Synchronous Motor
Rated Output Power	400 W (0.4 kW)
Rated Speed	3,000 r/min
Maximum Speed	4,500 r/min
Rated Torque	1.27 N*m
Momentary Peak Torque	3.82 N*m
Supply Voltage	200 V AC (Three-phase)
Rated Current	2.4 A
Encoder Type	2500 p/r Incremental Rotary Encoder
Protection Rating	IP65 (excluding shaft through-hole)
Insulation Class	Class F
Cooling Method	Natural convection / Self-cooled
Product Status	Discontinued

Key Features & Performance Benefits

High-Precision Motion Control: 500 Hz frequency response for faster settling times and improved positioning accuracy
Versatile Encoder Options: Supports standard 2500 p/r, high-precision 17-bit, and absolute encoder configurations
Advanced Vibration Suppression: Resonance suppression and control functions for stable high-speed positioning
Full Closed-Loop Capability: Supports external high-precision linear scales for enhanced system accuracy
Built-in FFT Frequency Analysis: Enables detection of mechanical resonance points for simplified system tuning
Flexible Gain Adjustment: Standard auto-tuning and real-time auto-tuning modes
Multi-Axis Communication Support: RS485 and RS232C ports for controlling up to 16 axes simultaneously
Robust IP65 Protection: Excellent resistance to dust and water ingress for demanding industrial environments

Environmental & Mechanical Specifications

Parameter	Specification
Ambient Temperature (Operation)	0°C to 40°C
Ambient Temperature (Storage)	-20°C to 80°C
Ambient Humidity	Less than 80% RH (non-condensing)
Vibration Resistance	4.9 m/s² or less
Protection Rating	IP65 (excluding shaft through-hole)
Insulation Class	Class F
Cooling Method	Natural convection / Self-cooled

Applications

CNC Machinery - Precision positioning for milling, routing, and engraving
Industrial Robotics - Accurate joint control and end-effector positioning
Packaging Equipment - High-speed pick-and-place and wrapping machines
Material Handling Systems - Conveyor control and automated transfer units
Semiconductor Manufacturing - Wafer handling and precise positioning
Printing Machinery - Registration control and web handling
Automated Assembly Lines - Precision indexing and positioning
General Industrial Automation - Feed axes and positioning systems

Safety & Compliance Information

Intended Use: This product is designed for General Purpose Industrial Equipment and is not intended for use in equipment or systems that may cause personal injury or death.

Voltage Warning: Do not input a supply voltage that significantly exceeds the rated range to the power supply of this product. Failure to heed this caution may lead to damage of internal parts, causing smoke, fire, and other troubles.
