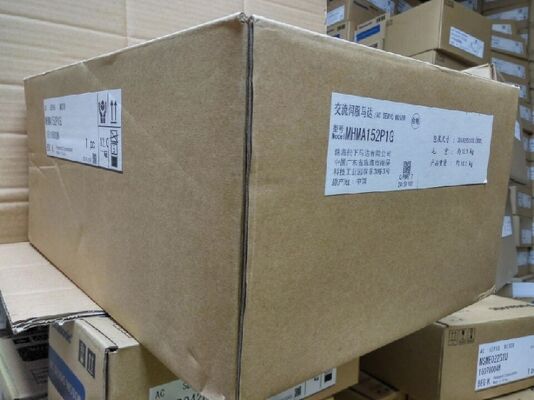

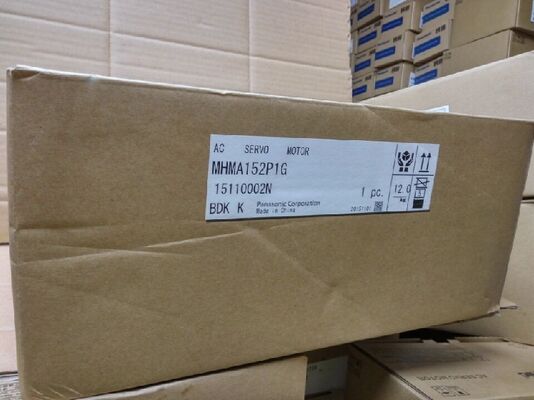

MHMA152P1G Panasonic 1.5kW Servo Motor Replacement – 7.15 Nm Torque 3000 rpm Max Speed IP65 Rated Key Shaft with Oil Seal

Large Image : MHMA152P1G Panasonic 1.5kW Servo Motor Replacement – 7.15 Nm Torque 3000 rpm Max Speed IP65 Rated Key Shaft with Oil Seal

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMA152P1G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately upon payment received
Payment Terms:	T/T,Western Union
Supply Ability:	20pcs/month

Contact Now Chat Now

MHMA152P1G Panasonic 1.5kW Servo Motor Replacement – 7.15 Nm Torque 3000 rpm Max Speed IP65 Rated Key Shaft with Oil Seal

Description

Condition:

Panasonic Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine

Highlight:

Panasonic MINAS A4 servo motor

1.5KW AC servo motor

MINAS A4 series motor with warranty

MHMA152P1G Panasonic 1.5kW Servo Motor Replacement

Panasonic MHMA152P1G MINAS A4 Servo Motor - 1.5kW, High Inertia, IP65, 2500 P/r Incremental Encoder

Product Overview

The Panasonic MHMA152P1G is a high-performance AC servo motor from the industry-leading MINAS A4 Family. Engineered as a high inertia servo motor with IP65 environmental protection, this 1.5kW (1500W) model delivers exceptional torque density, positioning accuracy, and operational stability for demanding industrial automation applications.

Part of Panasonic's widely adopted MINAS A4 series, the MHMA152P1G features a 2500 P/r incremental encoder that provides precise position and speed feedback for closed-loop motion control systems. The motor is designed with a key-way shaft, oil seal, and connector-type lead-out configuration, making it suitable for heavy-duty applications requiring reliable performance in harsh environments.

Key Features

Genuine Panasonic MINAS A4 - 100% authentic, brand new original product
High Inertia Design - 42.9 × 10⁻⁴ kg*m² rotor inertia for stable load handling
IP65 Protection Rating - Dust-tight and protected against water jets
High Torque Density - 7.15 Nm rated torque, 21.5 Nm peak torque
2500 P/r Incremental Encoder - High-resolution feedback for precise positioning
Key-way Shaft with Oil Seal - Reliable torque transmission and contamination protection
RoHS Compliant - Confirmed free from restricted substances
International Safety Approvals - CE, CSA, cULus, TUV, UL certified
Ready for Immediate Shipment - Global stock available

Technical Specifications

Parameter	Specification
Manufacturer	Panasonic Industrial Automation Sales
Series	MINAS A4 Family
Model	MHMA152P1G
Product Type	AC Servo Motor
Type	High inertia
Status	Discontinued (Brand New Original available)
Rated Output Power	1.5 kW (1500 W)
Voltage Specifications	200 V AC
Rated Torque	7.15 N*m (1012.53 oz-in)
Momentary Max. Peak Torque	21.5 N*m (3044.66 oz-in)
Rated Rotational Speed	2000 r/min
Max. Rotational Speed	3000 r/min
Moment of Inertia (Rotor)	42.9 × 10⁻⁴ kg*m²
Recommended Inertia Ratio	5 times or less
Rotary Encoder	2500 P/r Incremental system
Encoder Type	Incremental
Protection Class	IP65
Motor Lead-out Configuration	Connector type
Motor Encoder Connector	Connector type
Flange Square Dimension	130 mm × 130 mm (5.118" x 5.118")
Mounting Hole Spacing	145.00 mm (5.709")
Shaft	Key-way
Shaft Diameter	22.00 mm (0.866")
Shaft Length	70.00 mm (2.760")
Oil Seal	With
Holding Brake	Without
Mass (Weight)	10.0 kg (approx. 22 lbs)
Max. Current (Reference Value)	40.0 A (o-p)
Regenerative Brake Frequency	Without option: 25 times/min With DV0P4284: No limit
External Regenerative Resistor Option	DV0P4284
Operating Temperature	0°C to +40°C
Terminal Style	Connector
Approvals	CE, CSA, cULus, TUV, UL
RoHS Status	Compliant
Moisture Sensitivity Level	MSL 1 (Unlimited)

Product Features & Benefits

High Inertia Design for Stable Load Handling

The MHMA152P1G features a high inertia rotor (42.9 × 10⁻⁴ kg*m²) specifically designed to handle applications with significant load fluctuations. The recommended inertia ratio of 5:1 or less ensures stable operation even when load conditions vary, making this motor ideal for applications requiring smooth acceleration and deceleration.

IP65 Environmental Protection

With an IP65 protection rating, this motor is built to withstand harsh industrial environments:

Complete protection against dust ingress
Protection against water jets from any direction
Suitable for washdown applications in food processing and packaging
Oil seal equipped for contamination resistance

Note: The IP65 rating applies to the motor body. The rotating portion of the output shaft and the connecting pin parts of the motor connector and the encoder connector are excluded from this rating.

High Torque Output

The MHMA152P1G delivers impressive torque characteristics:

Rated Torque: 7.15 N*m for continuous operation
Peak Torque: 21.5 Nm (300% overload capacity)
Enables rapid acceleration and high dynamic response
Suitable for heavy-duty industrial applications

2500 P/r Incremental Encoder

Equipped with a 2500 pulse per revolution incremental encoder, this motor provides:

High-resolution position feedback for precise motion control
Reliable speed detection across the entire operating range
Compatibility with MINAS A4 and AIII series servo drives

Key-way Shaft with Oil Seal

The key-way shaft design ensures:

Positive torque transmission without slippage
Reliable coupling to load mechanisms
Oil seal protection prevents contamination ingress
Extended operational life in dusty or wet environments

Applications

The MHMA152P1G is ideally suited for demanding industrial automation applications requiring high inertia and reliable performance:

Machine Tools

CNC milling machines, lathes, machining centers, grinding machines

Packaging Machinery

High-speed filling machines, sealing equipment, cartoning machines, labeling systems

Robotics

Multi-axis robots, articulated arms, pick-and-place systems, palletizing equipment

Semiconductor Equipment

Wafer handling systems, die bonders, wire bonders, inspection equipment

PCB Assembly

PCB drilling machines, pick-and-place equipment, solder paste printers

Industrial Automation

Conveyor systems, material handling, assembly lines, indexing tables
