MHMA102P1G Panasonic 1KW AC Servo Motor with Brake

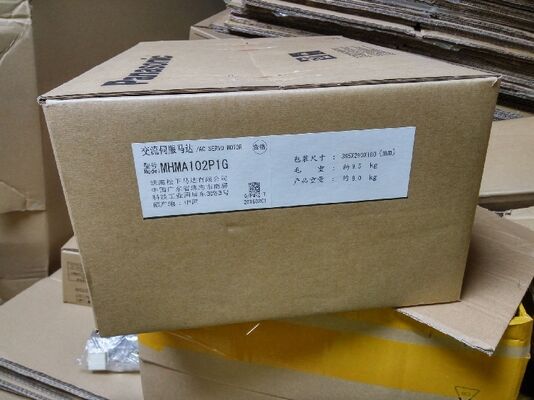

Large Image : MHMA102P1G Panasonic 1KW AC Servo Motor with Brake

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMA102P1G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	20pcs/month

Contact Now Chat Now

MHMA102P1G Panasonic 1KW AC Servo Motor with Brake

Description

Condition:	Panasonic Original Brand New	Warranty:	One Year
Application:	CNC Machine, Packaging Machine	Shipping Way:	DHL FedEx

Part Number	MHMA102P1G
Product	MINAS A4 Family Servo motor
Details	High inertia, Connector type, IP65
FAQ	Common item for A4 Series/AIII Series.
Product Name	MINAS A4 Family Servo Motor

Part Number	MHMA102P1G
Product details	High inertia, Connector type, IP65
Family Name	MINAS A4 Family
Series	MHMA Series
Type	High inertia
Protection class	IP65
About Enclosure	Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector.
Environmental Conditions	For more details, please refer to the instruction manual.
Flange sq. dimension	130 mm sq.
Flange size (mm)	130
Motor lead-out configuration	Connector
Motor encoder connector	Connector
Voltage specifications (V)	200
Rated output (W)	1000
Holding brake	without
Mass (kg)	8.9
Oil seal	with
Shaft	Key-way
Rated torque (N ⋅ m)	4.8
Momentary Max. peak torque (N ⋅ m)	14.4
Max. current [Reference value] (A 0-p)	24.0
Regenerative brake frequency (times/min)	Without option :33 With option : No limit Option (External regenerative resistor) Part No. : DV0P4284
Rated rotational speed (r/min)	2000
Max. rotational speed (r/min)	3000
Inertia of rotor ( x10^-4 kg ⋅ m²)	26.0
Recommended inertia ratio	5times or less
Rotary encoder: specifications	2500 P/r Incremental system
Remark	1. About Regenerative brake frequency the frequency of the motor's stops from the rated speed with deceleration without load. . If the load is connected, frequency will be defines as 1/(m+1), where m=load moment of inertia/rotor moment of inertia. ・ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to thesquare of (running speed/rated speed). ・Power supply voltage is AC115 V(at 100 V of the main voltage),AC230 V(at 200 V of the main voltage). 　If the supply voltage fluctuates, frequency is in inverse proportion to the square of (Running supply voltage)relative to the value in the table. ・When regeneration occurs continuously such cases as running speed frequently changes or vertical feeding, consult us ora dealer. 2. About unlimited regenerative brake frequency If the effective torque is within the rated torque, there is no limit in generative brake. 3. About recommended moment of inertia ratio of the load and the rotor Consult us or a dealer if the load moment of inertia exceeds the specified value. For details, check the catalog and instruction manuals.

scroll

Permissible load

Item	Specifications
During assembly: Radial load P-direction (N)	980
During assembly: Thrust load A-direction (N)	588
During assembly: Thrust load B-direction (N)	686
During operation: Radial load P-direction (N)	490
During operation: Thrust load A, B-direction (N)	196

scroll

Torque characteristics

Dotted line represents the torque at 10 % less supply voltage.

Dimensions

[Unit: mm]
