Panasonic MHMA152P1G MINAS A4 Servo Motor 1.5kW 200V for CNC Machine

Large Image : Panasonic MHMA152P1G MINAS A4 Servo Motor 1.5kW 200V for CNC Machine

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMA152P1G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately upon payment received
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Panasonic MHMA152P1G MINAS A4 Servo Motor 1.5kW 200V for CNC Machine

Description

Condition:

Panasonic Original Brand New

Warranty:

One Year

Application:

CNC Machine, Packaging Machine, Etc.

Shipping Way:

DHL FedEx

Highlight:

Panasonic AC servo motor 1.5KW

AC servo motor for CNC machine

1.5KW servo motor with warranty

Panasonic MHMA152P1G MINAS A4 Servo Motor 1.5kW 200V for CNC Machine

Product Overview

The Panasonic MHMA152P1G is a high-performance AC servo motor from the industry-leading MINAS A4 Family. Engineered as a high inertia servo motor with IP65 environmental protection, this 1.5kW (1500W) model delivers exceptional torque density, positioning accuracy, and operational stability for demanding industrial automation applications.

Part of Panasonic's widely adopted MINAS A4 series, the MHMA152P1G features a 2500 P/r incremental encoder that provides precise position and speed feedback for closed-loop motion control systems. The motor is designed with a key-way shaft, oil seal, and connector-type lead-out configuration, making it suitable for heavy-duty applications requiring reliable performance in harsh environments.

Key Value Proposition

✓ Genuine Panasonic MINAS A4 - 100% authentic, brand new original product

✓ High Inertia Design - 42.9 × 10⁻⁴ kg*m² rotor inertia for stable load handling

✓ IP65 Protection Rating - Dust-tight and protected against water jets

✓ High Torque Density - 7.15 Nm rated torque, 21.5 Nm peak torque (300% overload capacity)

✓ 2500 P/r Incremental Encoder - High-resolution feedback for precise positioning

✓ Key-way Shaft with Oil Seal - Reliable torque transmission and contamination protection

✓ RoHS Compliant - Confirmed free from restricted substances

✓ International Safety Approvals - CE, CSA, cULus, TUV, UL certified

✓ Ready for Immediate Shipment - Global stock available

Technical Specifications

Parameter	Specification
Manufacturer	Panasonic Industrial Automation Sales
Series	MINAS A4 Family
Model	MHMA152P1G
Product Type	AC Servo Motor
Type	High inertia
Status	Discontinued (Brand New Original available)
Rated Output Power	1.5 kW (1500 W)
Voltage Specifications	200 V AC
Rated Torque	7.15 N*m (1012.53 oz-in)
Momentary Max. Peak Torque	21.5 N*m (3044.66 oz-in)
Rated Rotational Speed	2000 r/min
Maximum Rotational Speed	3000 r/min
Moment of Inertia (Rotor)	42.9 × 10⁻⁴ kg*m²
Recommended Inertia Ratio	5 times or less
Rotary Encoder	2500 P/r Incremental system
Encoder Type	Incremental
Protection Class	IP65
Motor Lead-out Configuration	Connector type
Motor Encoder Connector	Connector type
Flange Square Dimension	130 mm × 130 mm (5.118" x 5.118")
Mounting Hole Spacing	145.00 mm (5.709")
Shaft	Key-way
Shaft Diameter	22.00 mm (0.866")
Shaft Length	70.00 mm (2.760")
Oil Seal	With
Holding Brake	Without
Mass (Weight)	10.0 kg (approx. 22 lbs)
Max. Current (Reference Value)	40.0 A (o-p)
Regenerative Brake Frequency	Without option: 25 times/min With option (DV0P4284): No limit
External Regenerative Resistor Option	DV0P4284
Operating Temperature	0°C to +40°C
Terminal Style	Connector
Features	Key, Oil Seal
Approvals	CE, CSA, cULus, TUV, UL
RoHS Status	Compliant
Moisture Sensitivity Level	MSL 1 (Unlimited)

Product Features & Benefits

High Inertia Design for Stable Load Handling

The MHMA152P1G features a high inertia rotor (42.9 × 10⁻⁴ kg*m²) specifically designed to handle applications with significant load fluctuations. The recommended inertia ratio of 5:1 or less ensures stable operation even when load conditions vary, making this motor ideal for applications requiring smooth acceleration and deceleration.

IP65 Environmental Protection

With an IP65 protection rating, this motor is built to withstand harsh industrial environments:

Complete protection against dust ingress
Protection against water jets from any direction
Suitable for washdown applications in food processing and packaging
Oil seal equipped for contamination resistance

Note: The IP65 rating applies to the motor body. The rotating portion of the output shaft and the connecting pin parts of the motor connector and the encoder connector are excluded from this rating.

High Torque Output with 300% Overload Capacity

The MHMA152P1G delivers impressive torque characteristics:

Rated Torque: 7.15 N*m for continuous operation
Peak Torque: 21.5 N*m (300% of rated torque)
Enables rapid acceleration and high dynamic response
Suitable for heavy-duty industrial applications

2500 P/r Incremental Encoder

Equipped with a 2500 pulse per revolution incremental encoder, this motor provides:

High-resolution position feedback for precise motion control
Reliable speed detection across the entire operating range
Compatibility with MINAS A4 and AIII series servo drives

Regenerative Brake Capability

The motor supports regenerative braking with the following frequencies:

Without external resistor: 25 stops per minute (from rated speed, no load)
With DV0P4284 external regenerative resistor: No limit when effective torque is within rated torque

Key-way Shaft with Oil Seal

The key-way shaft design ensures:

Positive torque transmission without slippage
Reliable coupling to load mechanisms
Oil seal protection prevents contamination ingress
Extended operational life in dusty or wet environments

Compact, Space-Saving Design

The MINAS A4 series incorporates advanced design techniques:

130mm square flange for space-efficient installation
Optimized thermal design for reduced heat generation
Ideal for machine downsizing projects

International Safety Approvals

Fully certified with CE, CSA, cULus, TUV, and UL approvals, ensuring compliance with global safety standards for industrial equipment.

RoHS Compliant

The MHMA152P1G has been confirmed to be free from the 6 substances specified in EU RoHS Directive 2011/65/EU and the 4 substances specified in 2015/863/EU, making it environmentally compliant for global markets.

Applications

The MHMA152P1G is ideally suited for demanding industrial automation applications requiring high inertia and reliable performance:

Industry	Typical Applications
Machine Tools	CNC milling machines, lathes, machining centers, grinding machines
Packaging Machinery	High-speed filling machines, sealing equipment, cartoning machines, labeling systems
Robotics	Multi-axis robots, articulated arms, pick-and-place systems, palletizing equipment
Semiconductor Equipment	Wafer handling systems, die bonders, wire bonders, inspection equipment
PCB Assembly	PCB drilling machines, pick-and-place equipment, solder paste printers
Industrial Automation	Conveyor systems, material handling, assembly lines, indexing tables
Printing & Converting	Web handling systems, registration control, cutting and slitting equipment
Food Processing	Washdown-compatible equipment (with proper sealing)
Test & Measurement	Positioning stages, inspection systems, laboratory automation

Compatible Servo Amplifiers (SERVO Drives)

The MHMA152P1G is a common item for A4 Series/AIII Series systems, providing flexibility for system integration and replacement applications.

Servo Amplifier Series	Description
MINAS A4 Series	Optimal compatibility, same generation
MINAS AIII Series	Compatible as common item

For the exact compatible driver model for 1.5kW/200V applications, refer to Panasonic's combination table in the MINAS A4 technical documentation. The recommended external regenerative resistor option is DV0P4284.

Model Number Reference

The MHMA152P1G model number breakdown:

Code	Description
MHMA	MINAS A4 Series, High Inertia Type
152	1.5 kW Rated Output
P	Incremental Encoder (2500 P/r)
1	Shaft Configuration (Key-way with Oil Seal, no brake)
G	Connector Type Lead-out Configuration

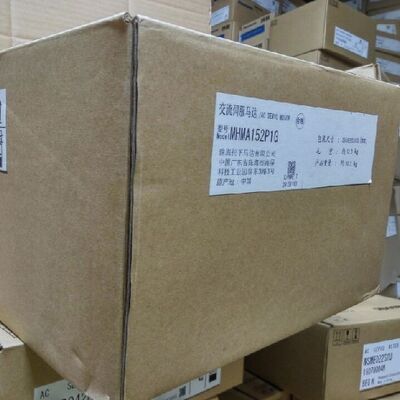

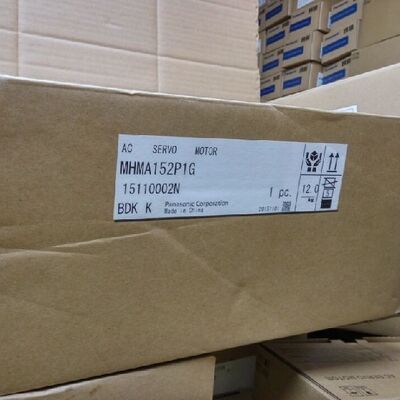

Packaging & Shipping

Item	Details
Condition	Brand New, Original Panasonic (New Old Stock)
Packaging Type	Box package
Single Unit Weight	10.0 kg (approx. 22 lbs)
Flange Dimensions	130 mm × 130 mm
Shipping Methods	DHL, FedEx, UPS, TNT, EMS
Delivery Time	In stock - ready for immediate shipment
Warranty	12-month warranty against manufacturing defects (extended options available)
