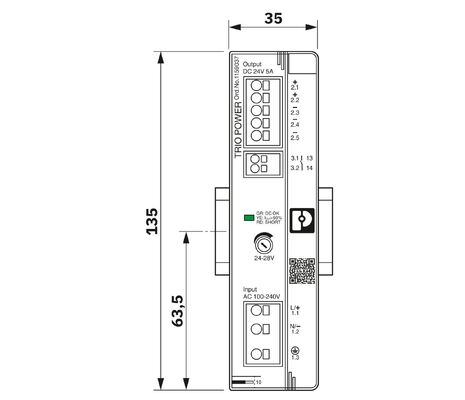

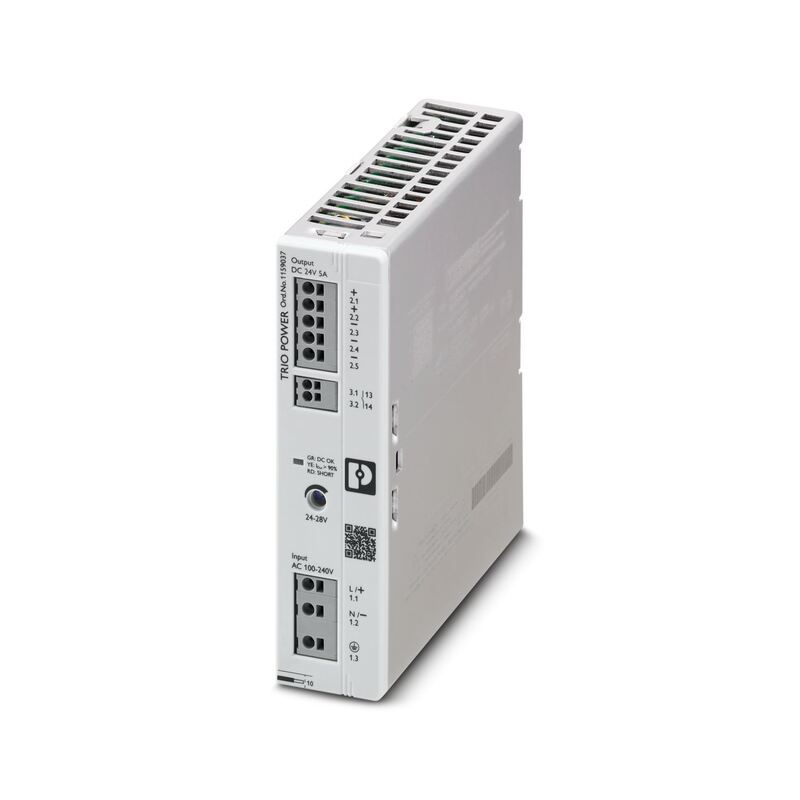

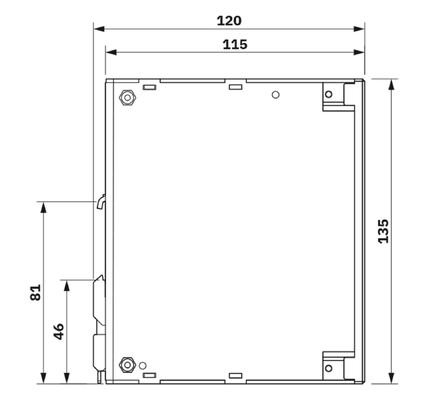

TRIO3-PS/1AC/24DC/5 Phoenix Contact Power supply 1159037

Large Image : TRIO3-PS/1AC/24DC/5 Phoenix Contact Power supply 1159037

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	TRIO3-PS/1AC/24DC/5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	available in stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

TRIO3-PS/1AC/24DC/5 Phoenix Contact Power supply 1159037

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact TRIO3 power supply

24DC power supply with warranty

TRIO3-PS industrial power supply

All TRIO POWER power supplies feature smart diagnostics with multicolor LEDs and a collective alarm contact. This is used to signal all relevant states such as DC OK, overload, and short circuit. Devices with integrated multi-channel device protection and an IO-Link interface for diagnostics and parameterization are optionally available. The compact devices reduce the installation work, space requirements in the control cabinet, and material costs. TRIO POWER power supplies therefore provide power reliability in one device.

AC operation
Supply system configuration	Star network (TN, TT, IT (PE))
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Input voltage range	115 V AC ... 240 V AC ±10 % (UL)
Derating	< 100 V AC (1 %/V)
Derating	2.5 %/K, > 60 °C
Electric strength, max.	300 V AC 15 s
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	< 33 A (25 °C)
Inrush current integral (I²t)	< 0.55 A²s
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Mains buffering time	typ. 28 ms (120 V AC)
Mains buffering time	typ. 28 ms (230 V AC)
Current consumption	1.3 A (100 V AC)
	1.1 A (120 V AC)
	0.6 A (230 V AC)
	0.59 A (240 V AC)
Protective circuit	Transient protection; Varistor
Power factor (cos phi)	0.93 (230 V AC)
Device mains fuse	6.3 A internal (device protection)
Recommended breaker for input protection	6 A ... 16 A (Characteristic B, C, D, K or comparable)
Discharge current to PE	< 3.5 mA
DC operation
Input voltage range	100 V DC ... 240 V DC ±10 %
Input voltage range	160 V DC ... 240 V DC ±10 % (UL)
Derating	< 140 V DC (1 %/V)
Voltage type of supply voltage	DC
Current consumption	1.29 A (100 V DC)
Current consumption	0.53 A (240 V DC)

Efficiency	typ. 93 % (120 V AC)
Efficiency	typ. 94 % (230 V AC)
Nominal output voltage	24 V DC
Setting range of the output voltage (U_Set)	24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (I_N)	5 A
Dynamic Boost (I_Dyn.Boost)	max. 7.5 A (5 s)
Short-circuit-proof	yes
No-load proof	yes
Derating	60 °C ... 70 °C
Crest factor	typ. 1.72 (120 V AC)
Crest factor	typ. 1.89 (230 V AC)
Output power (P_N)	120 W
Output power (P_{Dyn. Boost})	max. 180 W (5 s)
Connection in parallel	yes, for increased efficiency and redundancy
Connection in series	yes, for increased output voltage (observe SELV limit)
Feedback voltage resistance	≤ 35 V DC
Protection against overvoltage at the output (OVP)	≤ 35 V DC
Residual ripple	typ. 50 mV_PP (with nominal values)
Control deviation	< 1 % (change in load, static 10 % ... 90 %)
	< 3 % (change in load, dynamic 10 % ... 90 %)
	< 0.1 % (change in input voltage ±10 %)
Rise time	≤ 1 s (U_Out = 10 % ... 90 %)
Minimum no-load power dissipation	< 2.14 W (120 V AC)
Maximum no-load power dissipation	< 1.75 W (230 V AC)
Minimum nominal load power dissipation	< 8.54 W (120 V AC)
Power loss nominal load max.	< 6.51 W (230 V AC)
Integrated fuse protection	no
Fuse protection (secondary side)	electronic

Input
Position	1.x
Connection technology
Position marking	1.1 (L/+), 1.2 (N/-), 1.3 ()
Conductor connection
Connection method	Push-in connection
rigid	0.2 mm² ... 4 mm²
	1.5 mm² (recommended)
flexible	0.2 mm² ... 2.5 mm²
	1.5 mm² (recommended)
flexible with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²
	1.5 mm² (recommended)
flexible with ferrule with plastic sleeve	0.25 mm² ... 2.5 mm²
	1.5 mm² (recommended)
AWG	24 ... 12 (Cu)
	16 (recommended)
Stripping length	10 mm (Rigid/flexible/ferrule)
Output
Position	2.x
Connection technology
Position marking	2.1, 2.2 (+), 2.3, 2.4, 2.5 (-)
Conductor connection
Connection method	Push-in connection
rigid	0.2 mm² ... 4 mm²
	1.5 mm² (recommended)
flexible	0.2 mm² ... 2.5 mm²
	1.5 mm² (recommended)
flexible with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm² (Cu)
	1.5 mm² (recommended)
flexible with ferrule with plastic sleeve	0.25 mm² ... 2.5 mm²
	1.5 mm² (recommended)
AWG	24 ... 12 (Cu)
	16 (recommended)
Stripping length	10 mm (Rigid/flexible/ferrule)
Signal
Position	3.x
Connection technology
Position marking	3.1 (13), 3.2 (14)
Conductor connection
Connection method	Push-in connection
rigid	0.2 mm² ... 1.5 mm²
	0.5 mm² (recommended)
flexible	0.2 mm² ... 1.5 mm²
	0.5 mm² (recommended)
flexible with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm² (Cu)
	0.5 mm² (recommended)
flexible with ferrule with plastic sleeve	0.25 mm² ... 0.75 mm²
	0.5 mm² (recommended)
AWG	24 ... 16 (Cu)
	20 (recommended)
Stripping length	10 mm (Rigid/flexible/ferrule)

LED signaling
Types of signaling	LED DC OK - signal state operation (U_N = 24 V DC, I_Out = I_N)
Function	Visual operating state display
Color	red, yellow, green (multicolor LED)
LED off	Supply voltage input AC not present (Off)
LED on (green), DC OK	U_Out > 21 V DC and I_Out < 0.9 x I_N (On (green), DC OK)
LED on (yellow), IOut > 90 %	U_Out > 21 V DC and I_Out > 0.9 x I_N (On (yellow), I_Out > 90% )
LED on (red), ISHORT	U_Out < 21 V DC and I_Out > 0.9 x I_N (On (red), I_SHORT)
LED on (flashing red) OVP	U_OUT > OVP (Over voltage protection) (on (flashing red))
Signal output DC OK
Position	3.x
Type of signaling	DC OK switch contact - signal state operation (U_N = 24 V DC, I_Out = I_N)
Position marking	3.1 (13), 3.2 (14)
Function	Operating state forwarding
Switch contact (floating)	OptoMOS
Switching voltage	max. 30 V DC (SELV)
Current carrying capacity	max. 100 mA
State condition (Contact closed)	U_Out > 21 V DC and I_Out < 0.9 x I_N (Contact closed)
State condition (Contact open)	U_Out < 21 V DC or I_Out > 0.9 x I_N (averaging over 60 s) (Contact open)
