UPS-BAT/PB/24DC/7AH Phoenix Contact UPS Battery module 1274118

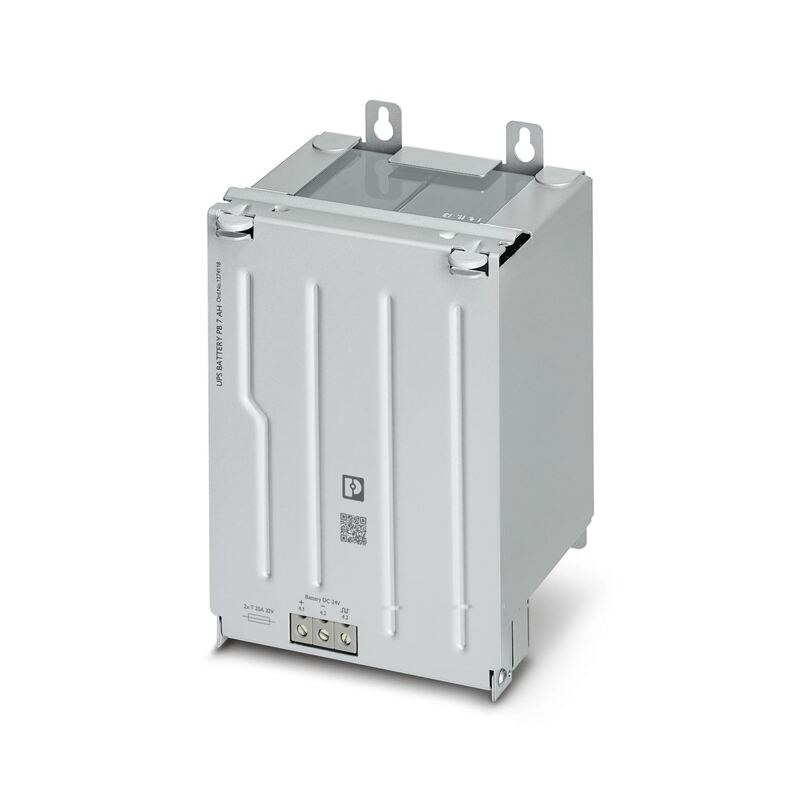

Large Image : UPS-BAT/PB/24DC/7AH Phoenix Contact UPS Battery module 1274118

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	UPS-BAT/PB/24DC/7AH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	available in stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

UPS-BAT/PB/24DC/7AH Phoenix Contact UPS Battery module 1274118

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

24 V DC UPS Battery Module

7 Ah Battery Module

IQ Technology Phoenix Contact UPS Battery

For continuous monitoring and intelligent management, there is constant communication with the QUINT UPS. Thanks to automatic detection of the battery module and tool-free switching during operation, quick installation is possible. The battery modules for QUINT UPS with IQ Technology are fully charged before being sent to our warehouse.

General
Note on the battery	This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”.

Input
Input voltage	24 V DC (SELV)
Nominal capacity	min. 7 Ah
Charging current	2.1 A
End-of-charge voltage	27.6 V DC (20 °C)
Output
Output voltage	24 V DC
Output current	max. 50 A
Output fuse	2x 25 A
Buffer time	9 min (20 A)
Buffer time	3 min (40 A)
General
Connection in parallel	yes
Connection in parallel	max. 5
Connection in series	no
Battery type	BB Battery BP7-12FR
Battery type	LEOCH LHR 1236W
Battery technology	VRLA-AGM
IQ-Technology	yes
Latest startup date (battery only)	12 Months (-20 °C ... 20 °C)
	9 Months (25 °C)
	6 Months (30 °C)
Accumulator module service life (according to Eurobat)	6 (20 °C)
Size designation	Block
Battery pack	yes
Suitable for fast charging	yes
Temperature sensor	yes
Number of replacement battery kits	UPS-BAT-KIT/PB/2X12V/7AH (1283119)
Number of replacement battery kits	UPS-BAT-KIT/PB/2X12V/7AH/L (1859168)

Battery
Position	4.x
Connection technology
Position marking	4.1 (+), 4.2 (-)
Conductor connection
Connection method	Screw connection
rigid	0.75 mm² ... 16 mm²
rigid	10 mm² ... 16 mm² (recommended)
flexible	0.75 mm² ... 16 mm²
flexible	10 mm² ... 16 mm² (recommended)
flexible with ferrule without plastic sleeve	10 mm² ... 16 mm² (recommended)
flexible with ferrule with plastic sleeve	0.75 mm² ... 16 mm²
AWG	20 ... 6
AWG	8 ... 6 (recommended)
Stripping length	10 mm (recommended)
Stripping length	10 mm
Tightening torque	1.2 Nm ... 1.5 Nm
Tightening torque	15 lb_f-in.
Drive form screw head	Slotted L
LIN
Position	4.x
Connection technology
Position marking	4.3 ()
Conductor connection
Connection method	Screw connection
rigid	0.75 mm² ... 16 mm² (LIN)
flexible	0.75 mm² ... 16 mm² (LIN)
flexible with ferrule without plastic sleeve	0.75 mm² ... 16 mm² (LIN)
flexible with ferrule with plastic sleeve	0.75 mm² ... 16 mm² (LIN)
AWG	20 ... 6 (LIN)
Stripping length	10 mm (LIN)
Tightening torque	1.2 Nm ... 1.5 Nm (LIN)
Tightening torque	15 lb_f-in. (LIN)
Drive form screw head	Slotted L

Product family	Battery module (device with battery)
Application	for QUINT4 DC-UPS, QUINT4 AC-UPS, QUINT-UPS, and TRIO-UPS-2G
Disposal	Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations.
Insulation characteristics
Protection class	III
Degree of pollution	2

Item dimensions
Width	135 mm
Height	202 mm
Depth	110 mm
Drill hole
Diameter	5 mm
Installation dimensions
Installation distance right/left	0 mm / 0 mm
Installation distance top/bottom	5 mm / 5 mm

Mounting type	Panel mounting, optional DIN rail mounting

Housing material	Metal
Type of housing	Galvanized sheet steel, powder-coated
