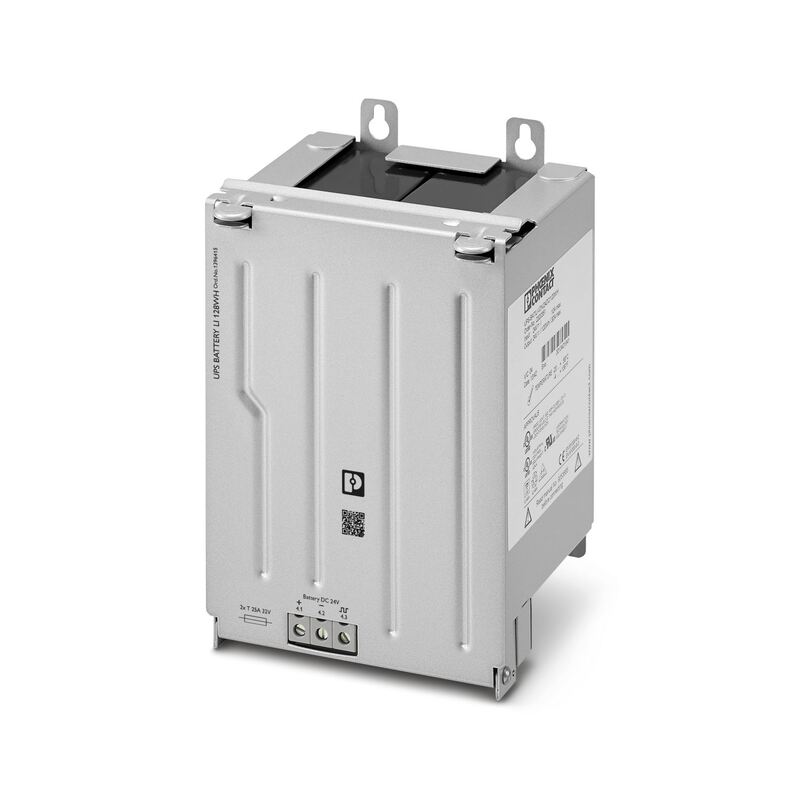

For continuous monitoring and intelligent management, there is constant communication with the QUINT UPS. Thanks to automatic detection of the battery module and tool-free change during operation, quick installation is possible. The battery modules for QUINT UPS with IQ Technology leave the warehouse fully charged.
For ambient temperatures (charging) of -10°C ... 60°C only for QUINT4-UPS/24DC/... from V/C 05,
1067327 QUINT4-UPS/1AC/1AC/500VA/USB from V/C 02,
2320212 QUINT-UPS/24DC/24DC/5 from V/C 12,
2320225 QUINT-UPS/24DC/24DC/10 from V/C 12,
2320238 QUINT-UPS/24DC/24DC/20 from V/C 12,
2320241 QUINT-UPS/24DC/24DC/40 from V/C 13,
2320461 QUINT-UPS/24DC/12DC/5/24DC/10 from V/C 05,
2320270 QUINT-UPS/1AC/1AC/500VA from V/C 06.
| General | |
| Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. |
| Input | |
| Input voltage | 24 V DC |
| Nominal capacity | 128 Wh (2x 64 Wh) |
| 5 Ah | |
| Charging current | 10 A |
| End-of-charge voltage | 28.4 V DC (20 °C) |
| Output | |
| Output current | 45 A |
| Output fuse | 2x 25 A ATOF Blade Fuse |
| Buffer time | 14 min (20 A) |
| General | |
| Connection in parallel | yes |
| max. 5 | |
| Battery type | Grepow, 2x 25.6 V GRP6053117-8S1P-A |
| Battery technology | Lithium-Ion (LiFePO4) |
| IQ-Technology | yes |
| Latest startup date (battery only) | 6 Months (-20 °C ... 35 °C) |
| 1 Months (-30 °C ... 65 °C) | |
| Accumulator module service life (according to Eurobat) | 10 (20 °C) |
| Size designation | Block |
| Temperature sensor | yes |
| Battery | |
| Position | 4.x |
| Connection technology | |
| Position marking | 4.1 (+), 4.2 (-) |
| Conductor connection | |
| Connection method | Screw connection |
| rigid | 0.75 mm² ... 16 mm² |
| 10 mm² ... 16 mm² | |
| flexible | 0.75 mm² ... 16 mm² |
| 10 mm² ... 16 mm² | |
| flexible with ferrule without plastic sleeve | 10 mm² ... 16 mm² (recommended) |
| 0.75 mm² ... 16 mm² | |
| flexible with ferrule with plastic sleeve | 10 mm² ... 16 mm² (recommended) |
| 0.75 mm² ... 16 mm² | |
| AWG | 20 ... 6 |
| 8 ... 6 (recommended) | |
| Stripping length | 10 mm (recommended) |
| 10 mm | |
| Tightening torque | 1.2 Nm ... 1.5 Nm |
| 15 lbf-in. | |
| Drive form screw head | Slotted L |
| LIN | |
| Position | 4.x |
| Connection technology | |
| Position marking | 4.3 () |
| Conductor connection | |
| Connection method | Screw connection |
| rigid | 0.75 mm² ... 16 mm² (LIN) |
| flexible | 0.75 mm² ... 16 mm² (LIN) |
| flexible with ferrule without plastic sleeve | 0.75 mm² ... 16 mm² (LIN) |
| flexible with ferrule with plastic sleeve | 0.75 mm² ... 16 mm² (LIN) |
| AWG | 20 ... 6 |
| Stripping length | 10 mm (LIN) |
