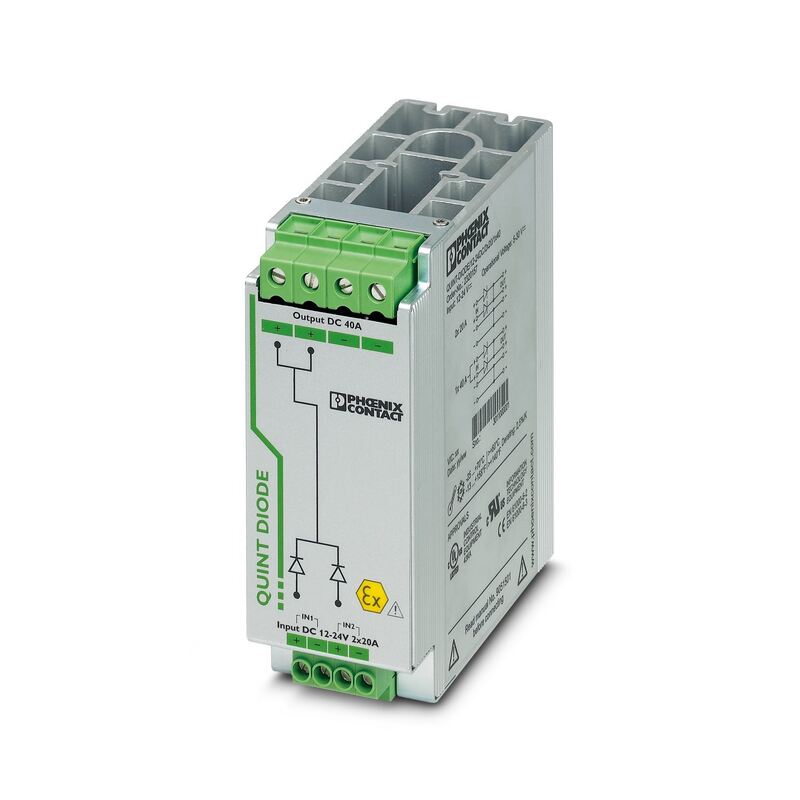

QUINT-DIODE/12-24DC/2X20/1X40 Phoenix Contact Redundancy module 2320157

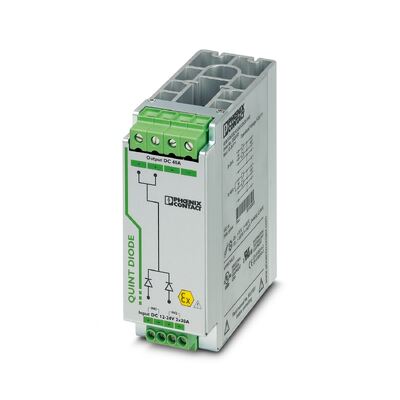

Large Image : QUINT-DIODE/12-24DC/2X20/1X40 Phoenix Contact Redundancy module 2320157

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-DIODE/12-24DC/2X20/1X40

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-DIODE/12-24DC/2X20/1X40 Phoenix Contact Redundancy module 2320157

Description

Condition:

Phoenix Contact Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact redundancy module 12-24DC

QUINT-DIODE redundancy module 2X20

Phoenix Contact power supply module 1X40

DIN rail diode module 12-24 V DC/2x20 A or 1x40 A. Uniform redundancy up to the consumer.

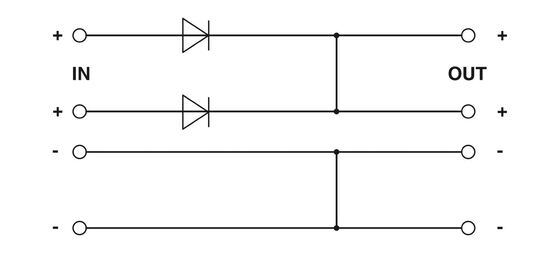

A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another. To further increase system availability, QUINT DIODE provides the solution: decoupling with diode.

DC operation
Nominal input voltage range	12 V DC ... 24 V DC
Input voltage range	10 V DC ... 30 V DC
Voltage type of supply voltage	DC
Reverse polarity protection	yes, < 60 V
Nominal input current (I_N)	2x 20 A (-25 °C ... 60 °C)
Nominal input current (I_N)	1x 40 A (-25 °C ... 60 °C)
Maximum current I_max	2x 30 A (-25 °C ... 40 °C)
Maximum current I_max	1x 60 A (-25 °C ... 40 °C)
Transient surge protection	Varistor
Voltage drop, input/output	typ. 0.5 V
Nominal input voltage range	12 V DC ... 24 V DC
Input voltage range	10 V DC ... 30 V DC
Input voltage range DC	10 V DC ... 30 V DC

Efficiency	> 97 %
Nominal output voltage	U_In - 0,5 V
Nominal output current (I_N)	40 A (Increasing power)
Nominal output current (I_N)	20 A (Redundancy)
Derating	60 °C ... 70 °C (2.5 %/K)
Power loss nominal load max.	10 W (I_OUT = 20 A)
Connection in series	no
Derating	60 °C ... 70 °C 2.5 %/K
