QUINT-UPS/24DC/24DC/5 Phoenix Contact UPS Uninterruptible power supply 2320212

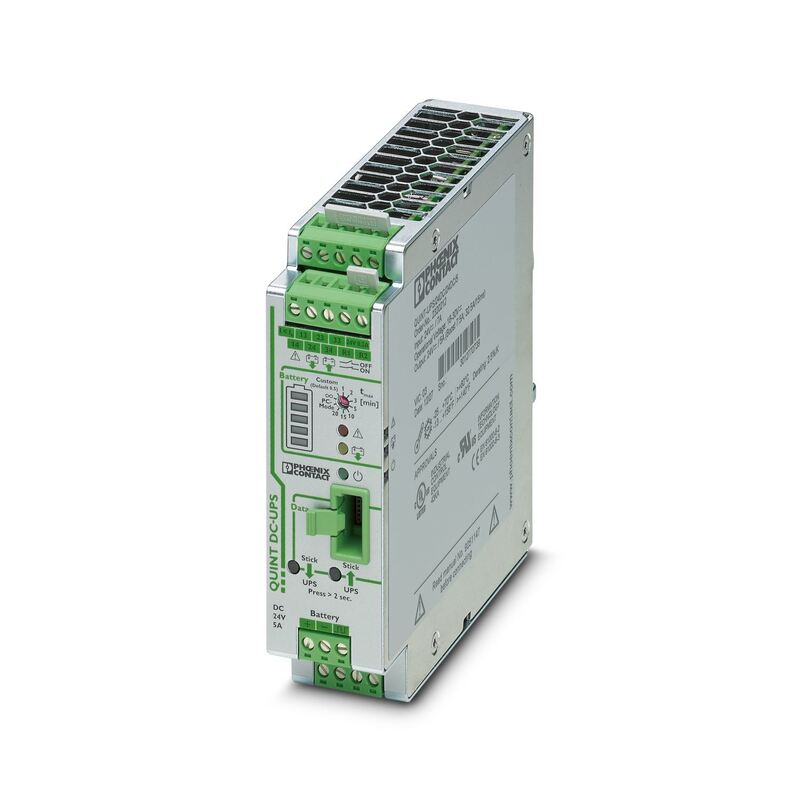

Large Image : QUINT-UPS/24DC/24DC/5 Phoenix Contact UPS Uninterruptible power supply 2320212

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-UPS/24DC/24DC/5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-UPS/24DC/24DC/5 Phoenix Contact UPS Uninterruptible power supply 2320212

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil, Gas, Chemical Industry

Highlight:

Phoenix Contact UPS 24DC power supply

Uninterruptible power supply 24DC

Phoenix Contact UPS with warranty

Uninterruptible power supply with IQ technology for DIN rail mounting, input: 24 V DC, output: 24 V DC/5 A, including mounted universal DIN rail adapter UTA 107/30

The UPS module for 24 V DC with output currents ranging from 5 to 40 A allows you to create a custom solution combining a power supply, UPS module, and energy storage.

DC operation
Input voltage	24 V DC
Nominal input voltage range	24 V DC
Input voltage range	18 V DC ... 30 V DC
Input voltage range DC	18 V DC ... 30 V DC
Voltage type of supply voltage	DC
Buffer period	2 h (With battery module 12 AH)
Current consumption	9.4 A (maximum, mains operation)
	10.3 mA (No load, mains operation)
	1.8 A (Charging, mains operation)
Fixed backup threshold	≤ 22 V DC
Variable connect threshold	1 V/0.1 s

Efficiency	> 98 % (Mains operation, with charged energy storage)
Efficiency	98 % (Battery operation)
Nominal output voltage	24 V DC
Output voltage range	18 V DC ... 30 V DC
Nominal output current (I_N)	5 A (-25 °C ... 50 °C)
Output current limit	In mains mode according to connected upstream current limiting device
Output current limit	> 7.5 A (Battery operation)
Derating	60 °C ... 70 °C (2.5 %/K)
Derating	60 °C ... 70 °C (2.5 %/K)
Output power	120 W
Power dissipation	2.5 W (Mains operation)
	2.65 W (Mains operation)
	2.64 W (Battery operation)
	2.93 W (Battery operation)
Connection in parallel	yes, up to 2 modules with redundancy module
Connection in parallel	2 (Devices)
Connection in series	no
Connection in series	no
Mains operation
Nominal output voltage	24 V DC
Output voltage range	18 V DC ... 30 V DC
Nominal output current (I_N)	5 A (-25 °C ... 60 °C)
POWER BOOST (I_Boost)	7.5 A (-25 °C ... 40 °C)
Selective Fuse Breaking (I_SFB)	30 A (-25 °C ... 60 °C)
Duration	12 ms (SFB technology)
Battery operation
Nominal output voltage	24 V DC
Output voltage range	19.2 V DC ... 27.6 V DC (U_OUT = U_BAT - 0,5 V DC)
Nominal output current (I_N)	5 A (-25 °C ... 60 °C)
POWER BOOST (I_Boost)	7.5 A (-25 °C ... 40 °C)
Selective Fuse Breaking (I_SFB)	32.5 A (-25 °C ... 60 °C)
Duration	15 ms (SFB technology)
Signal: Alarm
Output description	Relay (floating)
Maximum switching voltage	≤ 30 V AC/DC
Continuous load current	≤ 100 mA
Signal: Battery charge
Output description	Relay (floating)
Maximum switching voltage	≤ 30 V AC/DC
Output voltage	24 V
Continuous load current	≤ 100 mA
Signal: Battery mode
Output description	Relay (floating)
Maximum switching voltage	≤ 30 V AC/DC
Output voltage	24 V
Continuous load current	≤ 100 mA

Nominal voltage U_N	24 V DC
End-of-charge voltage	24 V DC ... 29 V DC (temperature compensated)
Charging current	0.2 A ... 1.36 A
Nominal capacity range	0.8 Ah ... 140 Ah
Battery presence check/time interval	1 min
Battery presence check (cyclic)	60 s
IQ technology	Yes
Temperature compensation	42 mV/K (preset)
Temperature compensation (preset)	42 mV/K
Network management	Yes
