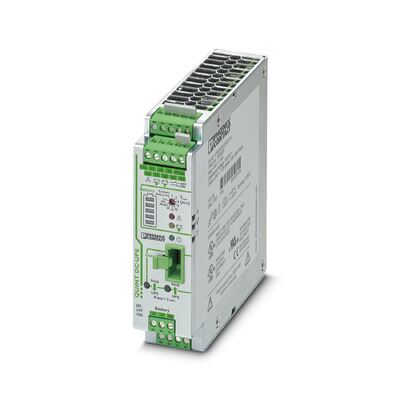

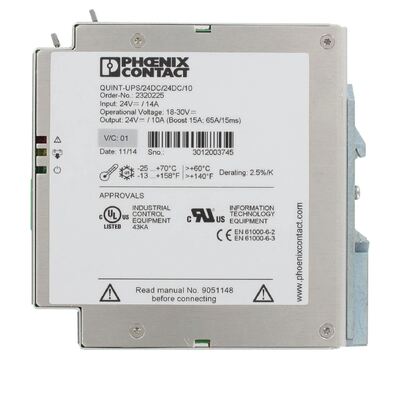

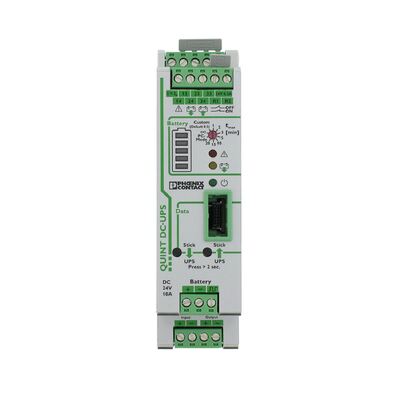

The UPS module for 24 V DC with output currents ranging from 5 to 40 A allows you to create a custom solution combining a power supply, UPS module, and energy storage.
| DC operation | |
| Input voltage | 24 V DC |
| Nominal input voltage range | 24 V DC |
| Input voltage range | 18 V DC ... 30 V DC |
| Input voltage range DC | 18 V DC ... 30 V DC |
| Voltage type of supply voltage | DC |
| Buffer period | 3 h (With battery module 38 AH) |
| Current consumption | 19 A (maximum, mains operation) |
| 10.4 mA (No load, mains operation) | |
| 4 A (Charging, mains operation) | |
| Fixed backup threshold | ≤ 22 V DC |
| Variable connect threshold | 1 V/0.1 s |
| Efficiency | > 98 % (Mains operation, with charged energy storage) |
| > 98 % (Battery operation) | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 18 V DC ... 30 V DC |
| Nominal output current (IN) | 10 A (-25 °C ... 50 °C) |
| Output current limit | In mains mode according to connected upstream current limiting device |
| > 15 A (Battery operation) | |
| Derating | 60 °C ... 70 °C (2.5 %/K) |
| 60 °C ... 70 °C (2.5 %/K) | |
| Output power | 240 W |
| Power dissipation | 2.6 W (Mains operation) |
| 4.6 W (Mains operation) | |
| 2.9 W (Battery operation) | |
| 5.27 W (Battery operation) | |
| Connection in parallel | yes, up to 2 modules with redundancy module |
| 2 (Devices) | |
| Connection in series | no |
| no | |
| Mains operation | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 18 V DC ... 30 V DC |
| Nominal output current (IN) | 10 A (-25 °C ... 60 °C) |
| POWER BOOST (IBoost) | 15 A (-25 °C ... 40 °C) |
| Selective Fuse Breaking (ISFB) | 60 A (-25 °C ... 60 °C) |
| Duration | 12 ms (SFB technology) |
| Battery operation | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0,5 V DC) |
| Nominal output current (IN) | 10 A (-25 °C ... 60 °C) |
| POWER BOOST (IBoost) | 15 A (-25 °C ... 40 °C) |
| Selective Fuse Breaking (ISFB) | 65 A (-25 °C ... 60 °C) |
| Duration | 15 ms (SFB technology) |
| Signal: Alarm | |
| Output description | Relay (floating) |
| Maximum switching voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 100 mA |
| Signal: Battery charge | |
| Output description | Relay (floating) |
| Maximum switching voltage | ≤ 30 V AC/DC |
| Output voltage | 24 V |
| Continuous load current | ≤ 100 mA |
| Signal: Battery mode | |
| Output description | Relay (floating) |
| Maximum switching voltage | ≤ 30 V AC/DC |
| Output voltage | 24 V |
| Continuous load current | ≤ 100 mA |
