QUINT-UPS/ 24DC/ 24DC/40 Phoenix Contact Uninterruptible power supply 2320241 for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted universal DIN rail adapter UTA 107/30

Name: QUINT-UPS/ 24DC/ 24DC/40 Phoenix Contact Uninterruptible power supply 2320241 for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted universal DIN rail adapter UTA 107/30
Brand: Shenzhen Hengyo Power Technology Co., Limited
SKU: QUINT-UPS/ 24DC/ 24DC/40
Availability: InStock

All Products

AC Servo Motor
(87)

AC Servo Driver
(58)

Surge Protection Device
(36)

Intrinsic Safety Barrier
(99)

GF Signet
(14)

Tamagawa Encoder
(27)

VFD Inverter
(18)

Electronic Lettering Machine
(7)

Proface HMI
(8)

Keyence Sensors
(29)

Temperature Controller
(11)

Differential Pressure Sensor
(14)

Differential Pressure Switch
(6)

Phoenix Contact Power Supply
(67)

VEGA Level Meter
(7)

P+F Sensors
(6)

Certification

I'm Online Chat Now

QUINT-UPS/ 24DC/ 24DC/40 Phoenix Contact Uninterruptible power supply 2320241 for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted universal DIN rail adapter UTA 107/30

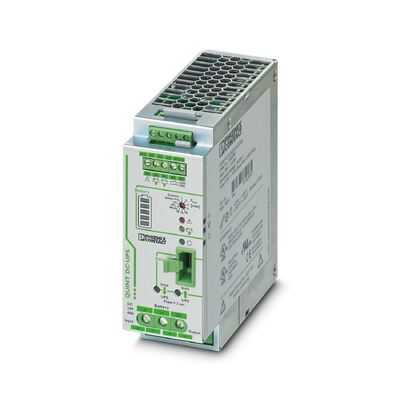

Large Image : QUINT-UPS/ 24DC/ 24DC/40 Phoenix Contact Uninterruptible power supply 2320241 for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted universal DIN rail adapter UTA 107/30

Product Details:

Place of Origin:	Phoenix Contact
Brand Name:	Phoenix Contact
Model Number:	QUINT-UPS/ 24DC/ 24DC/40

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-UPS/ 24DC/ 24DC/40 Phoenix Contact Uninterruptible power supply 2320241 for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted universal DIN rail adapter UTA 107/30

Description

Condition:

Phoenix Contact Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact DIN rail UPS

24V DC uninterruptible power supply

40A output UPS with adapter

Uninterruptible power supply with IQ technology for DIN rail mounting, input: 24 V DC, output: 24 V DC/40 A, including mounted universal DIN rail adapter UTA 107/30

The UPS module for 24 V DC with output currents ranging from 5 to 40 A allows you to create a custom solution combining a power supply, UPS module, and energy storage.

DC operation
Input voltage	24 V DC
Nominal input voltage range	24 V DC
Input voltage range	18 V DC ... 30 V DC
Input voltage range DC	18 V DC ... 30 V DC
Voltage type of supply voltage	DC
Buffer period	0.5 h (With battery module 38 AH)
Current consumption	51.9 A (maximum, mains operation)
	10.6 mA (No load, mains operation)
	6.9 A (Charging, mains operation)
Fixed backup threshold	≤ 22 V DC
Variable connect threshold	1 V/0.1 s

Efficiency	> 99 % (Mains operation, with charged energy storage)
Efficiency	98 % (Battery operation)
Nominal output voltage	24 V DC
Output voltage range	18 V DC ... 30 V DC
Nominal output current (I_N)	40 A (-25 °C ... 50 °C)
Output current limit	In mains mode according to connected upstream current limiting device
Output current limit	> 45 A (Battery operation)
Derating	60 °C ... 70 °C (2.5 %/K)
Derating	60 °C ... 70 °C (2.5 %/K)
Output power	960 W
Power dissipation	2.8 W (Mains operation)
	13 W (Mains operation)
	3.51 W (Battery operation)
	16.4 W (Battery operation)
Connection in parallel	yes, up to 2 modules with redundancy module
Connection in parallel	2 (Devices)
Connection in series	no
Connection in series	no
Mains operation
Nominal output voltage	24 V DC
Output voltage range	18 V DC ... 30 V DC
Nominal output current (I_N)	40 A (-25 °C ... 50 °C)
POWER BOOST (I_Boost)	45 A (-25 °C ... 40 °C)
Selective Fuse Breaking (I_SFB)	215 A (-25 °C ... 60 °C)
Duration	12 ms (SFB technology)
Battery operation
Nominal output voltage	24 V DC
Output voltage range	19.2 V DC ... 27.6 V DC (U_OUT = U_BAT - 0,5 V DC)
Nominal output current (I_N)	40 A (-25 °C ... 60 °C)
POWER BOOST (I_Boost)	45 A (-25 °C ... 40 °C)
Selective Fuse Breaking (I_SFB)	215 A (-25 °C ... 60 °C)
Duration	15 ms (SFB technology)
Signal: Alarm
Output description	Relay (floating)
Maximum switching voltage	≤ 30 V AC/DC
Continuous load current	≤ 100 mA
Signal: Battery charge
Output description	Relay (floating)
Maximum switching voltage	≤ 30 V AC/DC
Output voltage	24 V
Continuous load current	≤ 100 mA
Signal: Battery mode
Output description	Relay (floating)
Maximum switching voltage	≤ 30 V AC/DC
Output voltage	24 V
Continuous load current	≤ 100 mA
