QUINT-UPS/ 24DC/ 24DC/ 5/1.3AH Phoenix Contact Uninterruptible power supply 2320254 with IQ Technology and integrated battery for DIN rail mounting, input 24 V DC, output 24 V DC/5 A

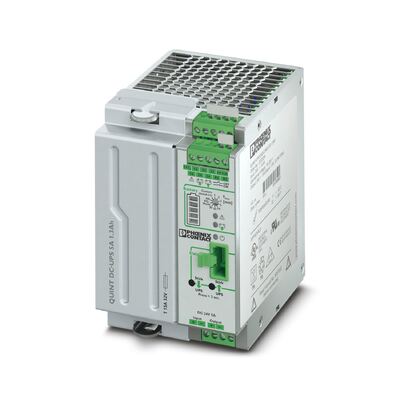

Large Image : QUINT-UPS/ 24DC/ 24DC/ 5/1.3AH Phoenix Contact Uninterruptible power supply 2320254 with IQ Technology and integrated battery for DIN rail mounting, input 24 V DC, output 24 V DC/5 A

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-UPS/ 24DC/ 24DC/ 5/1.3AH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-UPS/ 24DC/ 24DC/ 5/1.3AH Phoenix Contact Uninterruptible power supply 2320254 with IQ Technology and integrated battery for DIN rail mounting, input 24 V DC, output 24 V DC/5 A

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact UPS DIN rail mount

24V DC uninterruptible power supply

IQ Technology UPS with battery

Uninterruptible power supply with IQ Technology and integrated battery for DIN rail mounting, input: 24 V DC, output: 24 V DC/5 A, battery: lead AGM 1.2 Ah, including mounted universal DIN rail adapter UTA 107/30

UPS modules with integrated battery are particularly space-saving: the UPS module and battery are combined in one housing. It’s just a case of connecting a power supply upstream.

General
Note on the battery	This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”.

DC operation
Input voltage	24 V DC
Input voltage range	18 V DC ... 30 V DC
Input voltage range DC	18 V DC ... 30 V DC
Voltage type of supply voltage	DC
Buffer period	50 min (1 A)
Buffer period	5 min (5 A)
Current consumption	8.4 A (maximum)
	60 mA (No-load)
	0.7 A (charging process)
	5.9 A (at nom. output current and charging)
Fixed backup threshold	≤ 22.6 V DC

Efficiency	> 97.1 % (Mains operation, with charged energy storage)
Efficiency	97.31 %
Nominal output voltage	24 V DC
Output voltage range	18 V DC ... 30 V DC
Nominal output current (I_N)	5 A (0 °C ... 40 °C)
Output current limit	> 7.5 A (Battery operation)
Derating	60 °C ... 70 °C (2.5 %/K)
Output power	120 W
Power dissipation	2.5 W (Mains operation)
	2.7 W (Mains operation)
	1.9 W (Mains operation)
	3.3 W (Battery operation)
	3.3 W (Battery operation)
	4.1 W (Battery operation)
Output fuse	1x 15 A
Connection in parallel	2
Connection in series	no
Mains operation
Nominal output voltage	24 V DC
Output voltage range	18 V DC ... 30 V DC (U_OUT = U_IN - 0,1 V DC)
Nominal output current (I_N)	5 A (0 °C ... 40 °C)
POWER BOOST (I_Boost)	7.5 A (0 °C ... 40 °C)
Selective Fuse Breaking (I_SFB)	30 A (0 °C ... 40 °C)
Duration	12 ms (SFB technology)
Battery operation
Nominal output voltage	24 V DC
Output voltage range	19.2 V DC ... 27.6 V DC (U_OUT = U_BAT - 0,5 V DC)
Nominal output current (I_N)	5 A (0 °C ... 40 °C)
POWER BOOST (I_Boost)	7.5 A (0 °C ... 40 °C)
Selective Fuse Breaking (I_SFB)	32.5 A (0 °C ... 40 °C)
Duration	15 ms (SFB technology)
Signal: Alarm
Output description	Relay
Output voltage	≤ 30 V AC/DC
Continuous load current	≤ 100 mA
Signal: Battery charge
Output description	Relay
Output voltage	≤ 30 V AC/DC
Continuous load current	≤ 100 mA
Signal: Battery mode
Output description	Relay
Output voltage	≤ 30 V AC/DC
Continuous load current	≤ 100 mA
Signal
Continuous load current	≤ 200 mA
