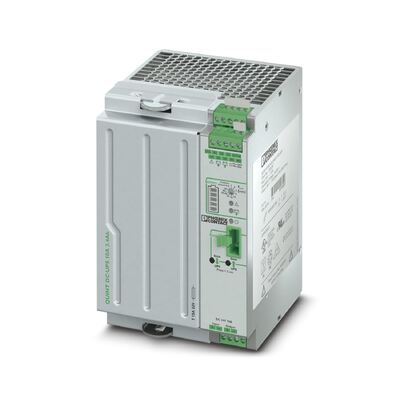

UPS modules with integrated battery are particularly space-saving: the UPS module and battery are combined in one housing. It’s just a case of connecting a power supply upstream.
| General | |
| Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. |
| Efficiency | > 97.6 % (Mains operation, with charged energy storage) |
| 96.41 % | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 18 V DC ... 30 V DC |
| Nominal output current (IN) | 10 A (0 °C ... 40 °C) |
| Output current limit | > 15 A (Battery operation) |
| Derating | 60 °C ... 70 °C (2.5 %/K) |
| Output power | 240 W |
| Power dissipation | 3.1 W (Mains operation) |
| 3.19 W (Mains operation) | |
| 1.8 W (Mains operation) | |
| 6.3 W (Battery operation) | |
| 4 W (Battery operation) | |
| 5.1 W (Battery operation) | |
| Output fuse | 1x 25 A |
| Connection in parallel | 2 |
| Connection in series | no |
| Mains operation | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 18 V DC ... 30 V DC (UOUT = UIN - 0,1 V DC) |
| Nominal output current (IN) | 10 A (0 °C ... 40 °C) |
| POWER BOOST (IBoost) | 15 A (0 °C ... 40 °C) |
| Selective Fuse Breaking (ISFB) | 60 A (0 °C ... 40 °C) |
| Duration | 12 ms (SFB technology) |
| Battery operation | |
| Nominal output voltage | 24 V DC |
| Output voltage range | 19.2 V DC ... 27.6 V DC (UOUT = UBAT - 0,5 V DC) |
| Nominal output current (IN) | 10 A (0 °C ... 40 °C) |
| POWER BOOST (IBoost) | 15 A (0 °C ... 40 °C) |
| Selective Fuse Breaking (ISFB) | 65 A (0 °C ... 40 °C) |
| Duration | 15 ms (SFB technology) |
| Signal: Alarm | |
| Output description | Relay |
| Output voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 100 mA |
| Signal: Battery charge | |
| Output description | Relay |
| Output voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 100 mA |
| Signal: Battery mode | |
| Output description | Relay |
| Output voltage | ≤ 30 V AC/DC |
| Continuous load current | ≤ 100 mA |
| Signal | |
| Continuous load current | ≤ 200 mA |
| Nominal voltage UN | 24 V DC |
| End-of-charge voltage | 24 V DC ... 29 V DC (temperature compensated) |
| Charging current | 1.2 A |
| Nominal capacity | 4 Ah |
| Buffer period | 180 min (1 A) |
| 10 min (10 A) | |
| Battery module service life | 6 Years ... 9 Years (20 °C) |
| Latest startup date (battery only) | 6 Months (0 °C ... 20 °C) |
| Latest startup (battery only) - range | 3 Months ... 6 Months (20 °C ... 30 °C) |
| 1 Months ... 3 Months (30 °C ... 40 °C) | |
| Battery technology | VRLA-AGM |
| Memory medium | VRLA-AGM Battery 4.0 Ah |
| Accumulator type | 2x BB Battery HR4.2-12FR (from UPS V/C-level 06) |
| IQ technology | Yes |
| Temperature sensor | yes |
| Network management | Yes |
