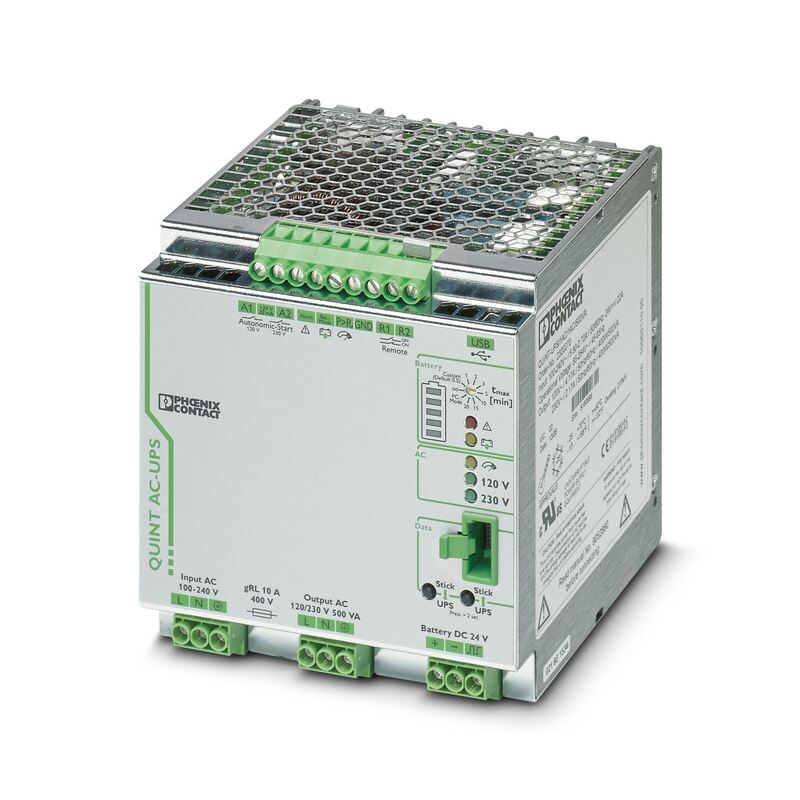

QUINT-UPS/ 1AC/ 1AC/500VA Phoenix Contact UPS Uninterruptible power supply 2320270

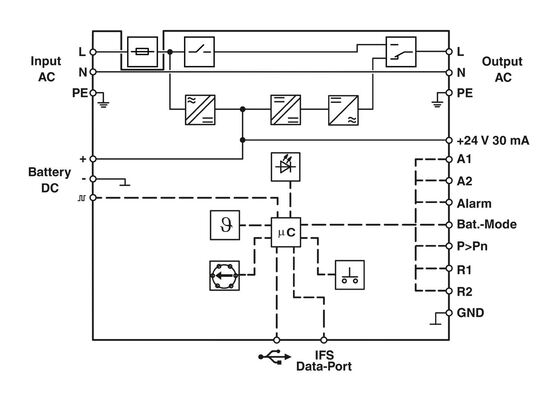

Large Image : QUINT-UPS/ 1AC/ 1AC/500VA Phoenix Contact UPS Uninterruptible power supply 2320270

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-UPS/ 1AC/ 1AC/500VA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-UPS/ 1AC/ 1AC/500VA Phoenix Contact UPS Uninterruptible power supply 2320270

Description

Condition:

Phoenix Contact Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact UPS 500VA

Uninterruptible power supply 1AC

Phoenix Contact power supply with warranty

Uninterruptible power supply with IQ technology 1AC/1AC/500 VA. For 120 V AC/230 V AC applications. Provides information regarding the charging state, remaining runtime, and service life of your rechargeable battery module at all times and thereby increases system availability.

The UPS module for 120 V AC/230 V AC delivers a pure sine curve at the output. For 400 W/500 VA of power, only one energy storage is required, the power supply is already integrated.

AC operation
Input voltage	240 V AC
	100 V AC
	120 V AC -20 % / +15 %
	230 V AC -20 % / +15 %
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	184 V AC ... 264 V AC
	96 V AC ... 138 V AC
	96 V AC ... 264 V AC
Input voltage range AC	196 V AC ... 264 V AC
	102 V AC ... 138 V AC
	96 V AC ... 264 V AC
Voltage type of supply voltage	AC
Nominal frequency	50 Hz ... 60 Hz
Nominal frequency	50 Hz ... 60 Hz
AC frequency range	45 Hz ... 65 Hz
Buffer period	1 h (38 AH)
Current consumption	2.2 A (230 V AC)
	0.18 A (230 V AC)
	0.8 A (230 V AC)
	3.7 A (230 V AC)
	4.3 A (120 V AC)
	0.35 A (120 V AC)
	1.3 A (120 V AC)
	6.8 A (120 V AC)
Fixed backup threshold	Configurable, 10 % deviation from nominal input voltage set by default
Variable connect threshold	Can be configured using UPS-CONF software
Power factor (cos phi)	0.8
Device mains fuse	10 A
Permissible backup fuse	B16 230 V AC
Permissible backup fuse	20 A 120 V AC, Listed breaker
Digital Control Low-Active (configurable)
Battery-operated start 120 V AC Default	Plug-in bridge (output +24 V DC, 30 mA to input A1)
Battery-operated start 230 V AC Default	Plug-in bridge (output +24 V DC, 30 mA to input A2)

Classification according to IEC 62040-3	VFD-SS-311
Efficiency	> 98 % (Mains operation)
	> 98 % (120 V AC)
	> 86 % (Battery operation)
Nominal output voltage	120 V AC
Nominal output voltage	230 V AC
Output voltage range	96 V AC ... 144 V AC
Output voltage range	184 V AC ... 264 V AC
Form of output voltage	Pure sine
Nominal output current (I_N)	4.3 A (120 V AC, -25 °C ... 50 °C)
Nominal output current (I_N)	2.2 A (230 V AC, -25 °C ... 40 °C)
Output current limit	5.2 A (120 V AC)
Output current limit	2.7 A (230 V AC)
POWER BOOST (I_Boost)	5.2 A (120 V AC, -25 °C ... 40 °C)
POWER BOOST (I_Boost)	2.7 A (230 V AC, -25 °C ... 40 °C)
Bridging time	3600 s
Derating	> 50 °C ... 70 °C (2.5 %/K)
UPS connection in parallel	no
UPS connection in series	no
Output power	516 W
Apparent power	500 VA
Nominal power	400 W
Crest factor	2.8
Switch-over time	< 10 ms
Connection in parallel	no
Connection in series	no
Mains operation
Nominal output voltage	120 V AC
Nominal output voltage	230 V AC
Output voltage range	102 V AC ... 138 V AC
Output voltage range	196 V AC ... 264 V AC
Nominal output current (I_N)	4.3 A (120 V AC)
Nominal output current (I_N)	2.2 A (230 V AC)
POWER BOOST (I_Boost)	5.2 A
POWER BOOST (I_Boost)	2.7 A
Permissible backup fuse	AC: 1 x circuit breaker - recommended fuse
Battery operation
Nominal output voltage	120 V AC
Nominal output voltage	230 V AC
Nominal output current (I_N)	2.2 A (230 V AC)
Nominal output current (I_N)	4.3 A (120 V AC)
POWER BOOST (I_Boost)	2.7 A (230 V AC)
POWER BOOST (I_Boost)	5.2 A (120 V AC)
Permissible backup fuse	25 A in parallel operation of 3.5 AH and 60 WH
Permissible backup fuse	50 A in parallel operation of 7.2 AH, 12 AH, and 38 AH
Buffer period	10 min (400 W / 7,2 Ah)
Signal: Alarm
Maximum switching voltage	≤ 30 V DC
Output voltage	24 V (SELV)
Continuous load current	≤ 30 mA
Signal: Battery mode
Maximum switching voltage	≤ 30 V DC
Output voltage	24 V (SELV)
Continuous load current	≤ 30 mA
Signal: POWER BOOST
Maximum switching voltage	≤ 30 V DC
Output voltage	24 V (SELV)
Continuous load current	≤ 30 mA
