STEP-PS/ 1AC/ 5DC/2 Phoenix Contact UPS Power supply 2320513 STEP-PS/1AC/5DC/2 power supply for DIN rail and direct mounting

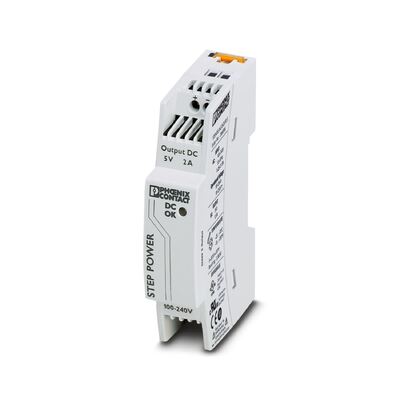

Large Image : STEP-PS/ 1AC/ 5DC/2 Phoenix Contact UPS Power supply 2320513 STEP-PS/1AC/5DC/2 power supply for DIN rail and direct mounting

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	STEP-PS/ 1AC/ 5DC/2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

STEP-PS/ 1AC/ 5DC/2 Phoenix Contact UPS Power supply 2320513 STEP-PS/1AC/5DC/2 power supply for DIN rail and direct mounting

Description

Condition:

Phoenix Contact Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact DIN rail power supply

STEP-PS 1AC 5DC power supply

UPS power supply with warranty

Primary-switched STEP POWER power supply for DIN rail and direct mounting, input: 1-phase, output: 5 V DC/2 A

STEP POWER power supplies for distribution boards
The STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.

AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Inrush current	< 15 A
Inrush current integral (I²t)	< 0.1 A²s
AC frequency range	45 Hz ... 65 Hz
Frequency range DC	0 Hz
Mains buffering time	typ. 25 ms (120 V AC)
Mains buffering time	typ. 110 ms (230 V AC)
Current consumption	0.2 A (120 V AC)
Current consumption	0.13 A (230 V AC)
Nominal power consumption	28.9 VA
Power factor (cos phi)	0.44
Typical response time	< 0.5 s
Input fuse	1.25 A (slow-blow, internal)
Permissible DC backup fuse	DC: Connect a suitable fuse upstream
Recommended breaker for input protection	6 A ... 16 A (AC: Characteristics B, C, D, K)
DC operation
Input voltage range	95 V DC ... 250 V DC
Voltage type of supply voltage	DC

Efficiency	> 81 % (for 230 V AC and nominal values)
Output characteristic	U/I
Nominal output voltage	5 V DC
Output current I_max	3.7 A
Nominal output current (I_N)	2 A (-25 °C ... 40 °C permanent)
Nominal output current (I_N)	2.2 A (-25 °C ... 55 °C)
Derating	55 °C ... 70 °C (2.5 %/K)
Protection against overvoltage at the output (OVP)	< 10 V DC
Residual ripple	< 50 mV_PP
Output power	10 W
Maximum no-load power dissipation	< 0.4 W
Power loss nominal load max.	< 2.6 W
Connection in parallel	yes, for redundancy and increased capacity
Connection in series	yes
Fuse protection (secondary side)	electronic
