QUINT-PS/1AC/24DC/10/CO Phoenix Contact UPS Power Supply with Protective Coating 2320911

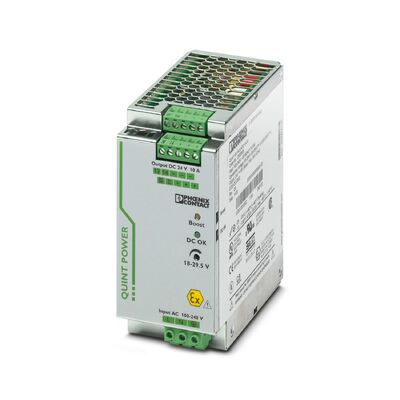

Large Image : QUINT-PS/1AC/24DC/10/CO Phoenix Contact UPS Power Supply with Protective Coating 2320911

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-PS/1AC/24DC/10/CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-PS/1AC/24DC/10/CO Phoenix Contact UPS Power Supply with Protective Coating 2320911

Description

Condition:

Phoenix Contact Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Application

Highlight:

Phoenix Contact UPS power supply

24DC power supply with coating

QUINT-PS UPS protective coating

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 10 A

QUINT POWER power supplies with maximum functionality
QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. In addition, the high system availability is ensured by preventive function monitoring which reports critical operating states before errors can occur.
Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 18 V DC ... 29.5 V DC are covered.

AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Derating I_{Stat. Boost}	< 100 V AC (1 %/V)
Electric strength, max.	300 V AC
Voltage type of supply voltage	AC
Inrush current	< 15 A
Inrush current integral (I²t)	< 1.5 A²s
Inrush current limitation	15 A
AC frequency range	45 Hz ... 65 Hz
Frequency range DC	0 Hz
Mains buffering time	typ. 36 ms (120 V AC)
Mains buffering time	typ. 36 ms (230 V AC)
Current consumption	4 A (100 V AC)
Current consumption	1.7 A (240 V AC)
Nominal power consumption	303 VA
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Typical response time	< 0.15 s
Input fuse	10 A (slow-blow, internal)
Permissible backup fuse	B10 B16
Recommended breaker for input protection	10 A ... 20 A (Characteristics B, C, D, K)
Discharge current to PE	< 3.5 mA
DC operation
Nominal input voltage range	110 V DC ... 250 V DC
Input voltage range	110 V DC ... 250 V DC -18 % ... +64 % (UL 508: ≤ 300 V DC)
Derating I_{Stat. Boost}	< 110 V DC (1 %/V)
Voltage type of supply voltage	DC
Current consumption	3.4 A (110 V DC)
Current consumption	1.5 A (250 V DC)

Efficiency	typ. 92 % (120 V AC)
Efficiency	typ. 93.2 % (230 V AC)
Output characteristic	U/I
Nominal output voltage	24 V DC ±1 %
Setting range of the output voltage (U_Set)	18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (I_N)	10 A
POWER BOOST (I_Boost)	15 A (-25 °C ... 40 °C permanent, U_OUT = 24 V DC )
Selective Fuse Breaking (I_SFB)	60 A (12 ms)
Magnetic circuit breaker tripping	B2 / B4 / B6 / C2 / C4
Derating	60 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance	≤ 35 V DC
Protection against overvoltage at the output (OVP)	≤ 32 V DC
Control deviation	< 1 % (change in load, static 10 % ... 90 %)
	< 2 % (change in load, dynamic 10 % ... 90 %)
	< 0.1 % (change in input voltage ±10 %)
Residual ripple	< 50 mV_PP (with nominal values)
Output power	240 W
Output power	360 W
Maximum no-load power dissipation	9.1 W
Power loss nominal load max.	22 W
Rise time	< 0.05 s (U_OUT (10 % ... 90 %))
Connection in parallel	yes, for redundancy and increased capacity
Connection in series	yes
Signal: DC OK active
Output description	U_OUT > 0.9 x U_N: High signal
Switching voltage range	18 V DC ... 24 V DC
Maximum inrush current	20 mA (short-circuit-proof)
Continuous load current	≤ 20 mA
Signal: DC OK floating
Output description	Relay contact, U_OUT > 0.9 x U_N: Contact closed
Maximum switching voltage	30 V AC
Maximum switching voltage	24 V DC
Maximum inrush current	0.5 A (ATEX/IECEx: Ohmic loads only)
Maximum inrush current	1 A (ATEX/IECEx: Ohmic loads only)
Continuous load current	≤ 1 A
Signal: POWER BOOST, active
Output description	I_OUT < I_N: High signal
Switching voltage range	18 V DC ... 24 V DC
Output voltage	+ 24 V DC
Maximum inrush current	20 mA (short-circuit-proof)
Continuous load current	≤ 20 mA
