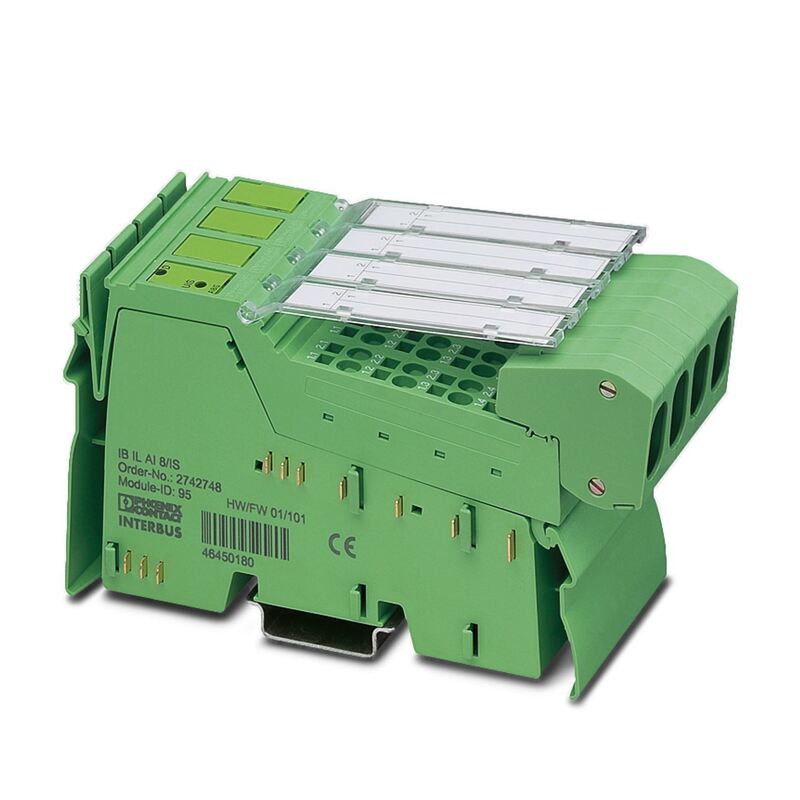

The terminal is designed for use within an Inline station.
| Input name | Analog inputs |
| Description of the input | Single-ended inputs, current |
| Number of inputs | 8 |
| A/D conversion time | approx. 10 µs |
| Connection method | Inline shield connector |
| Connection technology | 2-, 3-conductor |
| Note regarding the connection technology | shielded |
| Current input signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| -20 mA ... 20 mA | |
| 0 mA ... 40 mA | |
| -40 mA ... 40 mA | |
| Input resistance current input | 25 Ω (Shunt) |
| A/D converter resolution | 16 bit |
| Data formats | IB IL, IB ST, IB RT, standardized representation, PIO format |
| Limit frequency (3 dB) | 3.5 kHz |
| Measuring principle | Successive approximation |
| Measured value resolution | 16 bits (15 bits + sign bit) |
| Measured value representation | 16 bits two's complement and other |
