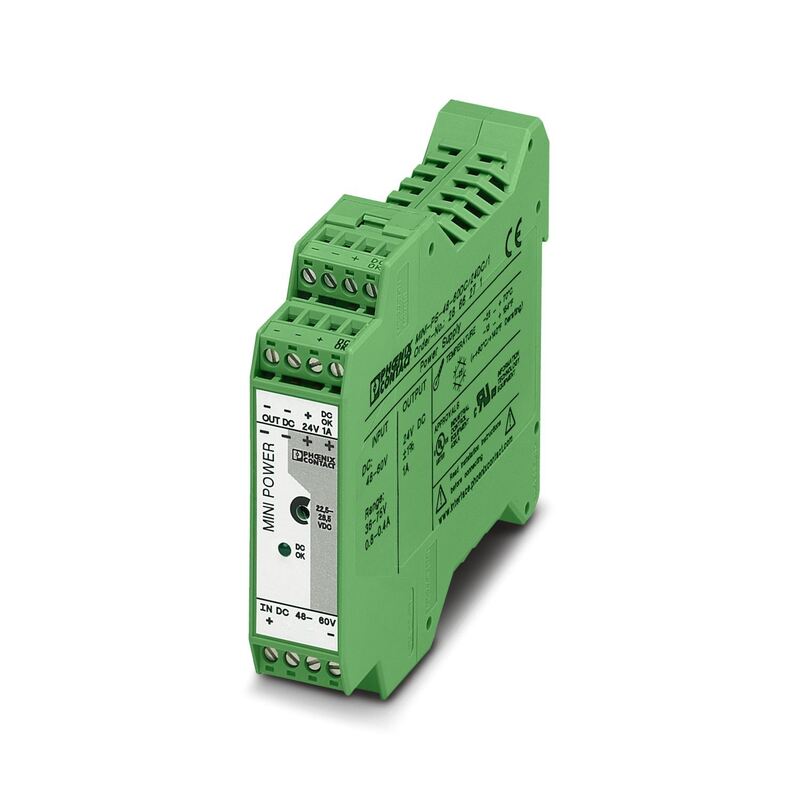

MINI-PS-48-60DC/24DC/1 Phoenix Contact DC/DC converter 2866271

Large Image : MINI-PS-48-60DC/24DC/1 Phoenix Contact DC/DC converter 2866271

Product Details:

Place of Origin:	Germany
Brand Name:	Phoenix Contact
Model Number:	MINI-PS-48-60DC/24DC/1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MINI-PS-48-60DC/24DC/1 Phoenix Contact DC/DC converter 2866271

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact DC/DC converter 48-60V

MINI-PS DC/DC converter 24V output

Phoenix Contact power supply with warranty

Please use the following item in new systems: 1066708.
Primary-switched MINI DC/DC converter for DIN rail mounting, input: 48 - 60 V DC, output: 24 V DC/1 A

MINI DC/DC converter for MCR technology.
DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation.

DC operation
Nominal input voltage range	48 V DC ... 60 V DC
Input voltage range	36 V DC ... 75 V DC
Wide-range input	yes
Input voltage range DC	36 V DC ... 75 V DC
Voltage type of supply voltage	DC
Inrush current	< 15 A (typical)
Inrush current integral (I²t)	1.8 A²s
Frequency range DC	0 Hz
Mains buffering time	typ. 15 ms (48 V DC)
Mains buffering time	typ. 20 ms (60 V DC)
Current consumption	0.6 A (48 V DC)
Current consumption	0.5 A (60 V DC)
Typical response time	< 0.5 s
Input fuse	3.15 A (slow-blow, internal)

Efficiency	> 85 % (at 60 V DC and nominal values)

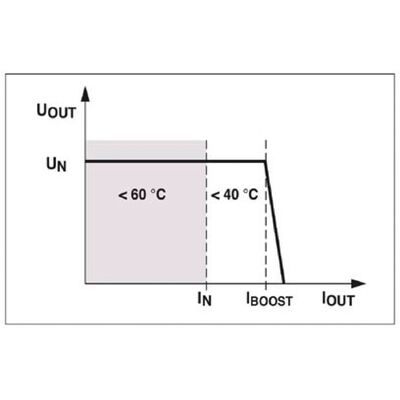

Output characteristic	U/I
Nominal output voltage	24 V DC ±1 %
Setting range of the output voltage (U_Set)	22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (I_N)	1 A (-25 °C ... 60 °C)
Derating	60 °C ... 70 °C (2.5 %/K)
Residual ripple	< 40 mV_PP
Short-circuit-proof	yes
Output power	24 W
Peak switching voltages nominal load	< 50 mV_PP (20 MHz)
Maximum no-load power dissipation	< 1.2 W
Power loss nominal load max.	< 5 W
Connection in parallel	yes, for assembling redundant systems and increasing efficiency
Connection in series	yes
Fuse protection (secondary side)	electronic
Signal: DC OK active
Output description	U_OUT > 21.5 V: High signal
Maximum switching voltage	≤ 24 V DC
Output voltage	+ 24 V (Signal)
Continuous load current	≤ 20 mA
