TRIO-PS/3AC/24DC/5 Phoenix Contact Power supply 2866462 Primary-switched TRIO POWER power supply for DIN rail mounting input 3-phase output 24VDC 5A

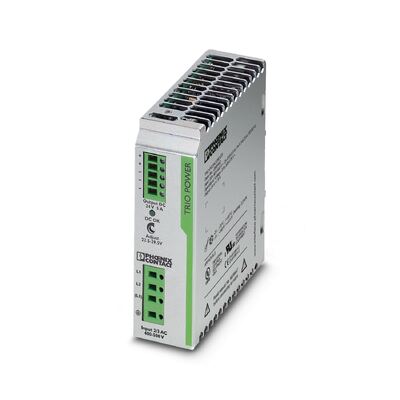

Large Image : TRIO-PS/3AC/24DC/5 Phoenix Contact Power supply 2866462 Primary-switched TRIO POWER power supply for DIN rail mounting input 3-phase output 24VDC 5A

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	TRIO-PS/3AC/24DC/5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

TRIO-PS/3AC/24DC/5 Phoenix Contact Power supply 2866462 Primary-switched TRIO POWER power supply for DIN rail mounting input 3-phase output 24VDC 5A

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact TRIO POWER 24VDC power supply

DIN rail mount 3-phase power supply

5A output industrial power supply

Primary-switched TRIO POWER power supply for DIN rail mounting, input: 3-phase, output: 24 V DC/5 A

TRIO POWER power supplies with standard functionality
TRIO POWER is particularly suited to standard machine production, thanks to 1- and 3-phase versions up to 960 W. The wide-range input and the international approval package enable worldwide use.
The robust metal housing, the high electric strength, and the wide temperature range ensure a high level of power supply reliability.

AC operation
Nominal input voltage range	2x / 3x 400 V AC ... 500 V AC
Input voltage range	3x 320 V AC ... 575 V AC (for 3-phase operation)
Input voltage range	2x 360 V AC ... 575 V AC (for 2-phase operation)
Input voltage range AC	3x 320 V AC ... 575 V AC (for 3-phase operation)
Input voltage range AC	2x 360 V AC ... 575 V AC (for 2-phase operation)
Voltage type of supply voltage	AC
Inrush current	< 15 A
Inrush current integral (I²t)	0.2 A²s
AC frequency range	45 Hz ... 65 Hz
Mains buffering time	> 20 ms (3x 400 V AC)
Mains buffering time	> 30 ms (3x 480 V AC)
Current consumption	3x 0.3 A (400 V AC)
	3x 0.25 A (500 V AC)
	2x 0.65 A (400 V AC)
	2x 0.5 A (500 V AC)
Nominal power consumption	211 VA
Protective circuit	Transient surge protection; Varistor
Power factor (cos phi)	0.64
Typical response time	< 1 s
Permissible backup fuse	B6 B10 B16
Recommended breaker for input protection	6 A ... 16 A (Characteristics B, C, D, K)
Discharge current to PE	< 3.5 mA

Efficiency	89 % (at 400 V AC and nominal values)
Output characteristic	U/I
Nominal output voltage	24 V DC ±1 %
Setting range of the output voltage (U_Set)	22.5 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (I_N)	5 A (U_OUT = 24 V DC)
Derating	55 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance	35 V DC
Protection against overvoltage at the output (OVP)	< 35 V DC
Max. capacitive load	unlimited
Active current limitation	Approx 6 A (in the event of a short-circuit)
Control deviation	< 1 % (change in load, static 10 % ... 90 %)
	< 2 % (change in load, dynamic 10 % ... 90 %)
	< 0.1 % (change in input voltage ±10 %)
Residual ripple	< 30 mV_PP
Output power	120 W
Peak switching voltages nominal load	< 30 mV_PP
Maximum no-load power dissipation	4 W
Power loss nominal load max.	15 W
Rise time	< 2 ms (U_OUT (10 % ... 90 %))
Connection in parallel	yes, for redundancy and increased capacity
Connection in series	yes
