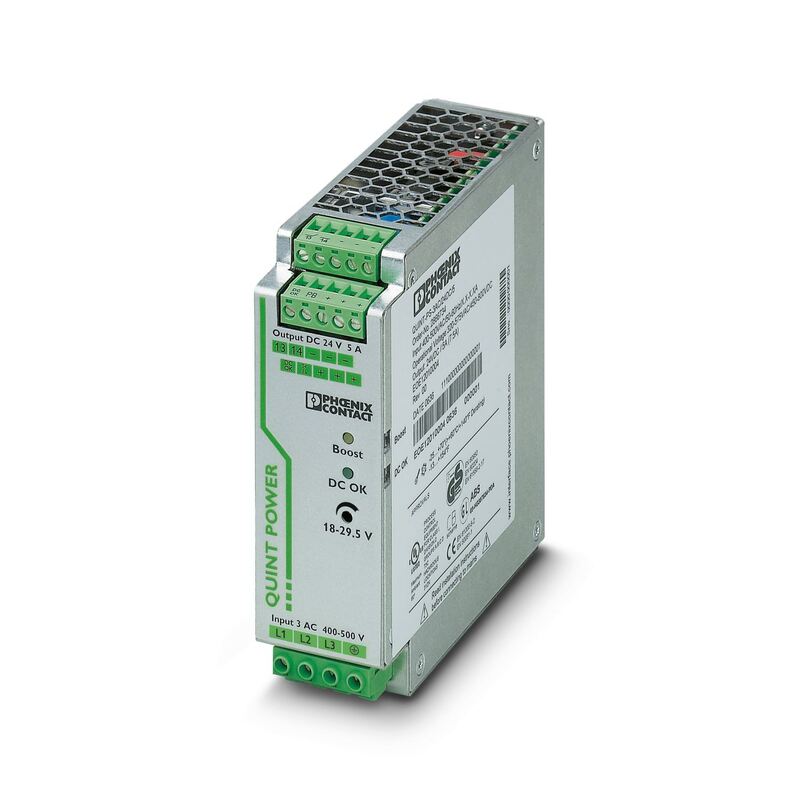

QUINT-PS/3AC/24DC/5 Phoenix Contact Power Supply 2866734

Large Image : QUINT-PS/3AC/24DC/5 Phoenix Contact Power Supply 2866734

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-PS/3AC/24DC/5

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-PS/3AC/24DC/5 Phoenix Contact Power Supply 2866734

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact QUINT-PS power supply

24DC 5A power supply

3AC industrial power supply

Primary-switched power supply unit QUINT POWER, Pluggable screw connection, SFB Technology (Selective Fuse Breaking), input: 3-phase, output: 24 V DC / 5 A

QUINT POWER power supplies with maximum functionality
QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC ... 56 V DC are covered.

AC operation
Nominal input voltage range	3x 400 V AC ... 500 V AC
Input voltage range	3x 320 V AC ... 575 V AC
	2x 360 V AC ... 575 V AC
	450 V DC ... 800 V DC
Voltage type of supply voltage	AC
Inrush current	< 15 A (typical)
Inrush current integral (I²t)	< 1 A²s
AC frequency range	45 Hz ... 65 Hz
Frequency range DC	0 Hz
Mains buffering time	> 20 ms (400 V AC)
Mains buffering time	> 30 ms (500 V AC)
Current consumption	3x 0.8 A (400 V AC)
	3x 0.7 A (500 V AC)
	0.2 A (600 V DC)
Nominal power consumption	268 VA
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Power factor (cos phi)	0.5
Typical response time	< 0.06 s
Permissible backup fuse	B6 B10 B16 AC:
Permissible DC backup fuse	DC: Connect a suitable fuse upstream
Recommended breaker for input protection	6 A ... 16 A (AC: Characteristics B, C, D, K)
Discharge current to PE	< 3.5 mA
DC operation
Voltage type of supply voltage	DC
