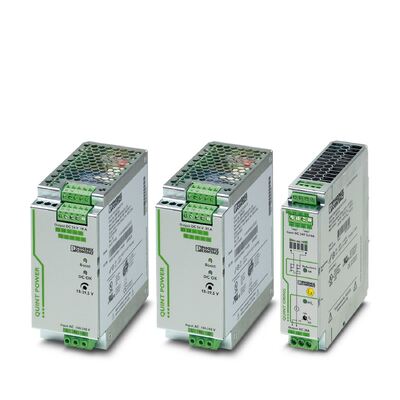

QUINT-PS/1AC/24DC/10 Phoenix Contact Power Supply 2866763

Large Image : QUINT-PS/1AC/24DC/10 Phoenix Contact Power Supply 2866763

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-PS/1AC/24DC/10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

QUINT-PS/1AC/24DC/10 Phoenix Contact Power Supply 2866763

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Highlight:

Phoenix Contact QUINT-PS power supply

24VDC industrial power supply

10A DIN rail power supply

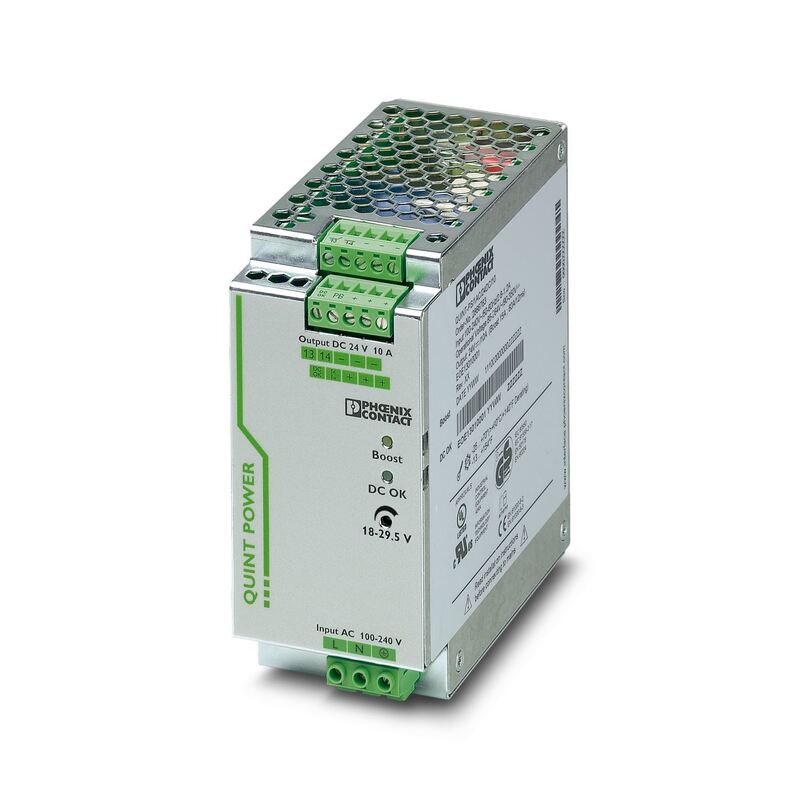

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, SFB Technology (Selective Fuse Breaking), input: 1-phase, output: 24 V DC / 10 A

QUINT POWER power supplies with maximum functionality

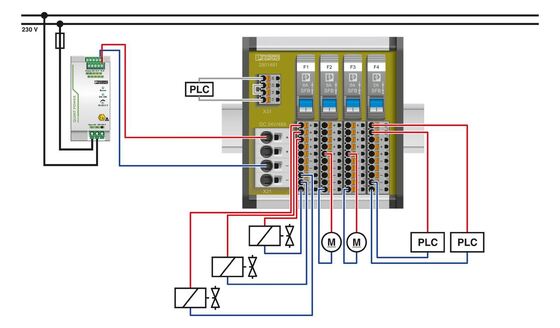

QUINT POWER circuit breakers magnetically and therefore quickly trip at six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.
Reliable starting of heavy loads takes place via the static power reserve POWER BOOST. Thanks to the adjustable voltage, all ranges between 5 V DC ... 56 V DC are covered.

AC operation
Nominal input voltage range	100 V AC ... 240 V AC -15 % / +10 %
Input voltage range	85 V AC ... 264 V AC
Derating I_{Stat. Boost}	< 100 V AC (1 %/V)
Input voltage range DC	110 V DC ... 350 V DC (typ. 90 V DC (UL 508: ≤ 300 V DC))
Electric strength, max.	300 V AC
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	< 15 A
Inrush current integral (I²t)	< 1.5 A²s
Inrush current limitation	15 A
AC frequency range	45 Hz ... 65 Hz
Frequency range DC	0 Hz
Mains buffering time	> 36 ms (120 V AC)
Mains buffering time	> 36 ms (230 V AC)
Current consumption	4 A (100 V AC)
Current consumption	1.7 A (240 V AC)
Nominal power consumption	302 VA
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Power factor (cos phi)	0.85
Typical response time	< 0.15 s
Input fuse	10 A (slow-blow, internal)
Permissible backup fuse	B10 B16 AC:
Permissible DC backup fuse	DC: Connect a suitable fuse upstream
Recommended breaker for input protection	10 A ... 20 A (Characteristics B, C, D, K)
Discharge current to PE	< 3.5 mA
DC operation
Nominal input voltage range	110 V DC ... 250 V DC -10 % ... +40 % (UL 508: ≤ 300 V DC)
Input voltage range	110 V DC ... 350 V DC
Derating I_{Stat. Boost}	< 110 V DC (1 %/V)
Current consumption	3.4 A (110 V DC)
Current consumption	1.5 A (250 V DC)
