STEP-PS/1AC/12DC/3 Phoenix Contact Power Supply 2868570

Large Image : STEP-PS/1AC/12DC/3 Phoenix Contact Power Supply 2868570

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	STEP-PS/1AC/12DC/3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

STEP-PS/1AC/12DC/3 Phoenix Contact Power Supply 2868570

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEX

Application:

Automation Industry

Highlight:

Phoenix Contact 12V DC power supply

STEP-PS AC servo motor power supply

Phoenix Contact 2868570 power supply

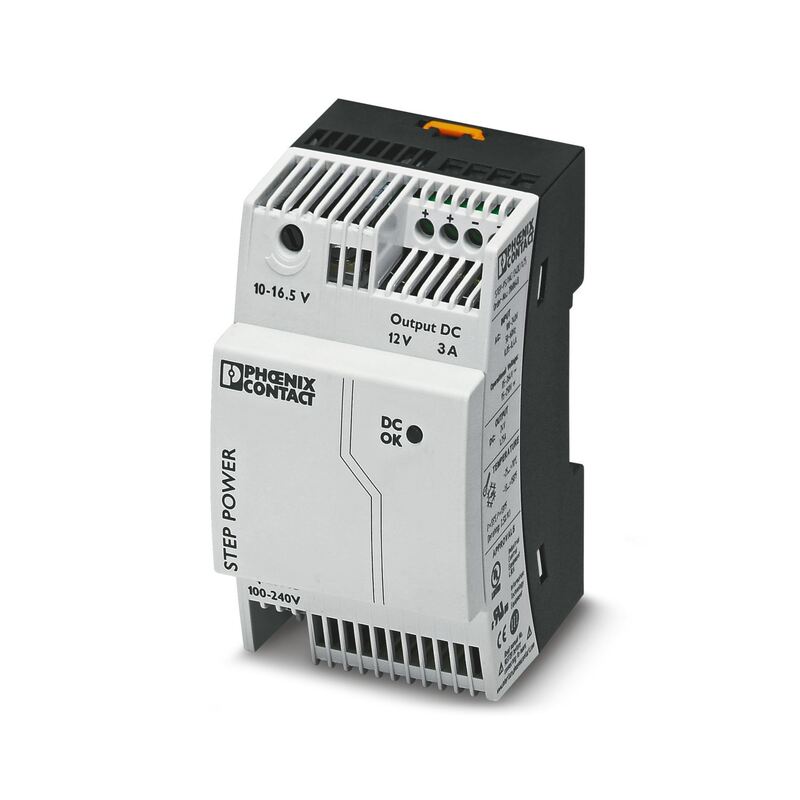

Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 12 V DC/3 A

STEP POWER power supplies for distribution boards
The STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.

AC operation

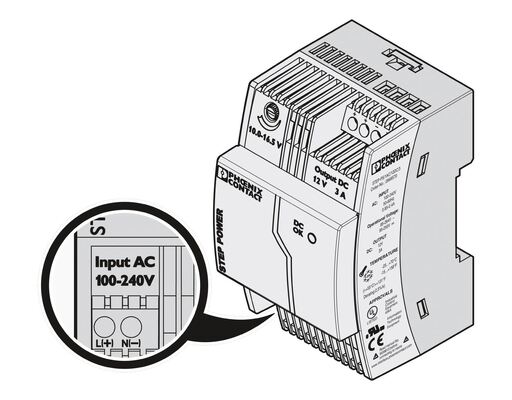

Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Inrush current	< 15 A (typical)
Inrush current integral (I²t)	< 0.6 A²s
AC frequency range	45 Hz ... 65 Hz
Frequency range DC	0 Hz
Mains buffering time	typ. 26 ms (120 V AC)
Mains buffering time	typ. 160 ms (230 V AC)
Current consumption	0.6 A (120 V AC)
Current consumption	0.3 A (230 V AC)
Nominal power consumption	71.7 VA
Protective circuit	Transient surge protection; Varistor
Power factor (cos phi)	0.59
Typical response time	< 0.5 s
Input fuse	3.15 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristics B, C, D, K)
DC operation
Input voltage range	95 V DC ... 250 V DC
Voltage type of supply voltage	DC

Efficiency	> 85 % (for 230 V AC and nominal values)
Output characteristic	U/I
Nominal output voltage	12 V DC
Setting range of the output voltage (U_Set)	10 V DC ... 16.5 V DC (> 12 V DC, constant capacity restricted)
Output current I_max	4.9 A
Nominal output current (I_N)	3 A (-25 °C ... 55 °C)
Nominal output current (I_N)	3.3 A (-25 °C ... 40 °C permanent)
Derating	55 °C ... 70 °C (2.5 %/K)
Feedback voltage resistance	≤ 25 V DC
Protection against overvoltage at the output (OVP)	< 25 V DC
Control deviation	< 1 % (change in load, static 10 % ... 90 %)
	< 2 % (change in load, dynamic 10 % ... 90 %)
	< 0.1 % (change in input voltage ±10 %)
Residual ripple	< 40 mV_PP (20 MHz)
Output power	36 W
Peak switching voltages nominal load	< 35 mV_PP (20 MHz)
Maximum no-load power dissipation	< 0.5 W
Power loss nominal load max.	6.4 W
Rise time	< 0.5 s (U_OUT (10 % ... 90 %))
Connection in parallel	yes, for redundancy and increased capacity
Connection in series	yes
Fuse protection (secondary side)	electronic
