STEP-DIODE/5-24DC/2X5/1X10 Phoenix Contact UPS Redundancy Module 2868606

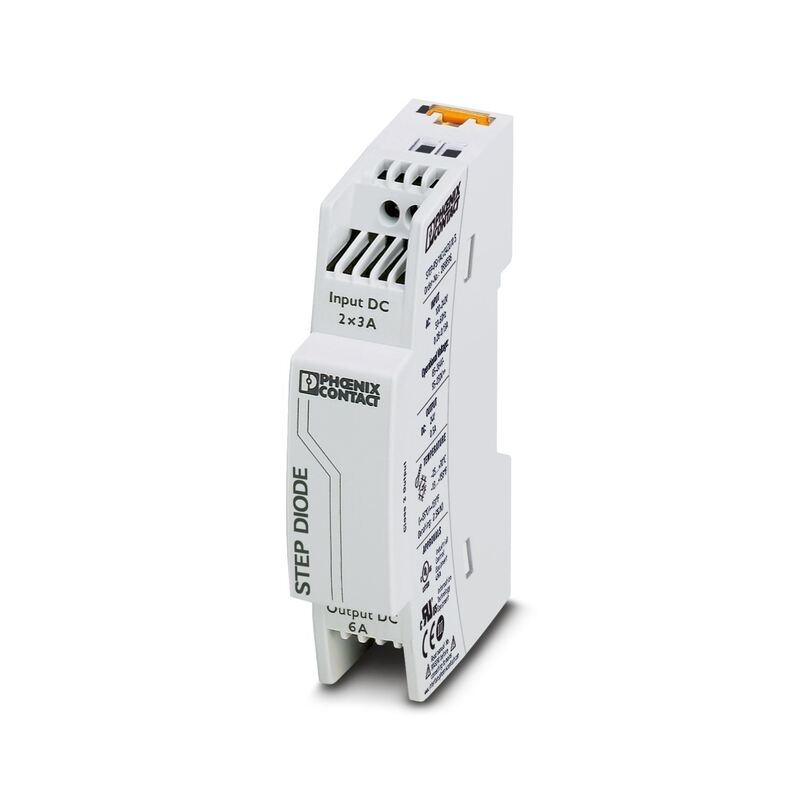

Large Image : STEP-DIODE/5-24DC/2X5/1X10 Phoenix Contact UPS Redundancy Module 2868606

Product Details:

Place of Origin:	Germany
Brand Name:	Phoenix Contact
Model Number:	STEP-DIODE/5-24DC/2X5/1X10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

STEP-DIODE/5-24DC/2X5/1X10 Phoenix Contact UPS Redundancy Module 2868606

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact UPS redundancy module

STEP-DIODE redundancy module 5-24DC

Phoenix Contact power supply module

A safe redundant system is the result of the parallel connection of two power supply units which are decoupled from one another. To further increase system availability, STEP DIODE provides the solution: decoupling with diode.

DC operation
Nominal input voltage range	5 V DC ... 24 V DC
Input voltage range	4.5 V DC ... 30 V DC
Voltage type of supply voltage	DC
Reverse polarity protection	yes, < 60 V
Nominal input current (I_N)	2x 5 A (-25 °C ... 55 °C)
	1x 10 A (-25 °C ... 55 °C)
	2x 5 A (-25 °C ... 55 °C)
	1x 10 A (-25 °C ... 55 °C)
Transient surge protection	Transil diode
Voltage drop, input/output	0.5 V

Efficiency	> 97 %
Efficiency	> 97 %
Nominal output voltage	U_In - 0,5 V
Nominal output current (I_N)	10 A (Increasing power)
Nominal output current (I_N)	5 A (Redundancy)
Derating	55 °C ... 70 °C (2.5 %/K)
Power loss nominal load max.	2.5 W (I_OUT = 5 A)
Connection in series	no
Derating	60 °C ... 70 °C (2.5 %/K)
