STEP-PS/1AC/24DC/3.8/C2LPS Phoenix Contact Power Supply 2868677

Large Image : STEP-PS/1AC/24DC/3.8/C2LPS Phoenix Contact Power Supply 2868677

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	STEP-PS/1AC/24DC/3.8/C2LPS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

STEP-PS/1AC/24DC/3.8/C2LPS Phoenix Contact Power Supply 2868677

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact 24V DC power supply

STEP-PS power supply 3.8A output

Phoenix Contact AC-DC power supply

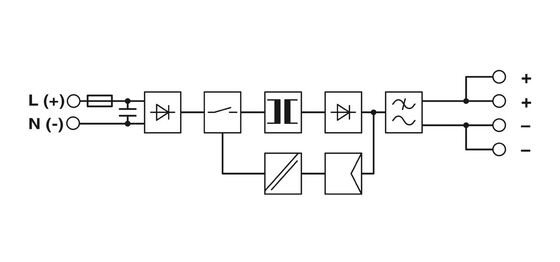

Primary-switched STEP POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/3.8 A

STEP POWER power supplies for distribution boards
The STEP POWER power supply range was developed especially for building automation. The low idling losses and high degree of efficiency ensure maximum energy efficiency. They allow flexible use and can be snapped onto the DIN rail or screwed onto an even surface.

Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Inrush current	< 15 A (typical)
Inrush current integral (I²t)	< 1 A²s
AC frequency range	45 Hz ... 65 Hz
Mains buffering time	typ. 25 ms (120 V AC)
Mains buffering time	typ. 120 ms (230 V AC)
Current consumption	1.3 A (120 V AC)
Current consumption	0.8 A (230 V AC)
Nominal power consumption	175.8 VA
Protective circuit	Transient surge protection; Varistor
Power factor (cos phi)	0.59
Typical response time	< 0.5 s
Input fuse	4 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristics B, C, D, K)
