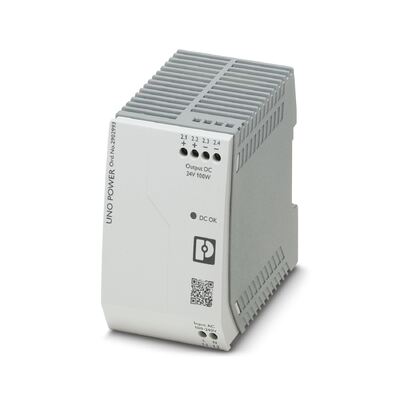

UNO-PS/1AC/24DC/100W Phoenix Contact Power Supply 2902993

Large Image : UNO-PS/1AC/24DC/100W Phoenix Contact Power Supply 2902993

Product Details:

Place of Origin:	Germany
Brand Name:	Phoenix Contact
Model Number:	UNO-PS/1AC/24DC/100W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

UNO-PS/1AC/24DC/100W Phoenix Contact Power Supply 2902993

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

DHL FedEx

Highlight:

Phoenix Contact 24V DC power supply

100W industrial power supply

UNO-PS AC DC converter

Primary-switched power supply unit UNO POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 4.2 A

UNO POWER power supplies with basic functionality
Thanks to their high power density, compact UNO POWER power supplies are the ideal solution for loads up to 240 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency.

AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Input voltage range AC	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Inrush current	< 40 A (typ.)
Inrush current integral (I²t)	< 1.5 A²s (typ.)
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Mains buffering time	> 20 ms (120 V AC)
Mains buffering time	> 100 ms (230 V AC)
Current consumption	typ. 2.1 A (100 V AC)
Current consumption	typ. 0.95 A (240 V AC)
Nominal power consumption	242.6 VA
Protective circuit	Transient surge protection; Varistor
Power factor (cos phi)	0.47
Typical response time	< 1 s
Input fuse	4 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristics B, C, D, K)
