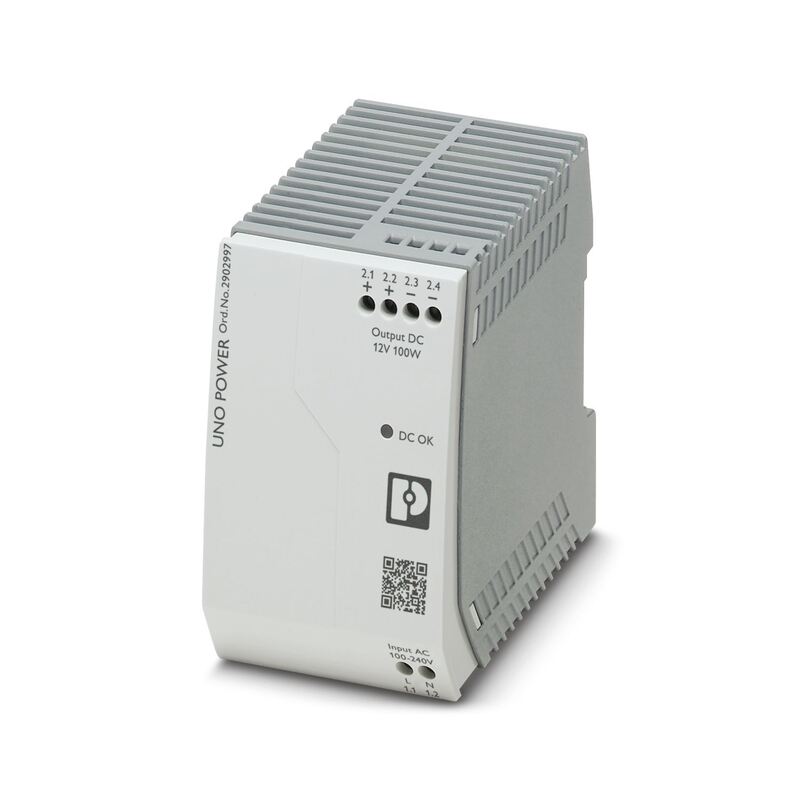

UNO-PS/1AC/12DC/100W Phoenix Contact UPS Power Supply 2902997

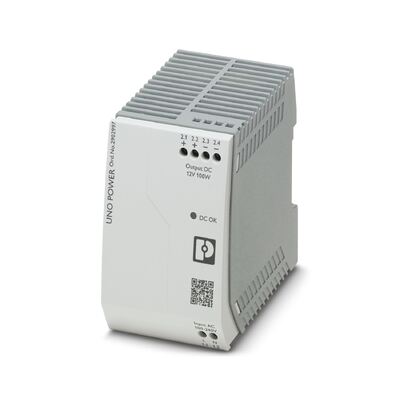

Large Image : UNO-PS/1AC/12DC/100W Phoenix Contact UPS Power Supply 2902997

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	UNO-PS/1AC/12DC/100W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

UNO-PS/1AC/12DC/100W Phoenix Contact UPS Power Supply 2902997

Description

Condition:

Original Brand New

Warranty:

One Year

Application:

Automation Industry

Highlight:

Phoenix Contact UPS power supply 100W

UNO-PS power supply 12DC output

Phoenix Contact power supply with warranty

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 12 V DC/100 W

UNO POWER power supplies with basic functionality
Thanks to their high power density, compact UNO POWER power supplies are the ideal solution for loads up to 240 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency.

AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Input voltage range AC	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Inrush current	< 30 A (typ.)
Inrush current integral (I²t)	< 1.5 A²s (typ.)
AC frequency range	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Mains buffering time	> 20 ms (120 V AC)
Mains buffering time	> 85 ms (230 V AC)
Current consumption	typ. 2.19 A (100 V AC)
Current consumption	typ. 1.13 A (240 V AC)
Nominal power consumption	210.8 VA
Protective circuit	Transient surge protection; Varistor
Power factor (cos phi)	0.53
Typical response time	< 1 s
Input fuse	4 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristics B, C, D, K)
