UNO-PS/1AC/12DC/30W Phoenix Contact UPS Power Supply 2902998

Name: UNO-PS/1AC/12DC/30W Phoenix Contact UPS Power Supply 2902998
Brand: Shenzhen Hengyo Power Technology Co., Limited
SKU: UNO-PS/1AC/12DC/30W
Availability: InStock

All Products

AC Servo Motor
(89)

AC Servo Driver
(58)

Surge Protection Device
(36)

Intrinsic Safety Barrier
(99)

GF Signet
(14)

Tamagawa Encoder
(27)

VFD Inverter
(18)

Electronic Lettering Machine
(7)

Proface HMI
(8)

Keyence Sensors
(44)

Temperature Controller
(11)

Differential Pressure Sensor
(14)

Differential Pressure Switch
(6)

Phoenix Contact Power Supply
(134)

VEGA Level Meter
(7)

P+F Sensors
(6)

Certification

I'm Online Chat Now

UNO-PS/1AC/12DC/30W Phoenix Contact UPS Power Supply 2902998

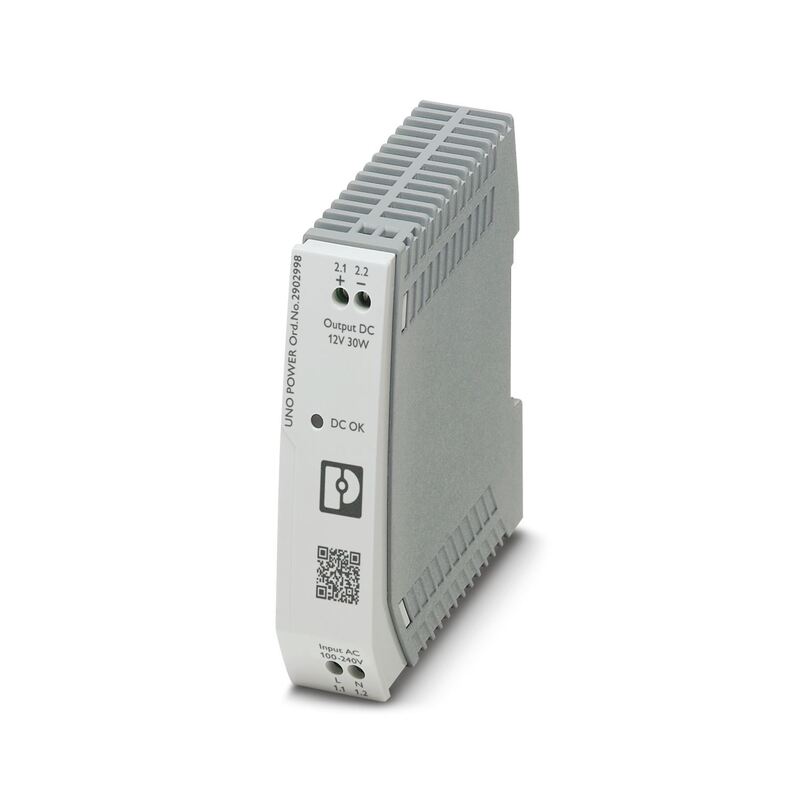

Large Image : UNO-PS/1AC/12DC/30W Phoenix Contact UPS Power Supply 2902998

Product Details:

Place of Origin:	Germany
Brand Name:	Phoenix Contact
Model Number:	UNO-PS/1AC/12DC/30W

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

UNO-PS/1AC/12DC/30W Phoenix Contact UPS Power Supply 2902998

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact UPS power supply 30W

UNO-PS power supply 12DC

Phoenix Contact power supply with warranty

Primary-switched UNO POWER power supply for DIN rail mounting, input: 1-phase, output: 12 V DC/30 W

UNO POWER power supplies with basic functionality
Thanks to their high power density, compact UNO POWER power supplies are the ideal solution for loads up to 240 W, particularly in compact control boxes. The power supply units are available in various performance classes and overall widths. Their high degree of efficiency and low idling losses ensure a high level of energy efficiency.

AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	85 V AC ... 264 V AC
Input voltage range AC	85 V AC ... 264 V AC
Voltage type of supply voltage	AC
Inrush current	< 25 A (typ.)
Inrush current integral (I²t)	< 0.3 A²s (typ.)
AC frequency range	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Mains buffering time	> 20 ms (120 V AC)
Mains buffering time	> 110 ms (230 V AC)
Current consumption	typ. 0.8 A (100 V AC)
Current consumption	typ. 0.4 A (240 V AC)
Nominal power consumption	71.7 VA
Protective circuit	Transient surge protection; Varistor
Power factor (cos phi)	0.48
Typical response time	< 1 s
Input fuse	2 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristics B, C, D, K)
