QUINT4-PS/1AC/24DC/2.5/SC Phoenix Contact Power Supply 2904598

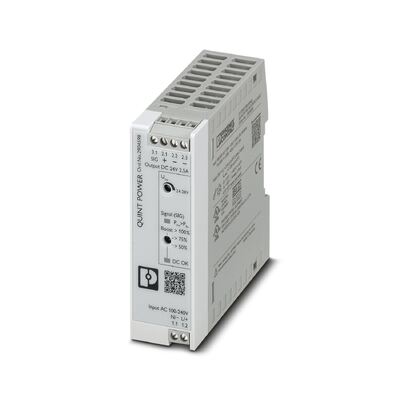

Large Image : QUINT4-PS/1AC/24DC/2.5/SC Phoenix Contact Power Supply 2904598

Product Details:

Place of Origin:	Germany
Brand Name:	Phoenix Contact
Model Number:	QUINT4-PS/1AC/24DC/2.5/SC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT4-PS/1AC/24DC/2.5/SC Phoenix Contact Power Supply 2904598

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact QUINT4 power supply

24V DC industrial power supply

QUINT4-PS power supply with warranty

Primary-switched power supply unit QUINT POWER, Screw connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A. Alternative item: 2909576

In the power range of up to 100 W, QUINT POWER provides superior system availability in the smallest size. Preventative function monitoring and exceptional power reserves are available for applications in the low-power range.

AC operation
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Electric strength, max.	300 V AC 30 s
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	typ. 10 A (at 25 °C)
Inrush current integral (I²t)	< 0.1 A²s
Inrush current limitation	4.3 A (after 1 ms)
Inrush current limitation	< 10 A
Frequency range (f_N)	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (f_N)	16.7 Hz (acc. to EN 50163)
Mains buffering time	typ. 54 ms (120 V AC)
Mains buffering time	typ. 54 ms (230 V AC)
Current consumption	0.85 A (100 V AC)
	0.7 A (120 V AC)
	0.39 A (230 V AC)
	0.37 A (240 V AC)
Nominal power consumption	71 VA
Protective circuit	Transient surge protection; Varistor
Typical response time	500 ms
Input fuse	3.15 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristic B, C or comparable)
Discharge current to PE	< 0.25 mA (264 V AC, 60 Hz)
Discharge current to PE	0.22 mA (264 V AC, 60 Hz)
DC operation
Input voltage range	110 V DC ... 250 V DC -20 % ... +40 %
Voltage type of supply voltage	DC
Current consumption	0.75 A (110 V DC)
Current consumption	0.33 A (250 V DC)
