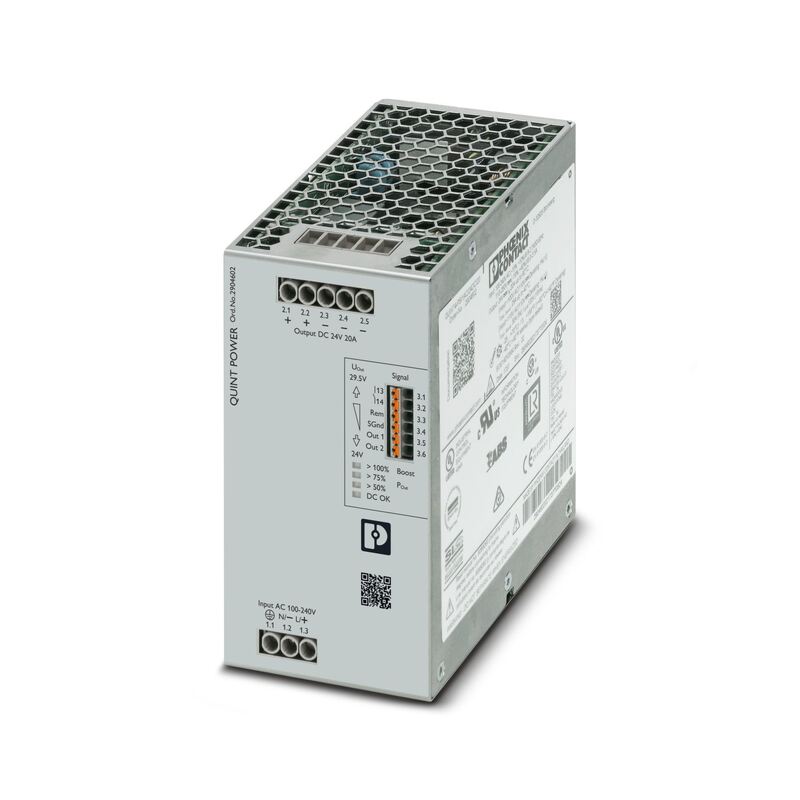

QUINT4-PS/1AC/24DC/10 Phoenix Contact Power Supply 2904601

Large Image : QUINT4-PS/1AC/24DC/10 Phoenix Contact Power Supply 2904601

Product Details:

Place of Origin:	Germany
Brand Name:	Phoenix Contact
Model Number:	QUINT4-PS/1AC/24DC/10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT4-PS/1AC/24DC/10 Phoenix Contact Power Supply 2904601

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Highlight:

Phoenix Contact QUINT4 power supply

24V DC industrial power supply

Phoenix Contact 2904601 power module

Primary-switched QUINT POWER power supply with free choice of output characteristic curve, SFB (selective fuse breaking) technology, and NFC interface, input: 1-phase, output: 24 V DC/10 A

Control input (configurable) Rem	Output power ON/OFF (SLEEP MODE)
Default	Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd)
AC operation
Network type	Star network
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Derating	< 100 V AC (1 %/V)

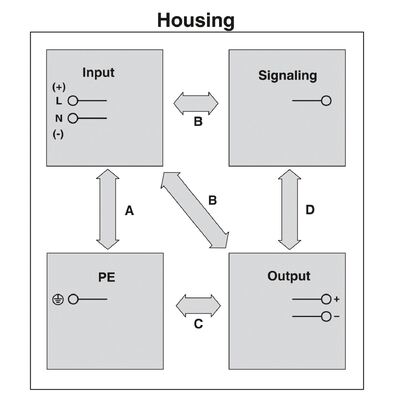

Electric strength, max.	300 V AC 60 s
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	typ. 12 A (at 25 °C)
Inrush current integral (I²t)	< 0.7 A²s
Inrush current limitation	12 A (after 1 ms)
AC frequency range	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (f_N)	50 Hz ... 60 Hz -10 % ... +10 %
Frequency range (f_N)	16.7 Hz (acc. to EN 50163)
Mains buffering time	typ. 42 ms (120 V AC)
Mains buffering time	typ. 44 ms (230 V AC)

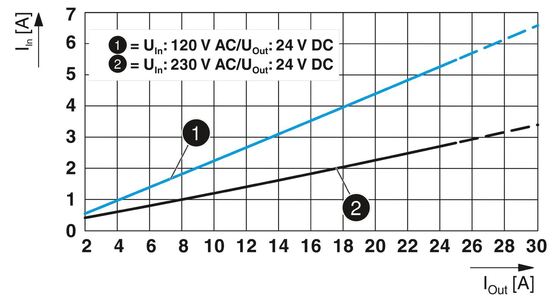

Current consumption	3.4 A (100 V AC)
	2.8 A (120 V AC)
	1.5 A (230 V AC)
	1.5 A (240 V AC)
Nominal power consumption	274 VA
Protective circuit	Transient surge protection; Varistor, gas-filled surge arrester
Power factor (cos phi)	0.94
Switch-on time	< 1 s
Typical response time	300 ms (from SLEEP MODE)
Input fuse	8 A (slow-blow, internal)
Recommended breaker for input protection	10 A ... 16 A (Characteristic B, C, D, K or comparable)
Discharge current to PE	< 3.5 mA
Discharge current to PE	0.7 mA (264 V AC, 60 Hz)
DC operation
Nominal input voltage range	110 V DC ... 250 V DC
Input voltage range	110 V DC ... 250 V DC -18 % ... +40 %
Derating	< 110 V DC (1 %/V)
Voltage type of supply voltage	DC
Current consumption	3 A (110 V DC)
Current consumption	1.3 A (250 V DC)
