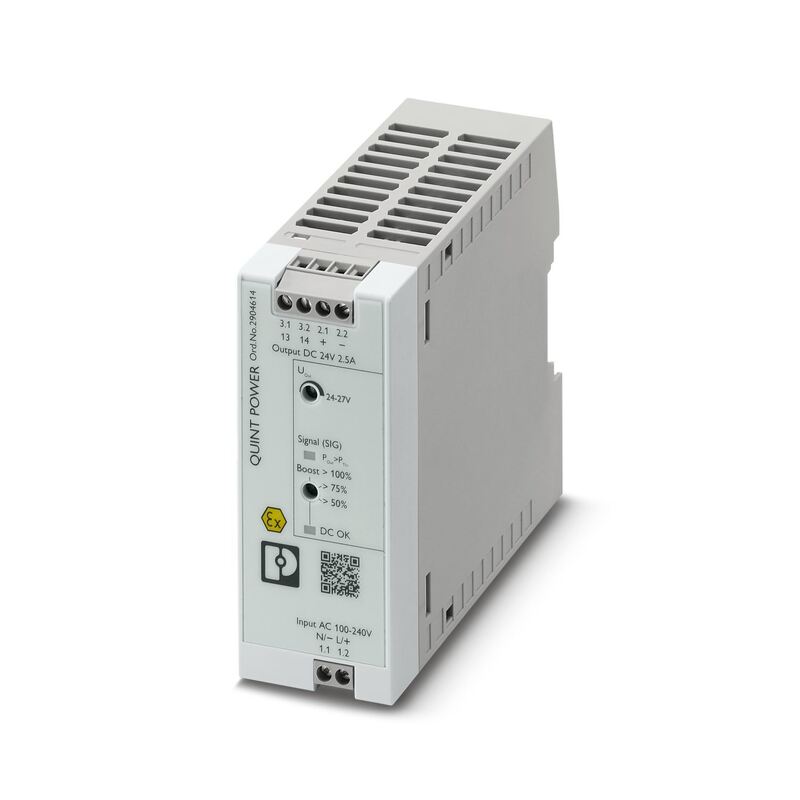

QUINT4-SYS-PS/1AC/24DC/2.5/SC Phoenix Contact Power Supply 2904614

Large Image : QUINT4-SYS-PS/1AC/24DC/2.5/SC Phoenix Contact Power Supply 2904614

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT4-SYS-PS/1AC/24DC/2.5/SC

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT4-SYS-PS/1AC/24DC/2.5/SC Phoenix Contact Power Supply 2904614

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact QUINT4 power supply

24DC 2.5A power supply

industrial power supply with warranty

Primary-switched power supply, QUINT POWER, screw connection, DIN rail mounting, supply of devices possible via the TBUS DIN rail connector, protective coating, input: single-phase, output: 24 V DC/2.5 A

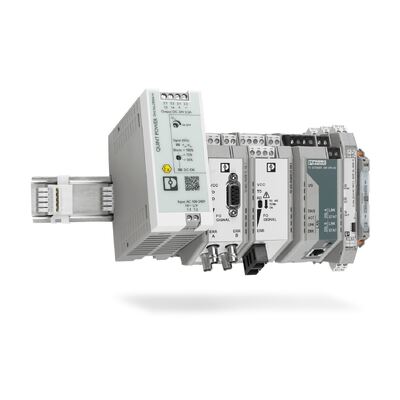

The QUINT POWER power supply has been specially developed for supplying power to compatible Phoenix Contact products via the T-bus DIN rail connector. Furthermore, it can be directly latched onto the DIN rail. The device features a protective coating and has IECEx, ATEX,
and HazLoc approvals. The OVP (overvoltage protection) of <30 V DC protects your system against voltage increases. In the event of an error, the output is switched off to protect the loads against overvoltages. The output circuit is decoupled by a MOSFET.

AC operation
Nominal input voltage range	100 V AC ... 240 V AC
Input voltage range	100 V AC ... 240 V AC -15 % ... +10 %
Electric strength, max.	300 V AC 30 s
Typical national grid voltage	120 V AC
Typical national grid voltage	230 V AC
Voltage type of supply voltage	AC
Inrush current	typ. 10 A (at 25 °C)
Inrush current integral (I²t)	typ. 0.1 A²s
Inrush current limitation	10 A
Frequency range (f_N)	50 Hz ... 60 Hz ±10 %
Frequency range (f_N)	16.7 Hz (acc. to EN 50163)
Mains buffering time	typ. 31 ms (120 V AC)
Mains buffering time	typ. 31 ms (230 V AC)
Current consumption	0.85 A (100 V AC)
	0.7 A (120 V AC)
	0.39 A (230 V AC)
	0.37 A (240 V AC)
Nominal power consumption	69 VA
Protective circuit	Transient surge protection; Varistor
Typical response time	500 ms
Input fuse	4 A (slow-blow, internal)
Recommended breaker for input protection	6 A ... 16 A (Characteristic B, C, D, K or comparable)
Discharge current to PE	< 0.25 mA (264 V AC, 60 Hz)
Discharge current to PE	< 0.22 mA
DC operation
Input voltage range	110 V DC ... 250 V DC -20 % ... +40 %
Voltage type of supply voltage	DC
Current consumption	0.75 A (110 V DC)
Current consumption	0.33 A (250 V DC)
