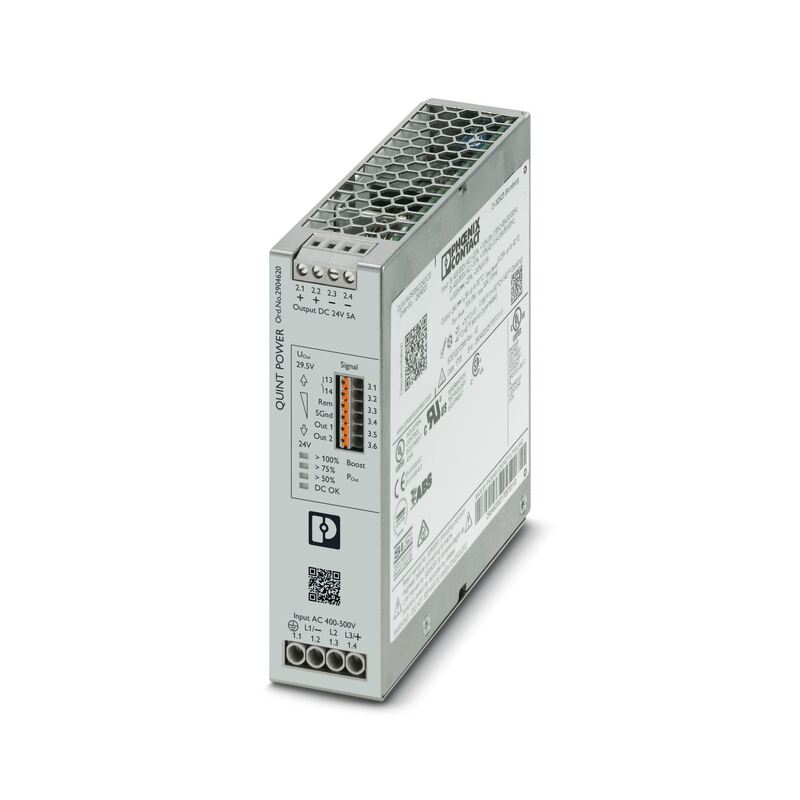

The fourth generation of the high-performance QUINT POWER power supplies ensures superior system availability by means of new functions. Signaling thresholds and characteristic curves can be individually adjusted via the NFC interface.
The unique SFB technology and preventive function monitoring of the QUINT POWER power supply increase the availability of your application.
| Control input (configurable) Rem | Output power ON/OFF (SLEEP MODE) |
| Default | Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd) |
| AC operation | |
| Network type | Star network |
| Nominal input voltage range | 3x 400 V AC ... 500 V AC |
| 2x 400 V AC ... 500 V AC | |
| Input voltage range | 3x 400 V AC ... 500 V AC -20 % ... +10 % |
| 2x 400 V AC ... 500 V AC -10 % ... +10 % | |
| Typical national grid voltage | 400 V AC |
| 480 V AC | |
| Voltage type of supply voltage | AC |
| Inrush current | typ. 11 A (at 25 °C) |
| Inrush current integral (I2t) | < 0.2 A2s |
| Inrush current limitation | 11 A (after 1 ms) |
| AC frequency range | 50 Hz ... 60 Hz -10 % ... +10 % |
| Frequency range (fN) | 50 Hz ... 60 Hz -10 % ... +10 % |
| Mains buffering time | typ. 34 ms (3x 400 V AC) |
| typ. 50 ms (3x 480 V AC) | |
| Current consumption | 3x 0.53 A (400 V AC) |
| 3x 0.44 A (480 V AC) | |
| 2x 0.9 A (400 V AC) | |
| 2x 0.66 A (480 V AC) | |
| 3x 0.45 A (500 V AC) | |
| 2x 0.8 A (500 V AC) | |
| Nominal power consumption | 283 VA |
| Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester |
| Power factor (cos phi) | 0.48 |
| Switch-on time | < 500 ms |
| Typical response time | 300 ms (from SLEEP MODE) |
| Input fuse | 2 A (slow-blow, internal) |
| Recommended breaker for input protection | 3x 6 A (Characteristic B, C or comparable) |
| Recommended fuse for input protection | ≥ 300 V AC |
| Discharge current to PE | < 3.5 mA |
| 1 mA (550 V AC, 60 Hz) | |
| DC operation | |
| Nominal input voltage range | ± 300 V DC |
| Input voltage range | ± 260 V DC ... 300 V DC -25 % ... +30 % |
| 520 V DC ... 600 V DC -25 % ... +30 % (mid-point earthed) | |
| Voltage type of supply voltage | DC |
| Inrush current limitation | ≤ 11 A (after 1 ms) |
| Frequency range (fN) | 0 Hz (DC) |
| Current consumption | 0.3 A (±300 V DC) |
| Recommended breaker for input protection | 1x 6 A (10 x 38 mm, 30 kA L/R = 2 ms) |
| Recommended fuse for input protection | ≥ 1000 V DC |
