QUINT-PS/96-110DC/24DC/10 Phoenix Contact DC/DC converter 2905010

Name: QUINT-PS/96-110DC/24DC/10 Phoenix Contact DC/DC converter 2905010
Brand: Shenzhen Hengyo Power Technology Co., Limited
SKU: QUINT-PS/96-110DC/24DC/10
Availability: InStock

All Products

AC Servo Motor
(89)

AC Servo Driver
(58)

Surge Protection Device
(36)

Intrinsic Safety Barrier
(99)

GF Signet
(14)

Tamagawa Encoder
(27)

VFD Inverter
(18)

Electronic Lettering Machine
(7)

Proface HMI
(8)

Keyence Sensors
(44)

Temperature Controller
(11)

Differential Pressure Sensor
(14)

Differential Pressure Switch
(6)

Phoenix Contact Power Supply
(134)

VEGA Level Meter
(7)

P+F Sensors
(6)

Certification

I'm Online Chat Now

QUINT-PS/96-110DC/24DC/10 Phoenix Contact DC/DC converter 2905010

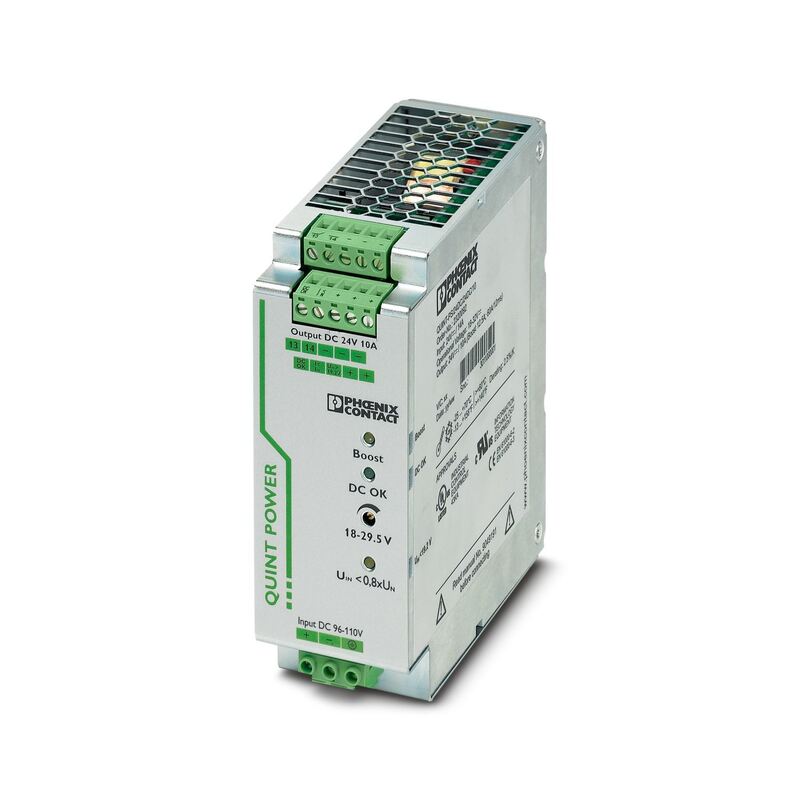

Large Image : QUINT-PS/96-110DC/24DC/10 Phoenix Contact DC/DC converter 2905010

Product Details:

Place of Origin:	Thailand
Brand Name:	Phoenix Contact
Model Number:	QUINT-PS/96-110DC/24DC/10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T
Supply Ability:	500pcs/month

Contact Now Chat Now

QUINT-PS/96-110DC/24DC/10 Phoenix Contact DC/DC converter 2905010

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Automation Industry

Highlight:

Phoenix Contact DC/DC converter 96-110V input

24V DC power supply with warranty

QUINT-PS industrial power converter

Primary-switched QUINT DC/DC converter with wide range input for DIN rail mounting with SFB (selective fuse breaking) technology, input: 96 - 110 V DC, output: 24 V DC/10 A

QUINT DC/DC converter with maximum functionality
DC/DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by means of electrical isolation.
QUINT DC/DC converters magnetically and therefore quickly trip circuit breakers with six times the nominal current, for selective and therefore cost-effective system protection. The high level of system availability is additionally ensured, thanks to preventive function monitoring, as it reports critical operating states before errors occur.

DC operation
Nominal input voltage range	96 V DC ... 110 V DC
Input voltage range	67.2 V DC ... 154 V DC
Wide-range input	yes
Input voltage range DC	67.2 V DC ... 154 V DC
Voltage type of supply voltage	DC
Inrush current	< 10 A (typical)
Inrush current integral (I²t)	0.37 A²s
Mains buffering time	typ. 10 ms (96 V DC)
Current consumption	3.5 A (96 V DC)
Current consumption	3.1 A (110 V DC)
Reverse polarity protection	, ≤ 154 V DC
Nominal power consumption	264 VA
Protective circuit	Transient surge protection; Varistor
Input fuse	10 A 150 V DC (internal (device protection))
